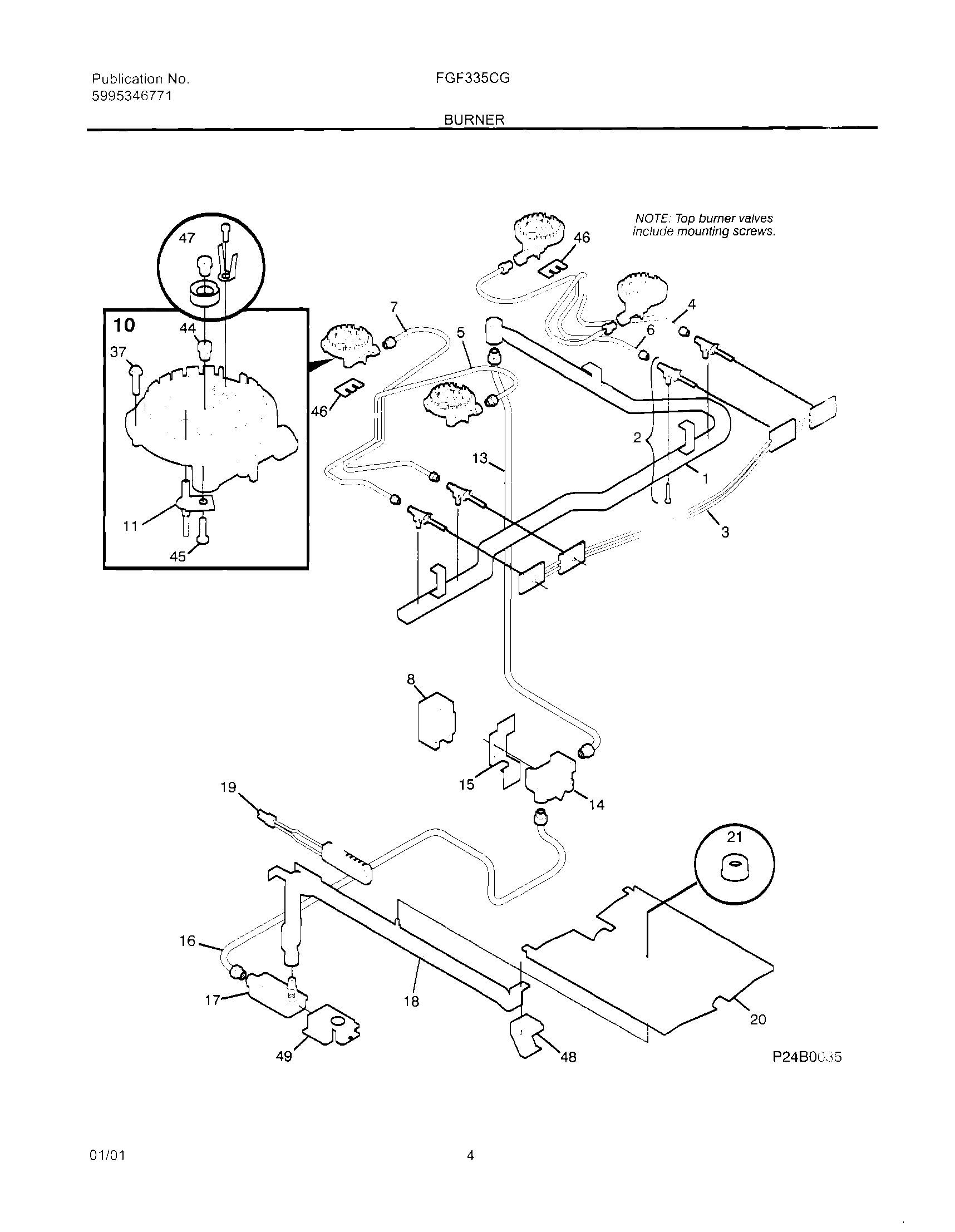

FGF335CGSJ 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	5303271648 Frigidaire Oven Screw
NI	316134300 Frigidaire Oven Screw
NI	HARNESS-WIRING, MODULE/IGNITER (NON-ILLUSTRATED)
1	WCI 316134501
2	WCI 316134100
3	WCI 316001827
4	WCI 316059612
5	316059613 Frigidaire Oven Tube-LF
6	WCI 316059614
7	316059615 Frigidaire Oven Tube
8	5304505695 Frigidaire Oven Module
10	BURNER ASSY-TOP, SEALED, (4), INCLUDES, 11, 37, 44, 45,
11	316011200 Frigidaire Oven Top Burner Igniter
13	WCI 316065005
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	316065006 Frigidaire Tube P1
17	3203459 Frigidaire Oven Range Dual Gas Safety Valve
18	316114300 Frigidaire Oven Burner
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	WCI 3203265
21	5303013272 Frigidaire Oven Nut
37	316069301 Frigidaire Oven Burner Mounting Primary Screw
44	ORIFICE-TOP BURNER, (4)
45	WCI 316011100
46	WCI 316074700
47	WCI 5303286386
48	WCI 3018603
49	BRKT.-VALVE
