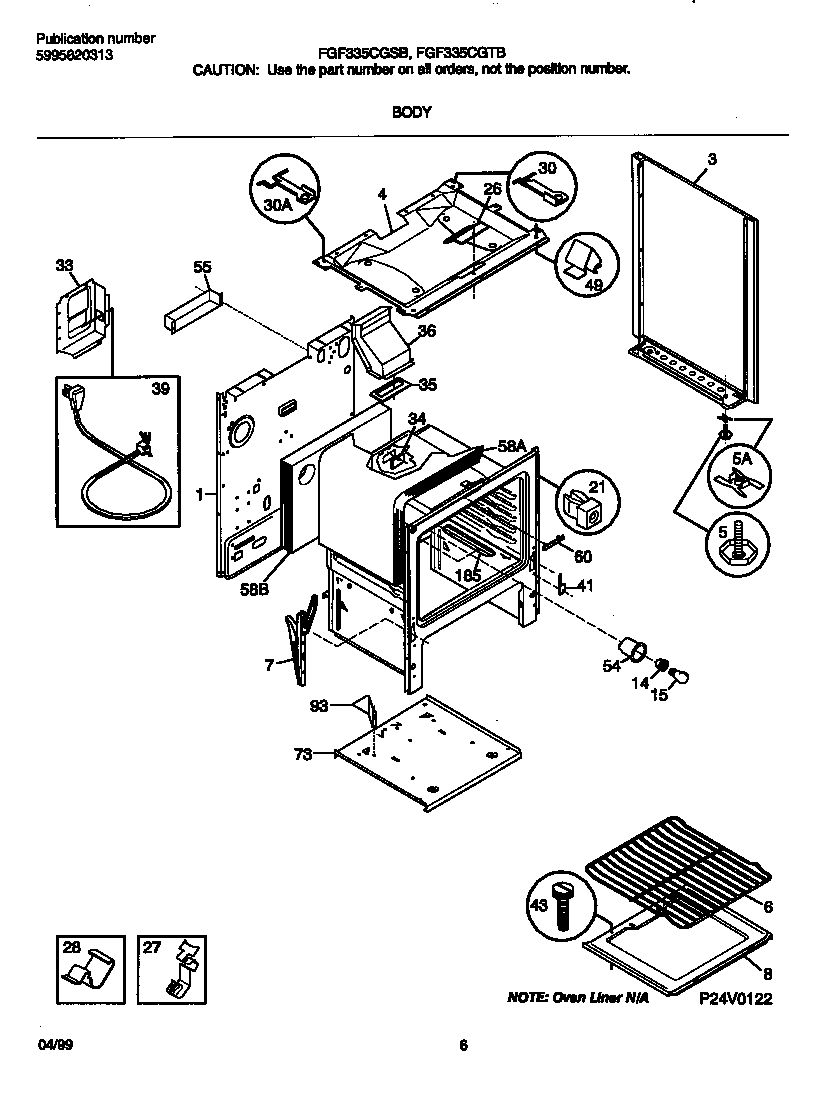

FGF335CGTB 04 – BODY

FGF335CGTB 04 – BODY

Written by

in

FGF335CGTB 04 – BODY

Products

PositionProduct
*33091PANEL-BODYSIDE,ALMOND ,LH
*33095SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*33094316064600 Frigidaire Oven Support
*33089Screw,cup pt ,8-18 x 0.375 ,chrome
*33093316116000 Frigidaire Screw
*33092WCI 3934058
1WCI 316029412
3WCI 316081030
4WCI 316011914
5SCREW-LEVELING
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8BTTM-OVEN
9PAN-BROILER
10WCI 5303131356
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
30WCI 316059201
30WCI 316059200
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 5303273108
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
493205821 Frigidaire Clip
54WCI 5303271606
55WCI 5303289358
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
73WCI 316109901
93WCI 316110000
185316112900 Frigidaire SHIELD
