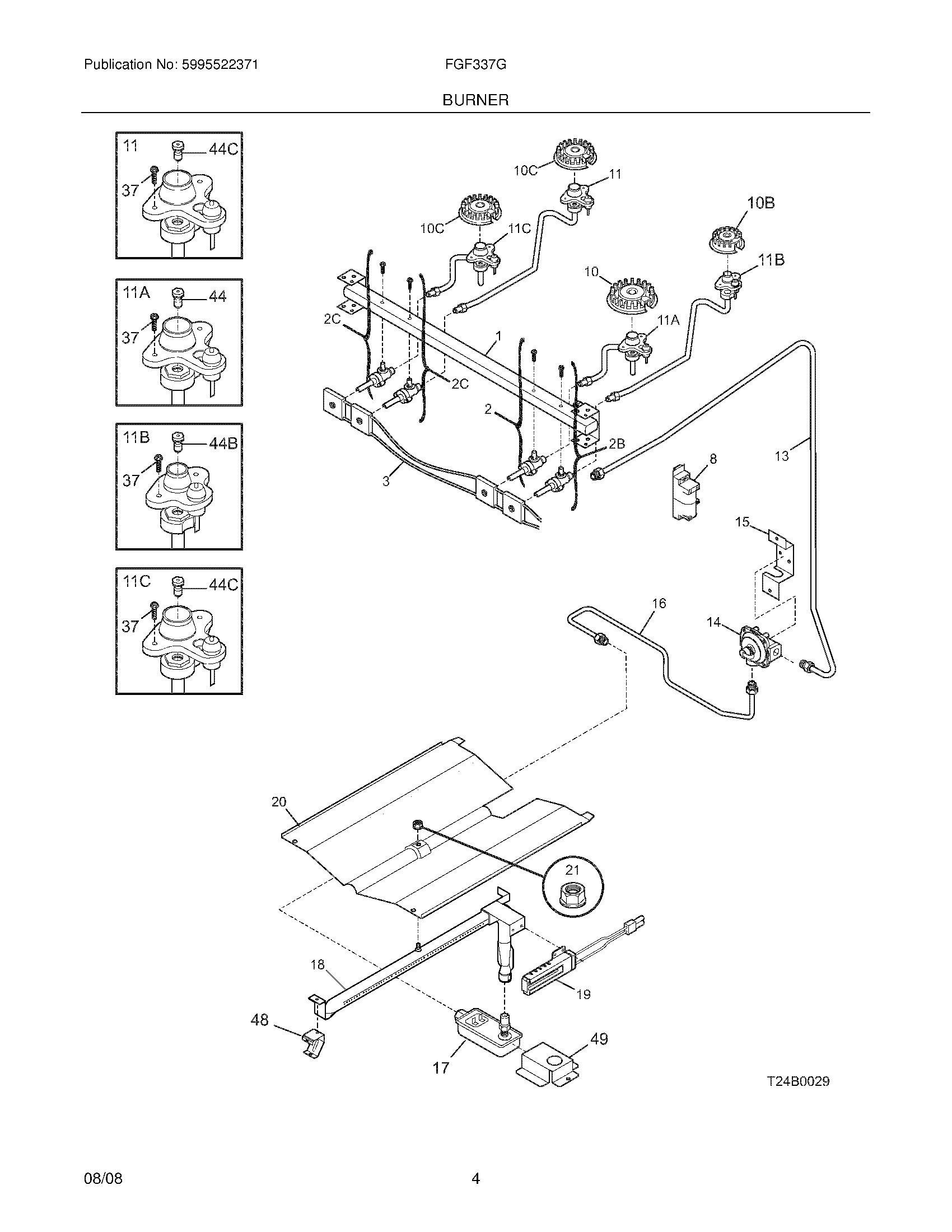

FGF337GSC 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	316215600 Frigidaire Oven Screw
NI	5303271648 Frigidaire Oven Screw
NI	WIRING HARNESS,IGNITOR MODU
1	316417900 Frigidaire Pipe Manifold
2B	316536003 Frigidaire Valve-Top Burner
2	316536001 Frigidaire Oven Valve
2C	316536000 Frigidaire Top Burner Valve
3	WCI 316219016
8	5304505695 Frigidaire Oven Module
10	WCI 316212300
10C	316212400 Frigidaire Oven Primary Burner
10B	WCI 316206400
11B	316237707 Frigidaire Igniter/Orifice Assembly
11A	316237801 Frigidaire Range Igniter Orifice Assembly
11	316237704 Frigidaire Igniter/Orifice Assembly
11C	316237805 Frigidaire Orifice Assembly Igniter
13	WCI 316447100
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	316065006 Frigidaire Tube P1
17	3203459 Frigidaire Oven Range Dual Gas Safety Valve
18	316114300 Frigidaire Oven Burner
19	5304509706 Frigidaire Range Oven Igniter
20	WCI 316496001
21	5303013272 Frigidaire Oven Nut
37	316240600 Frigidaire Igniter Mounting Screw
44	316237901 Frigidaire Oven Orifice
44C	316237902 Frigidaire Orifice Top Burner
44B	WCI 316237903
48	WCI 3018603
49	WCI 316416300
