FGF343BADB 05 – TOP/DRAWER

FGF343BADB 05 – TOP/DRAWER

Written by

in

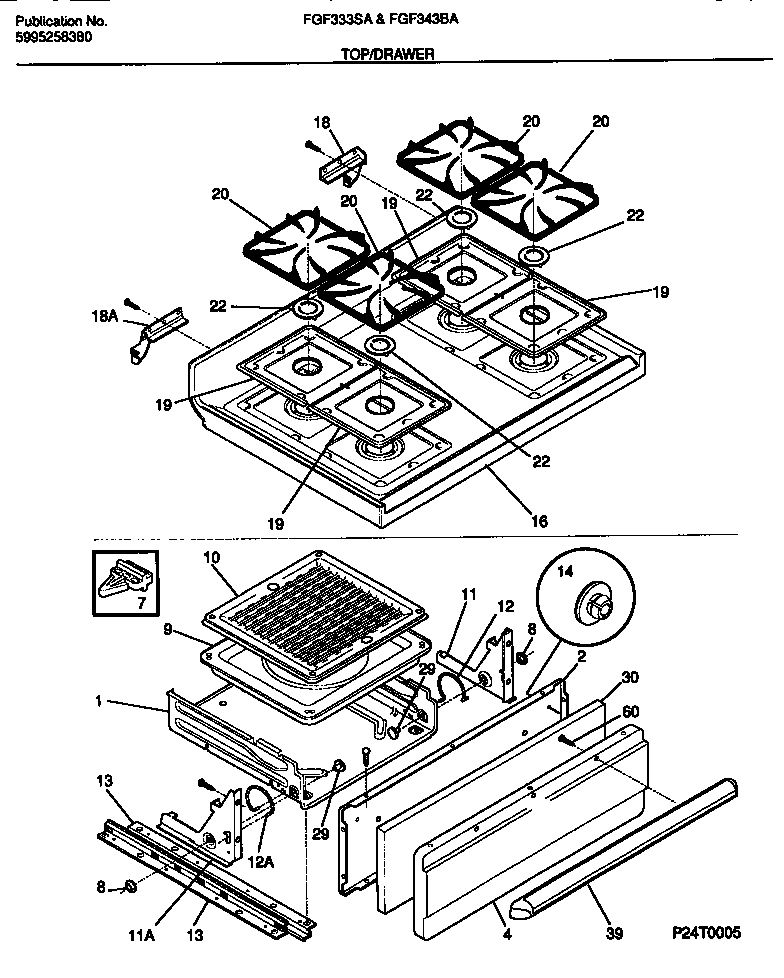

FGF343BADB 05 – TOP/DRAWER

Products

PositionProduct
1DRAWER-BROILER
2WCI 3202803
4WCI 316056206
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, RH
11ABRACKET-BROILER HINGE, LH
12AWCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
16WCI 5303301547
18HINGE-MAIN TOP (RH)
18AHINGE-MAIN TOP (LH)
18B131243700 Frigidaire Screw
19WCI 316011401
20WCI 316025400
22WCI 316011001
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39WCI 316026100
60WCI 5303288574
