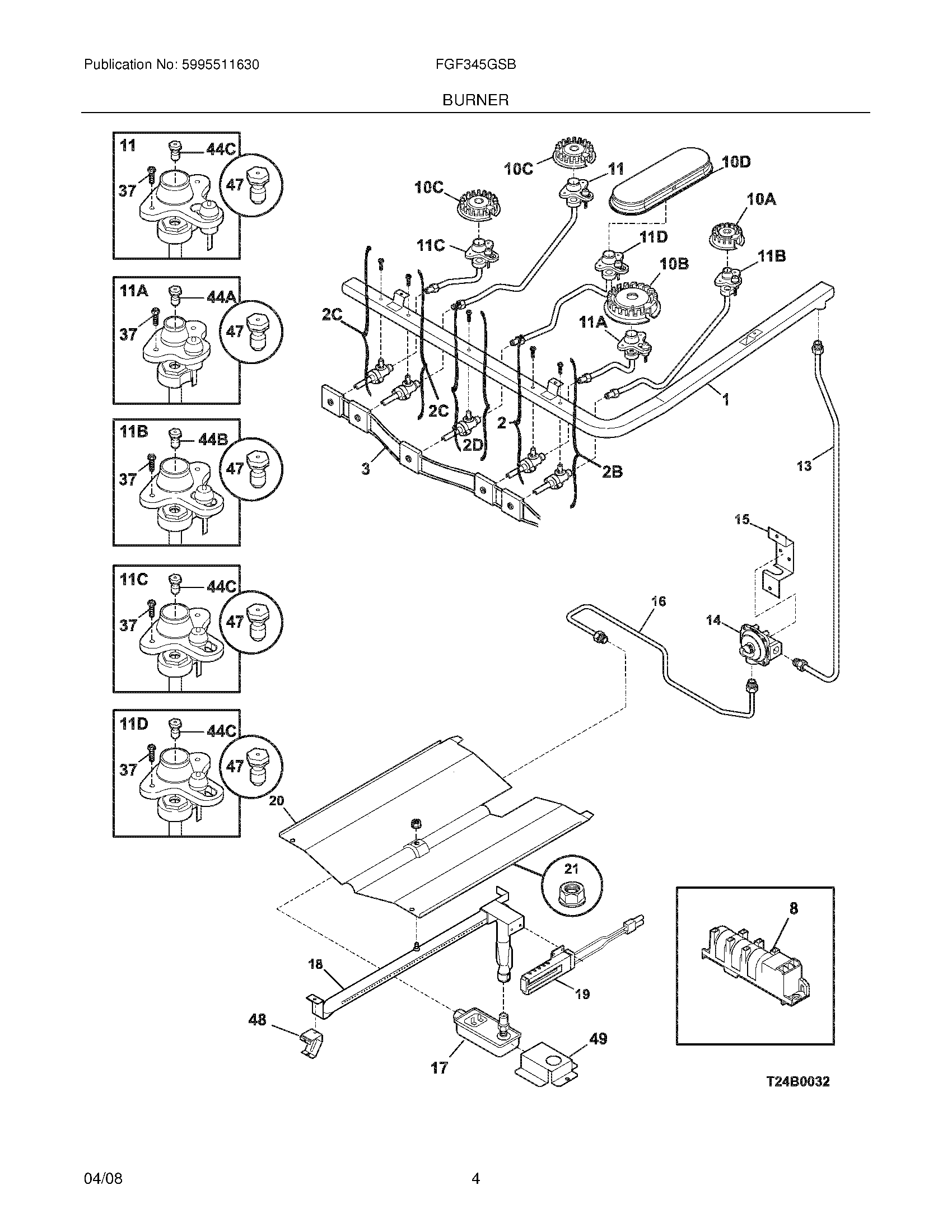

FGF345GSB 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	316237901 Frigidaire Oven Orifice
NI	WCI 316212300
NI	316248105 Frigidaire Instructions /Lp Conversion Kit Ns
NI	WCI 316253702
NI	WCI 316064103
NI	316215600 Frigidaire Oven Screw
NI	5303271648 Frigidaire Oven Screw
1	WCI 316219501
2	5303935232 Frigidaire Oven Valve
2D	5303935259 Frigidaire Oven Valve
2C	WCI 5303935234
3	WCI 316219006
8	SPARK MODULE
10C	316212400 Frigidaire Oven Primary Burner
10D	WCI 316532001
11B	316237704 Frigidaire Igniter/Orifice Assembly
11D	316532601 Frigidaire Igniter/Orifice Assembly
11C	316237805 Frigidaire Orifice Assembly Igniter
11A	WCI 316430501
13	WCI 316207000
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	316065006 Frigidaire Tube P1
17	3203459 Frigidaire Oven Range Dual Gas Safety Valve
18	316114300 Frigidaire Oven Burner
19	5304509706 Frigidaire Range Oven Igniter
20	WCI 316496001
21	5303013272 Frigidaire Oven Nut
37	316240600 Frigidaire Igniter Mounting Screw
44C	316237902 Frigidaire Orifice Top Burner
47	GRLP3 Frigidaire Oven LP Conversion Kit
48	WCI 3018603
49	WCI 316416300
