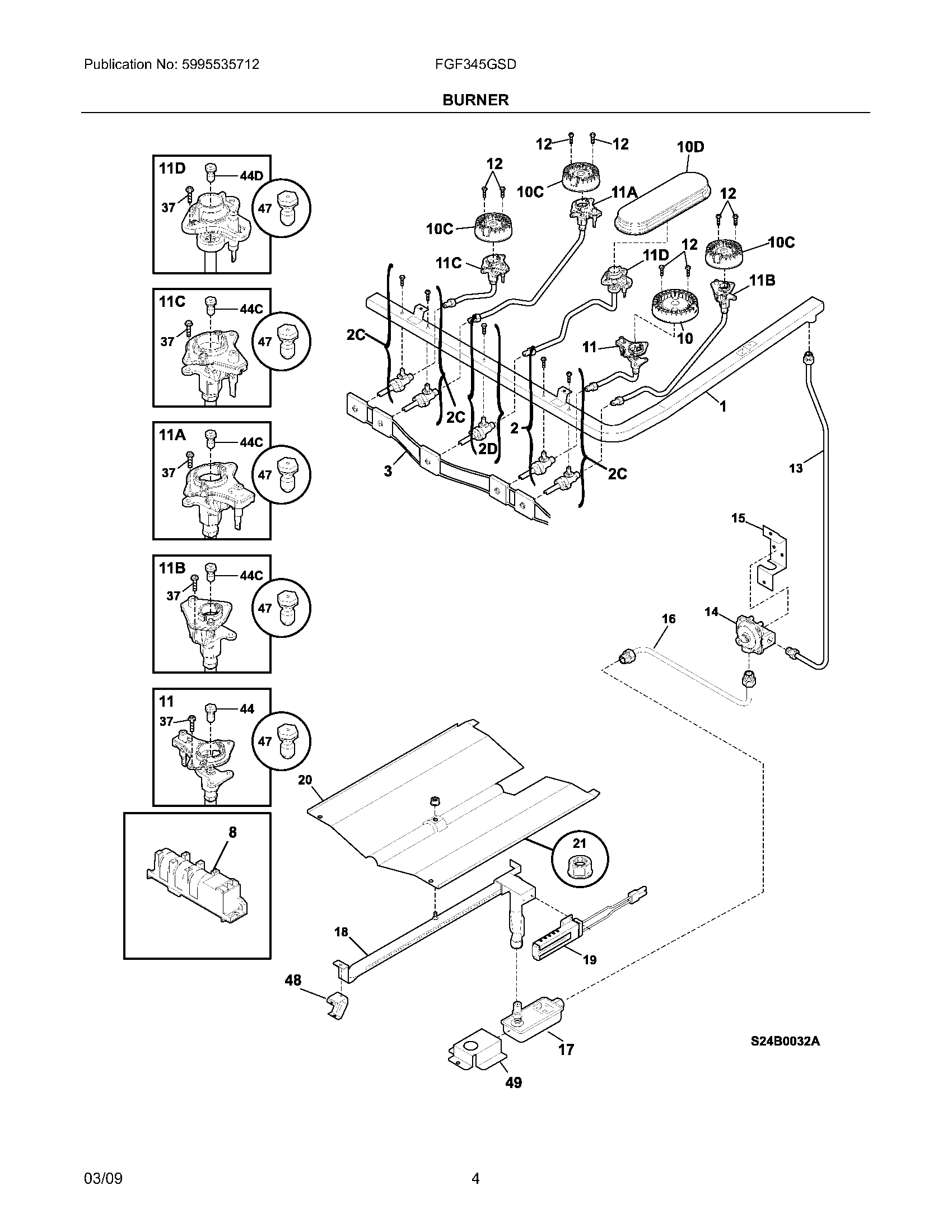

FGF345GSD 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	316215600 Frigidaire Oven Screw
NI	316417518 Frigidaire Instructions
NI	5303271648 Frigidaire Oven Screw
NI	WCI 316253702
NI	WCI 316064103
1	WCI 316219501
2	5303935306 Frigidaire Oven Valve
2C	5303935305 Frigidaire Oven Valve
2D	5303935309 Frigidaire Top Burner Valve
3	WCI 316219018
8	SPARK MODULE
10D	WCI 316532001
10C	316558300 Frigidaire Oven 9.5L Sealed Burner
10	316438000 Frigidaire Sealed Burner 12K Assembly
11A	316536600 Frigidaire Igniter Assembly
11	WCI 316449401
11D	316532601 Frigidaire Igniter/Orifice Assembly
11B	WCI 316449301
11C	316536602 Frigidaire Oven Igniter/Orifice Assembly
12	WCI 316529700
13	WCI 316207000
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	316065006 Frigidaire Tube P1
17	3203459 Frigidaire Oven Range Dual Gas Safety Valve
18	316114300 Frigidaire Oven Burner
19	5304509706 Frigidaire Range Oven Igniter
20	WCI 316496001
21	5303013272 Frigidaire Oven Nut
37	316240600 Frigidaire Igniter Mounting Screw
44C	316527500 Frigidaire Oven Burner Orifice
44	316527502 Frigidaire Oven Orifice
44D	316237902 Frigidaire Orifice Top Burner
47	GRLP3 Frigidaire Oven LP Conversion Kit
48	WCI 3018603
49	WCI 316416300
