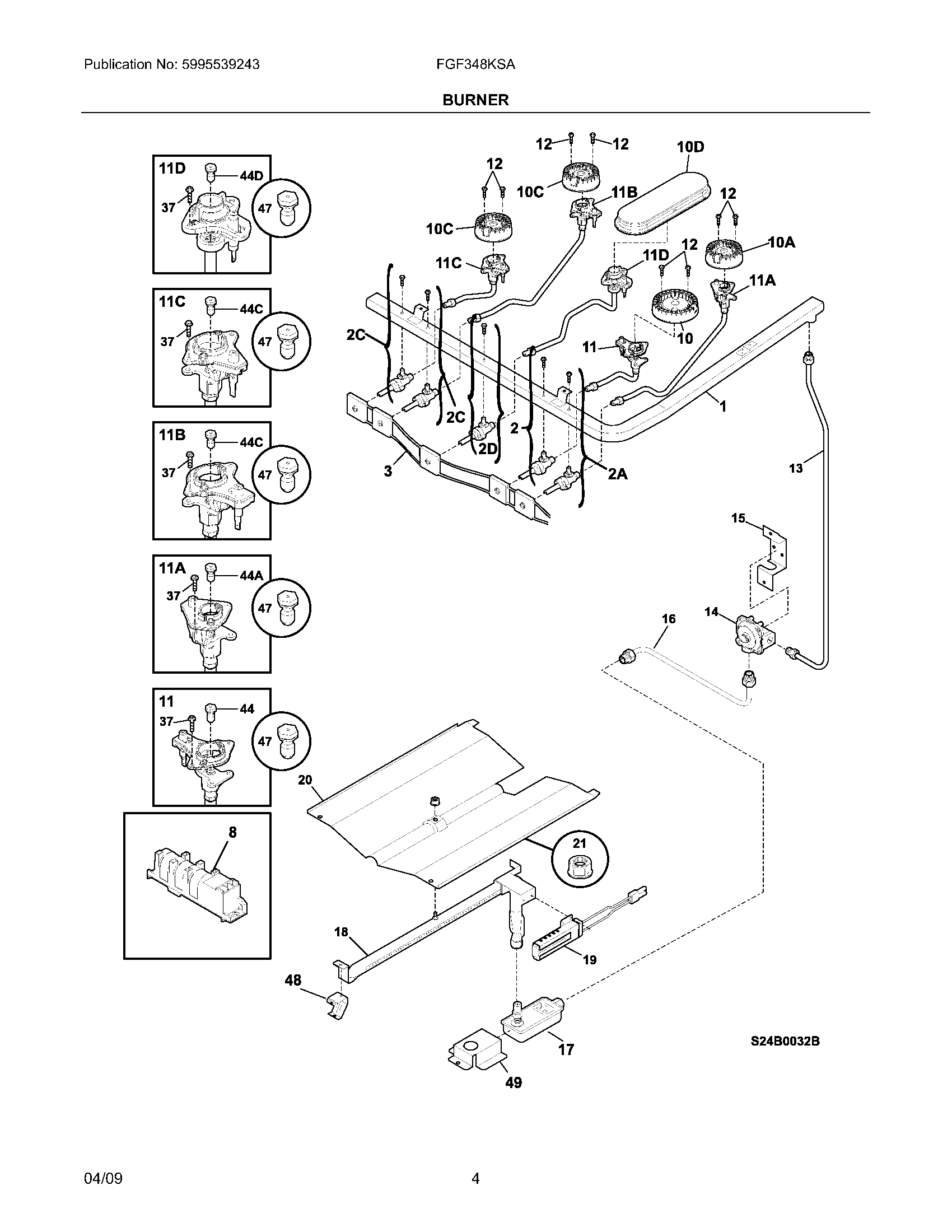

FGF348KSA 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	316001017 Frigidaire Screw
NI	WCI 316253702
NI	WCI 316064103
NI	316215600 Frigidaire Oven Screw
NI	316417518 Frigidaire Instructions
NI	316021109 Frigidaire Oven Screw
1	WCI 316551202
2C	5303935305 Frigidaire Oven Valve
2D	5303935309 Frigidaire Top Burner Valve
2	5303935307 Frigidaire Oven Valve
2A	5303935308 Frigidaire Oven Valve
3	WCI 316219018
8	SPARK MODULE
10D	WCI 316532001
10A	316438200 Frigidaire Range Sealed Burner, 5K
10	316438600 Frigidaire Range Sealed Burner, 14K
10C	316558300 Frigidaire Oven 9.5L Sealed Burner
11D	316532601 Frigidaire Igniter/Orifice Assembly
11	316536614 Frigidaire Igniter/Orifice Assembly
11B	316536600 Frigidaire Igniter Assembly
11A	316536610 Frigidaire Igniter Assembly/Orifice
11C	316536602 Frigidaire Oven Igniter/Orifice Assembly
12	WCI 316529700
13	WCI 316207000
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	316065006 Frigidaire Tube P1
17	3203459 Frigidaire Oven Range Dual Gas Safety Valve
18	316114300 Frigidaire Oven Burner
19	5304509706 Frigidaire Range Oven Igniter
20	WCI 316496001
21	5303013272 Frigidaire Oven Nut
37	316240600 Frigidaire Igniter Mounting Screw
44	316527511 Frigidaire Oven Orifice
44C	316527500 Frigidaire Oven Burner Orifice
44A	316527504 Frigidaire Oven Orifice
44D	316237902 Frigidaire Orifice Top Burner
47	GRLP3 Frigidaire Oven LP Conversion Kit
48	WCI 3018603
49	WCI 316416300
