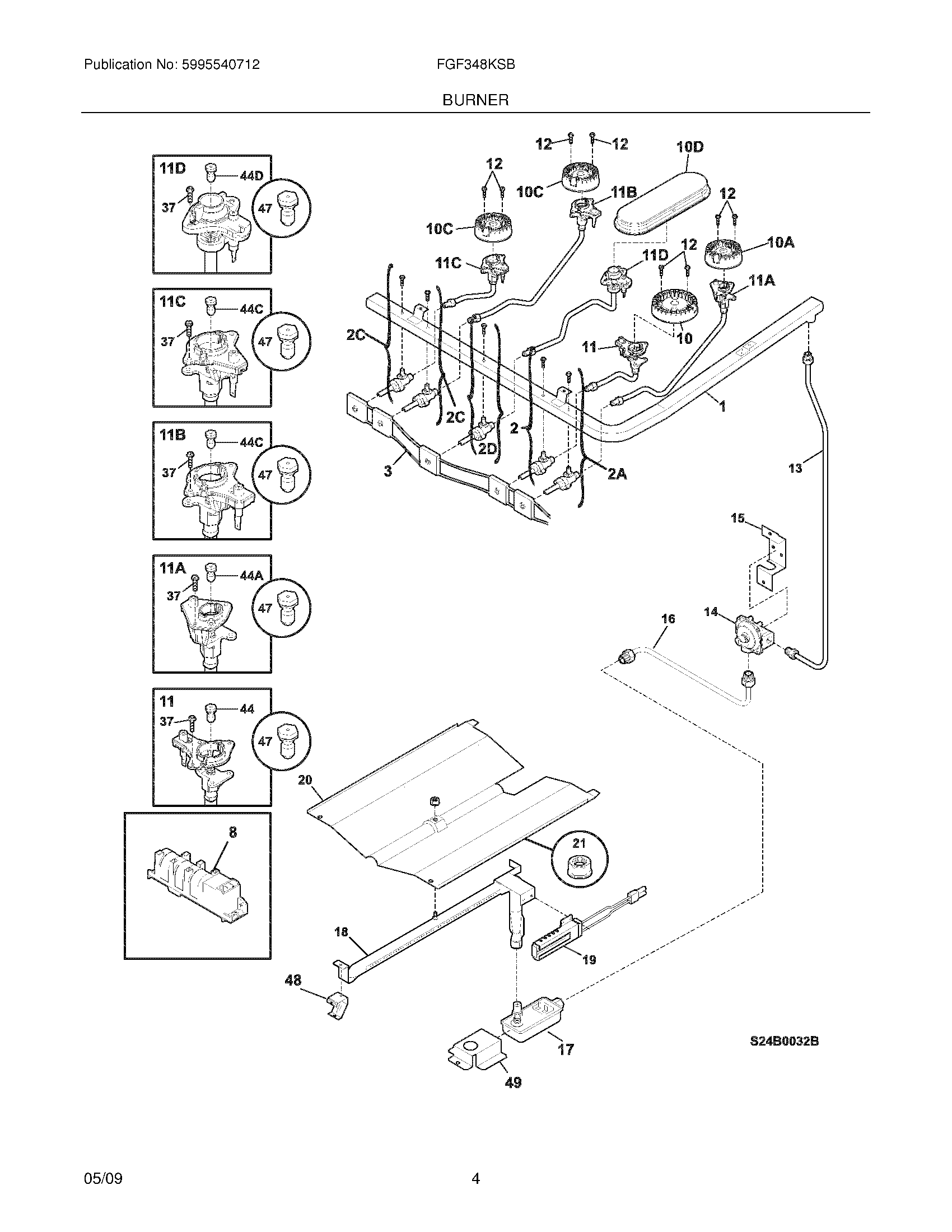

FGF348KSB 05 – BURNER

FGF348KSB 05 – BURNER

Written by

in

FGF348KSB 05 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NIWCI 316443200
NIWCI 316064103
NI316001017 Frigidaire Screw
NIWCI 316253702
NI316417518 Frigidaire Instructions
NI316021105 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316215600 Frigidaire Oven Screw
1WCI 316551202
2C5303935305 Frigidaire Oven Valve
25303935307 Frigidaire Oven Valve
2A5303935308 Frigidaire Oven Valve
2D5303935309 Frigidaire Top Burner Valve
3316580615 Frigidaire Range Spark Ignition Switches with Wire Harness
8SPARK MODULE
10316438600 Frigidaire Range Sealed Burner, 14K
10A316438200 Frigidaire Range Sealed Burner, 5K
10DWCI 316532001
10C316558300 Frigidaire Oven 9.5L Sealed Burner
11316536614 Frigidaire Igniter/Orifice Assembly
11D316532601 Frigidaire Igniter/Orifice Assembly
11B316536600 Frigidaire Igniter Assembly
11C316536602 Frigidaire Oven Igniter/Orifice Assembly
11A316536610 Frigidaire Igniter Assembly/Orifice
12WCI 316529700
13WCI 316207000
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18316114300 Frigidaire Oven Burner
195304509706 Frigidaire Range Oven Igniter
20WCI 316496001
215303013272 Frigidaire Oven Nut
37316240600 Frigidaire Igniter Mounting Screw
44A316527504 Frigidaire Oven Orifice
44D316237902 Frigidaire Orifice Top Burner
44C316527500 Frigidaire Oven Burner Orifice
44316527511 Frigidaire Oven Orifice
47GRLP3 Frigidaire Oven LP Conversion Kit
48WCI 3018603
49WCI 316416300
