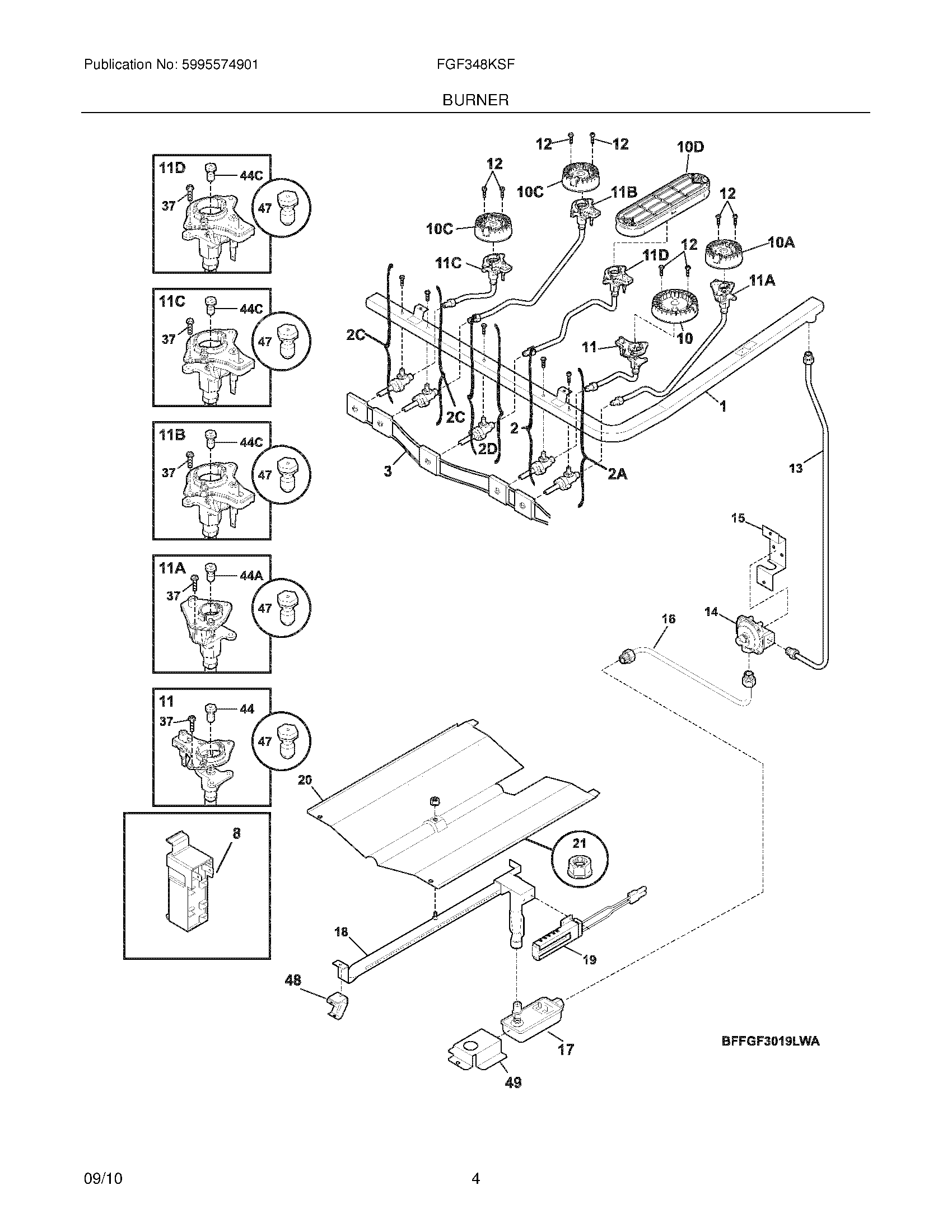

FGF348KSF 05 – BURNER

FGF348KSF 05 – BURNER

Written by

in

FGF348KSF 05 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NI316001017 Frigidaire Screw
NIWCI 316566900
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI5304494425 Frigidaire Oven Harness
NI5303271648 Frigidaire Oven Screw
NI316417518 Frigidaire Instructions
NI316257400 Frigidaire Oven Bracket
NI316215600 Frigidaire Oven Screw
1WCI 316551202
2C5303935305 Frigidaire Oven Valve
2D5303935309 Frigidaire Top Burner Valve
25303935307 Frigidaire Oven Valve
2A5303935308 Frigidaire Oven Valve
3316580615 Frigidaire Range Spark Ignition Switches with Wire Harness
85304508269 Frigidaire Oven Range Spark Module Kit
10C316558300 Frigidaire Oven 9.5L Sealed Burner
10316438600 Frigidaire Range Sealed Burner, 14K
10A316438200 Frigidaire Range Sealed Burner, 5K
10D316559300 Frigidaire Oven Burner
11C316536600 Frigidaire Igniter Assembly
11316536614 Frigidaire Igniter/Orifice Assembly
11B316536602 Frigidaire Oven Igniter/Orifice Assembly
11A316536610 Frigidaire Igniter Assembly/Orifice
11D316536623 Frigidaire Igniter/Orifice Assembly
12316540900 Frigidaire Oven Screw
13WCI 316207000
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18316114300 Frigidaire Oven Burner
195304509706 Frigidaire Range Oven Igniter
20WCI 316496001
215303013272 Frigidaire Oven Nut
37316240600 Frigidaire Igniter Mounting Screw
44C316527500 Frigidaire Oven Burner Orifice
44A316527504 Frigidaire Oven Orifice
44316527511 Frigidaire Oven Orifice
47GRLP3 Frigidaire Oven LP Conversion Kit
48WCI 3018603
49WCI 316416300
