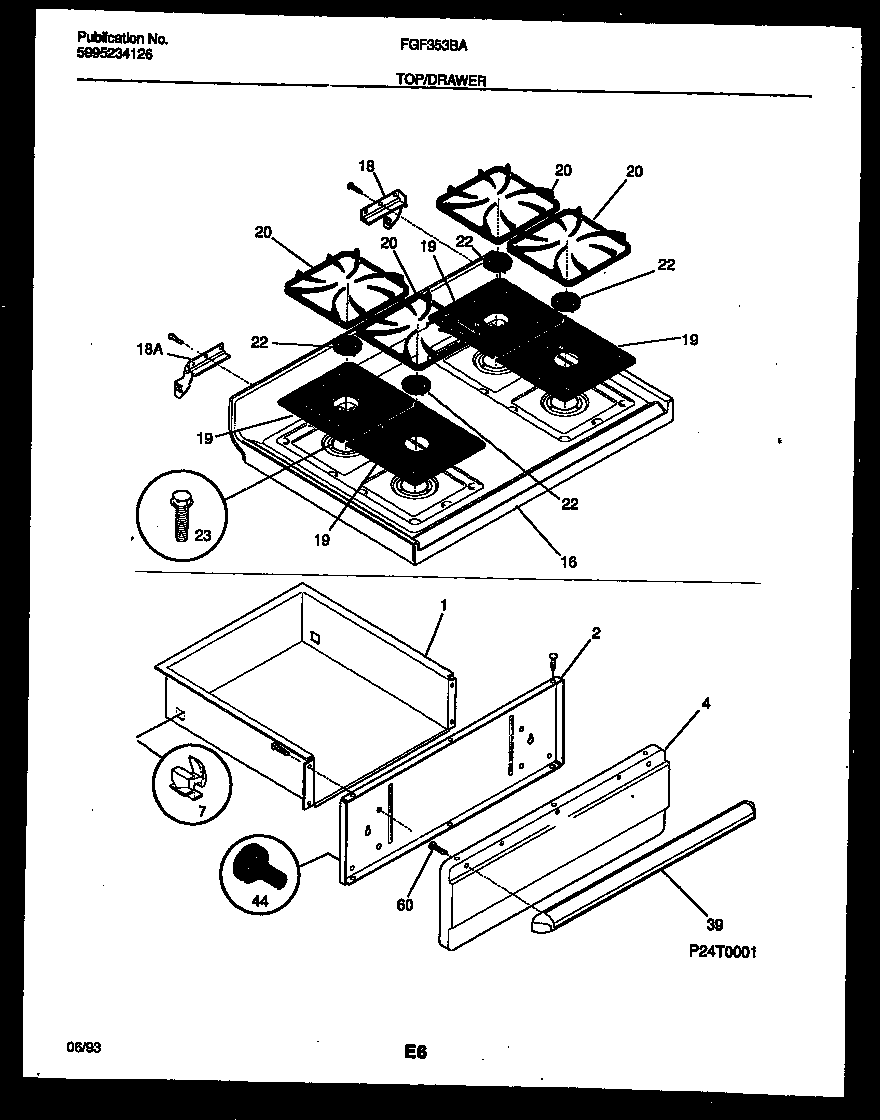

FGF353BADA 06 – COOKTOP AND DRAWER PARTS

FGF353BADA 06 – COOKTOP AND DRAWER PARTS

Written by

in

FGF353BADA 06 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056202
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16WCI 5303285701
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
18AWCI 53032173063
18HINGE-MAIN TOP (RH)
18B131243700 Frigidaire Screw
19WCI 316011401
20WCI 316025400
22WCI 316011001
23316069301 Frigidaire Oven Burner Mounting Primary Screw
39WCI 316026100
443131903 Frigidaire Door/Drawer Bumper
60WCI 5303288574
