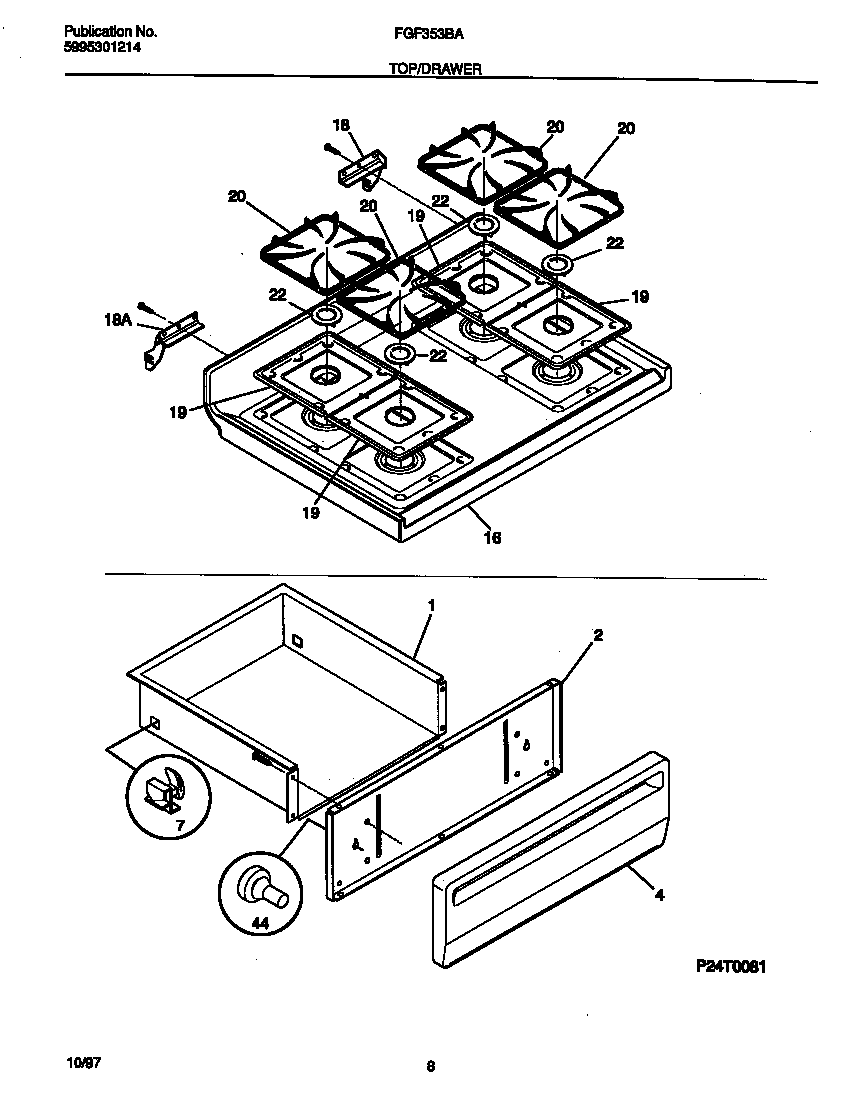

FGF353BAWJ 05 – TOP/DRAWER

FGF353BAWJ 05 – TOP/DRAWER

Written by

in

FGF353BAWJ 05 – TOP/DRAWER

Products

PositionProduct
*60004RIVET-POP, WARING-PLATE
*60007WCI 316089600
*60009131243700 Frigidaire Screw
*60008WCI 5303280311
*60006Screw,cup pt ,8-18 x 0.375 ,chrome
*60005316021105 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4316021109 Frigidaire Oven Screw
4WCI 316084405
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16WCI 5303301546
19WCI 316011401
20WCI 316086305
22CAP-BURNER, MATTE BLACK, SMALL, (2)
443131903 Frigidaire Door/Drawer Bumper
