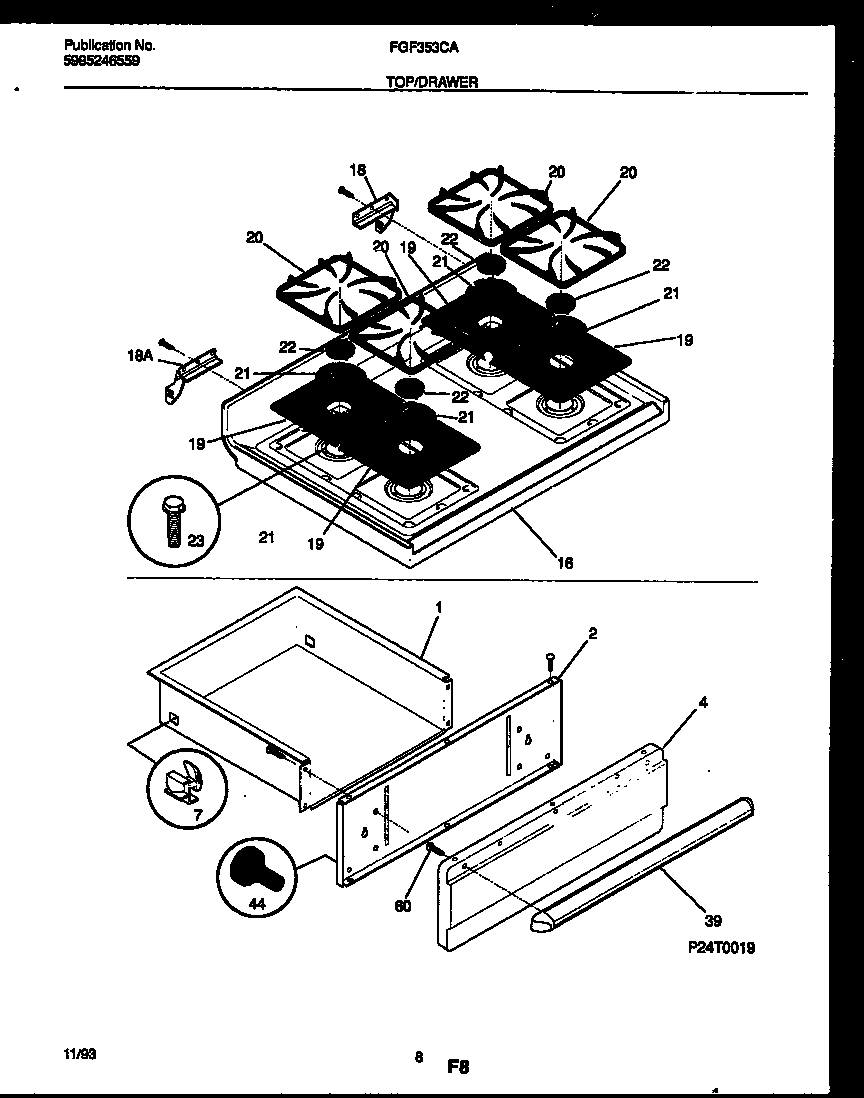

FGF353CASA 05 – COOKTOP AND DRAWER PARTS

FGF353CASA 05 – COOKTOP AND DRAWER PARTS

Written by

in

FGF353CASA 05 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
*88874WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056201
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16WCI 5303285700
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
18B131243700 Frigidaire Screw
18HINGE-MAIN TOP (RH)
18AHINGE-MAIN TOP (LH)
19WCI 316011400
20WCI 316025401
21TRIM RING, BURNER, DARK GREY
22CAP-BURNER, DARK GRAY, (4)
23316069301 Frigidaire Oven Burner Mounting Primary Screw
39WCI 316026101
443131903 Frigidaire Door/Drawer Bumper
60WCI 5303288574
