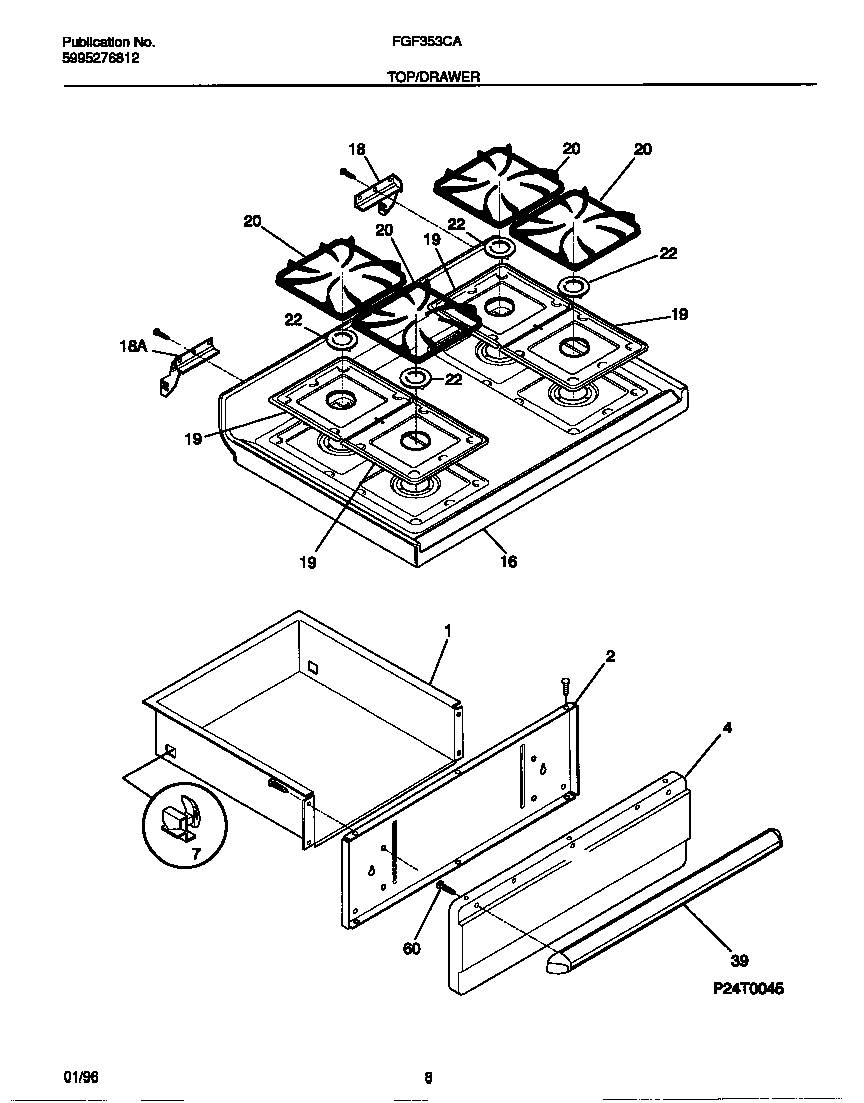

FGF353CASB 05 – TOP/DRAWER

FGF353CASB 05 – TOP/DRAWER

Written by

in

FGF353CASB 05 – TOP/DRAWER

Products

PositionProduct
*70406RIVET-POP, WARING-PLATE
*70408131243700 Frigidaire Screw
*704053131903 Frigidaire Door/Drawer Bumper
*70409WCI 5303288574
*70407WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PANEL-BROILER, WHITE
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
16WCI 5303301546
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
19Pan-burner,small ,gray
20WCI 316025401
22CAP-BURNER, DARK GRAY, (4)
39WCI 316026103
60WCI 5303280308
