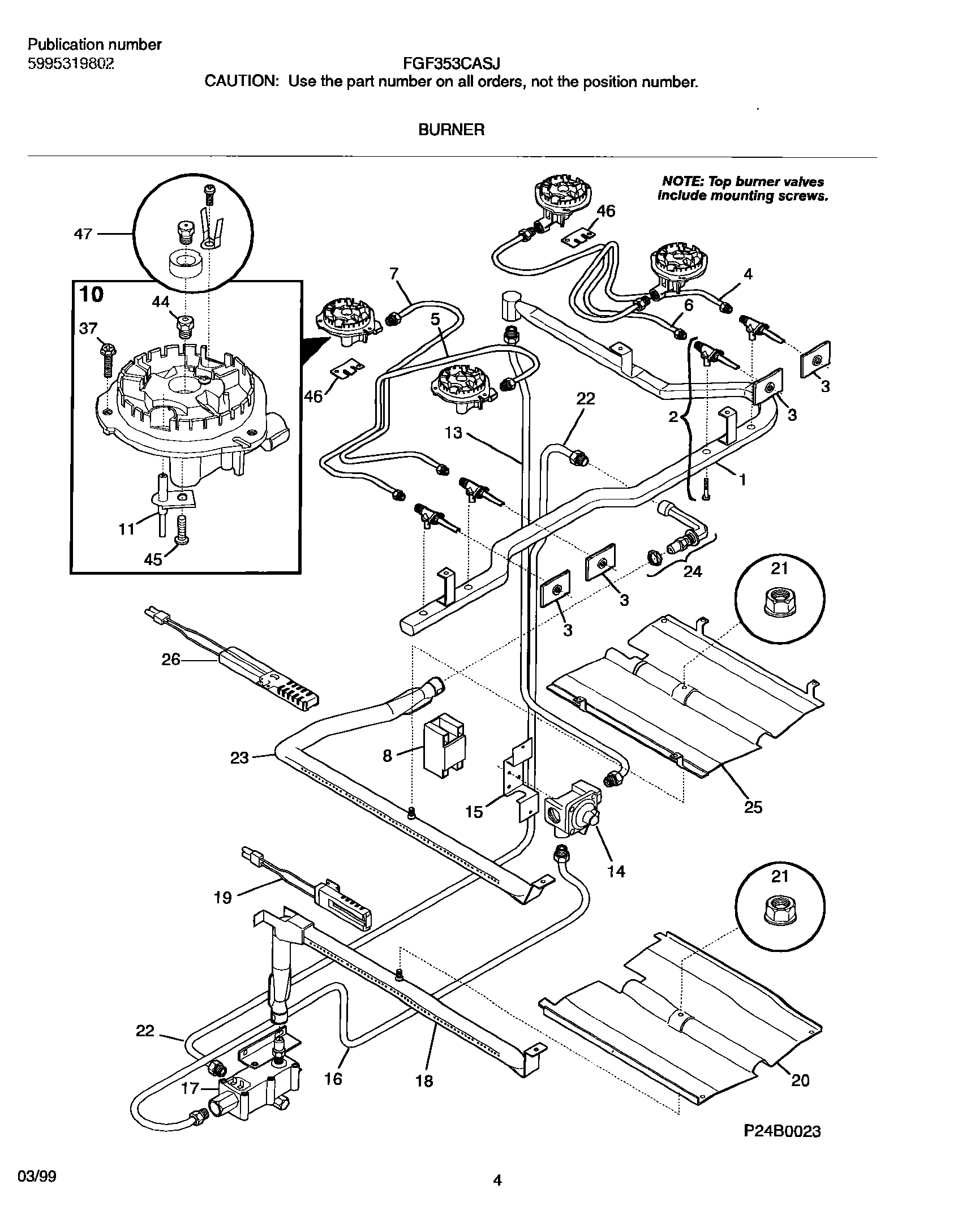

FGF353CASJ 05 – BURNER

FGF353CASJ 05 – BURNER

Written by

in

FGF353CASJ 05 – BURNER

Products

PositionProduct
1WCI 316066201
2WCI 5303935130
2316048200 Frigidaire Oven Screw
3SWITCH-IGNITOR
4WCI 316059612
5316059613 Frigidaire Oven Tube-LF
6WCI 316059614
7316059615 Frigidaire Oven Tube
8HARNESS-WIRING, MODULE/IGNITER (NON-ILLUSTRATED)
85304505695 Frigidaire Oven Module
10BURNER ASSY-TOP, SEALED, (4), INCLUDES, 11, 37, 44, 45,
11316011200 Frigidaire Oven Top Burner Igniter
13WCI 316065005
145304521339 Frigidaire Regulator
14316021104 Frigidaire Oven Screw Assembly
15316091600 Frigidaire Oven Bracket
16WCI 316065003
175303208499 Frigidaire Safety Gas Valve
18WCI 3131290
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20BAFFLE-OVN BURNER
215303013272 Frigidaire Oven Nut
22WCI 316065002
23WCI 316087900
24WCI 316070400
25WCI 5303210379
265303935068 Frigidaire Flat Igniter
37316089500 Frigidaire Oven Screw
44ORIFICE-TOP BURNER, (4)
45WCI 316011100
46WCI 316074700
47WCI 5303286386
50BURNER-TOP, (4), INCLUDES 37
