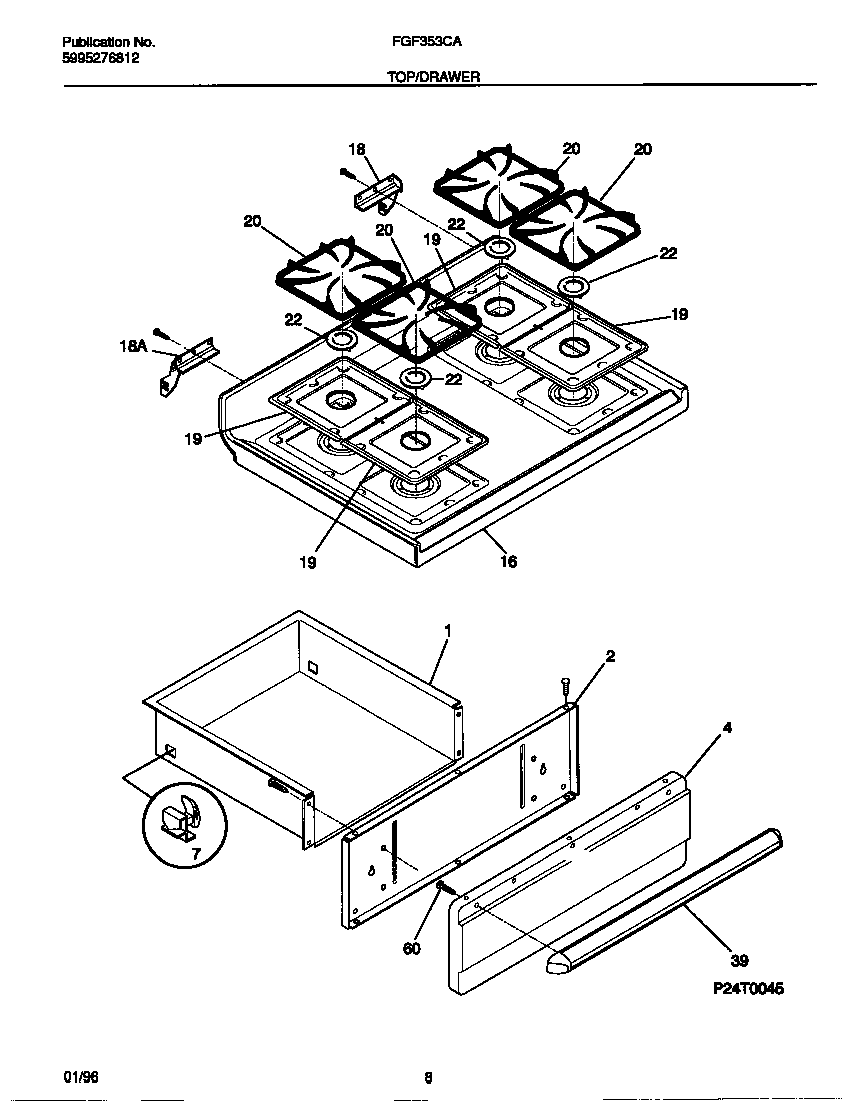

FGF353CATB 05 – TOP/DRAWER

Products

Position	Product
*70406	RIVET-POP, WARING-PLATE
*70408	131243700 Frigidaire Screw
*70405	3131903 Frigidaire Door/Drawer Bumper
*70409	WCI 5303288574
*70407	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316056206
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	WCI 5303301547
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
19	WCI 316011408
20	WCI 316025402
22	WCI 316011004
39	WCI 316026102
60	WCI 5303280308
