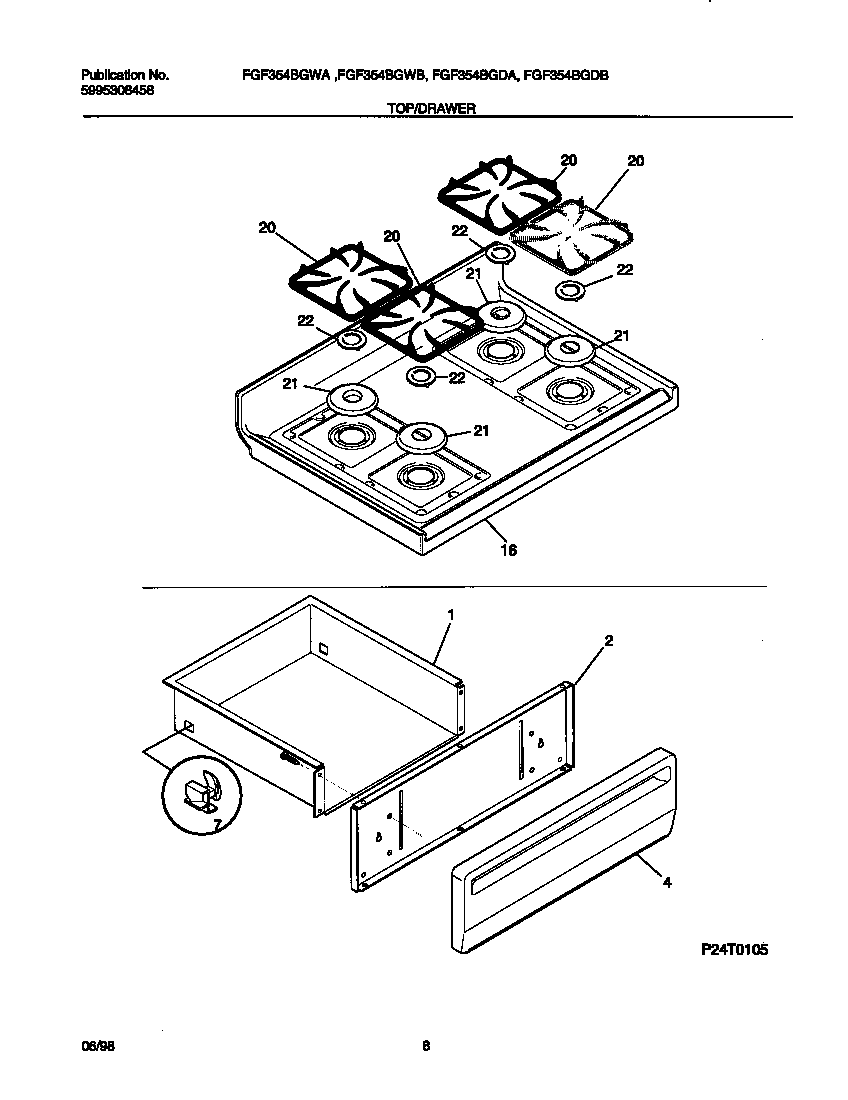

FGF354BGDA 05 – TOP/DRAWERadmin2025-04-26T10:51:03+00:00FGF354BGDA 05 – TOP/DRAWER
Products
| Position | Product |
|---|
| *49143 | RIVET-POP, WARING-PLATE |
| *49150 | WCI 316089600 |
| *49152 | SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED) |
| *49151 | WCI 5303280311 |
| *49145 | Screw,cup pt ,8-18 x 0.375 ,chrome |
| *49149 | 316089500 Frigidaire Oven Screw |
| *49146 | 316021109 Frigidaire Oven Screw |
| *49144 | 316021105 Frigidaire Oven Screw |
| 1 | DRAWER-UTILITY |
| 2 | SHIELD-PNL |
| 4 | WCI 316084406 |
| 7 | 3051163 Frigidaire Oven Range Rear Broiler Drawer Glide |
| 10 | WCI 5303280308 |
| 16 | WCI 5303301547 |
| 20 | WCI 316085201 |
| 21 | TRIM RING-BURNER, BLACK, SMALL, (4) |
| 22 | CAP-BURNER,BLACK ,SMALL |
| 44 | 3131903 Frigidaire Door/Drawer Bumper |
