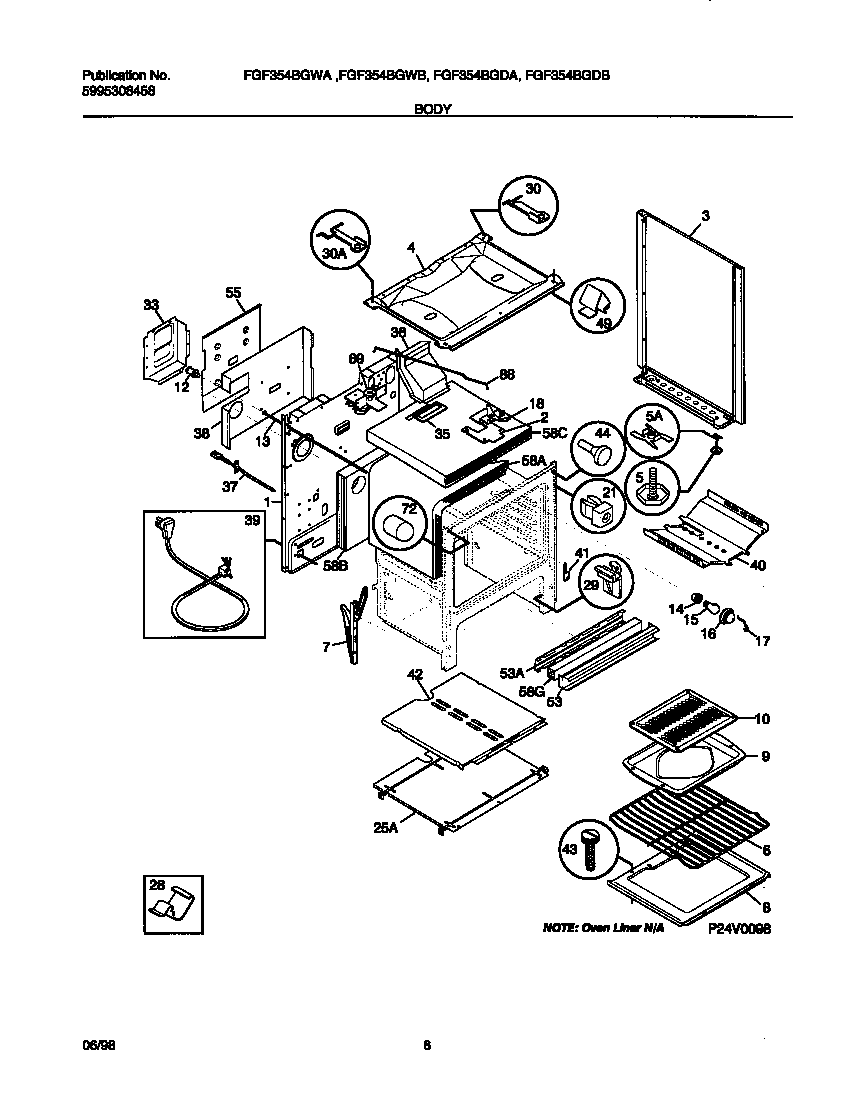

FGF354BGWA 04 – BODY

FGF354BGWA 04 – BODY

Written by

in

FGF354BGWA 04 – BODY

Products

PositionProduct
*49139316064600 Frigidaire Oven Support
*49136316116000 Frigidaire Screw
*49137NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
*49140WCI 08067961
*491383203010 Frigidaire Clip
*4914208067973 Frigidaire 0 Insulation
*49141SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*49131Screw,cup pt ,8-18 x 0.375 ,chrome
*49135WCI 3934058
*49130316021105 Frigidaire Oven Screw
*49133WCI 316081029
*49132WCI 08067992
*49129WIRING HARNESS,CHASSIS
1WCI 316029412
2SHIELD-OVN TOP
3WCI 316081028
4WCI 316011912
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007002
8BTTM-OVEN
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 5303288580
26WCI 08067757
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30WCI 316059201
30WCI 316059200
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
38WCI 316051700
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
41WCI 3131570
42WCI 5303288578
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
493205821 Frigidaire Clip
53WCI 5303288579
55WCI 316107800
58WCI 316054200
58INSULATION, OVEN TOP
58INSULATION, OVEN WRAPPER
72COVER-LIGHT/SWITCH ROD
88WCI 316026400
89WCI 316028101
