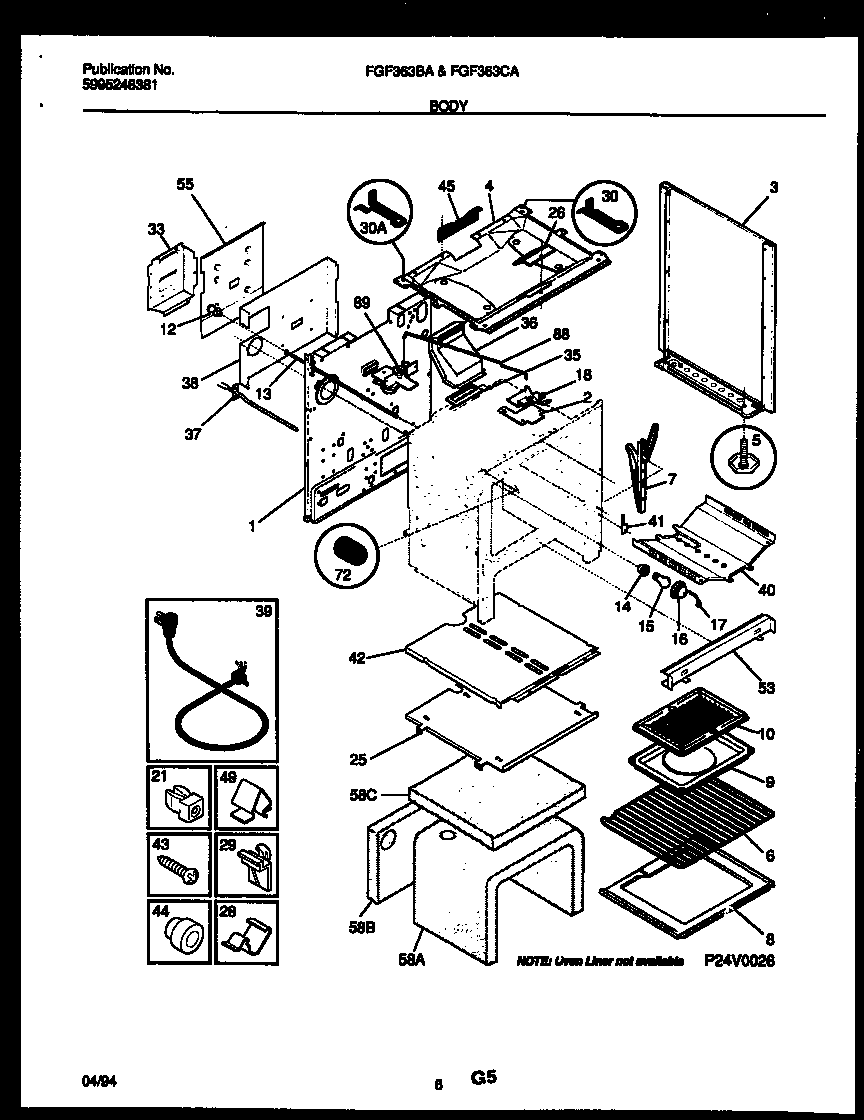

FGF363BADA 04 – BODY PARTSadmin2025-04-26T10:52:33+00:00FGF363BADA 04 – BODY PARTS
Products
| Position | Product |
|---|
| 1 | BACK-MAIN, AUTOLATCH |
| 2 | SHIELD-OVN TOP |
| 3B | SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) |
| 3C | WCI 08067992 |
| 3A | WCI 5303269545 |
| 3 | WCI 5303269543 |
| 4 | WCI 5303269487 |
| 5A | NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) |
| 5 | SCREW-LEVELING |
| 5B | ANTI-TIP KIT (NOT ILLUSTRATED) |
| 6 | 316067902 Frigidaire Oven Rack |
| 7 | WCI 316007002 |
| 8 | BTTM-OVEN |
| 8A | 316064600 Frigidaire Oven Support |
| 9 | PAN-BROILER |
| 10 | WCI 5303131356 |
| 12 | SWITCH-OVEN LIGHT, DOOR FRAME |
| 13 | WCI 316026800 |
| 14 | 316116400 Frigidaire Oven Light Socket |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | 5304524341 Frigidaire Lens |
| 17 | RETAINER-GLASS |
| 18 | WCI 316036300 |
| 21 | SPACER-BODYSIDE, (8) |
| 25 | WCI 3131313 |
| 26 | WCI 08067757 |
| 28 | CLIP-WIRE |
| 29 | 3051162 Frigidaire Oven Range Front Broiler Drawer Glide |
| 30 | BRACKET-HINGE, MAIN TOP RH |
| 30A | BRACKET-HINGE, MAIN TOP, LH |
| 33 | SHIELD, REAR WALL |
| 35 | 316542102 Frigidaire Flue Gasket |
| 36 | WCI 5303272844 |
| 37 | 5304497424 Frigidaire Oven Temperature Sensor Probe Kit |
| 38 | WCI 316051701 |
| 39 | 5304515659 Frigidaire Oven Power Cord |
| 40 | WCI 3200836 |
| 41 | WCI 3131570 |
| 42 | SHIELD-HEAT UPPER |
| 43 | 316282700 Frigidaire Oven Screw |
| 44 | 3131903 Frigidaire Door/Drawer Bumper |
| 45 | WCI 08068018 |
| 49 | 3205821 Frigidaire Clip |
| 53A | 08067973 Frigidaire 0 Insulation |
| 53 | SHIELD-FRONT |
| 55 | WCI 316052601 |
| 58A | WCI 316047700 |
| 58C | INSULATION, OVEN TOP |
| 58B | WCI 316054200 |
| 72 | COVER-LIGHT/SWITCH ROD |
