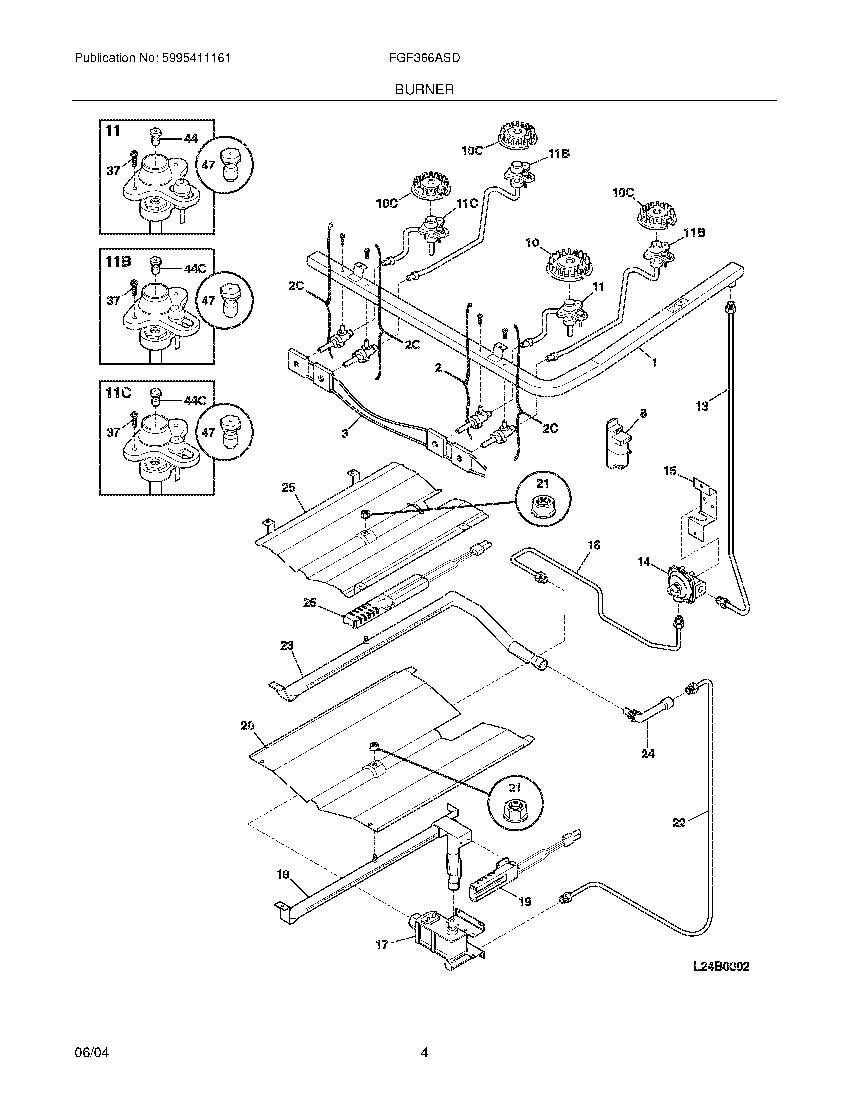

FGF366ASD 05 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NI316248105 Frigidaire Instructions /Lp Conversion Kit Ns
NIWIRING HARNESS,IGNITOR MODU
NIWCI 08068018
NIWCI 316113400
NI316401500 Frigidaire Oven Cover
NI316215600 Frigidaire Oven Screw
1WCI 316219500
25303935232 Frigidaire Oven Valve
2CWCI 5303935234
3IGNITOR SWITCH WIRE HARNESS
85304505695 Frigidaire Oven Module
10WCI 316212300
10C316212400 Frigidaire Oven Primary Burner
11C316237805 Frigidaire Orifice Assembly Igniter
11316237801 Frigidaire Range Igniter Orifice Assembly
11B316237704 Frigidaire Igniter/Orifice Assembly
13WCI 316207000
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
16WCI 316065003
175303208499 Frigidaire Safety Gas Valve
18WCI 316269000
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 316279101
215303013272 Frigidaire Oven Nut
22WCI 316065002
23WCI 08067935
24WCI 316070400
25WCI 5303210379
265303935068 Frigidaire Flat Igniter
37316240600 Frigidaire Igniter Mounting Screw
44316237901 Frigidaire Oven Orifice
44C316237902 Frigidaire Orifice Top Burner
47GRLP3 Frigidaire Oven LP Conversion Kit
