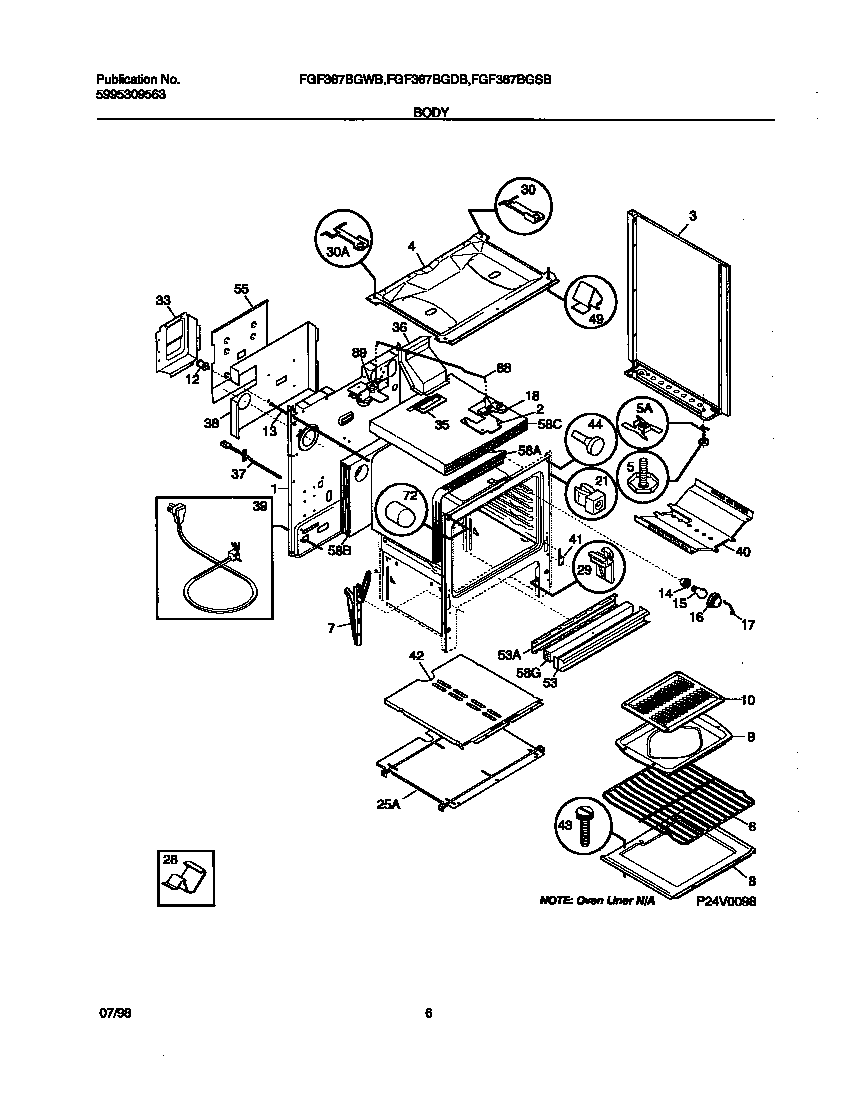

FGF367BGDB 04 – BODY

FGF367BGDB 04 – BODY

Written by

in

FGF367BGDB 04 – BODY

Products

PositionProduct
*38895316064600 Frigidaire Oven Support
*38893316116000 Frigidaire Screw
*38898WCI 08068018
*38896WCI 08067961
*388943203010 Frigidaire Clip
*38899WCI 08067757
*38902Screw,cup pt ,8-18 x 0.375 ,chrome
*38890PANEL-BODYSIDE,ALMOND ,LH
*38892WCI 3934058
*38897SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*38901316021105 Frigidaire Oven Screw
*38900WIRING HARNESS,CHASSIS
1WCI 316029412
2SHIELD-OVN TOP
3WCI 316081030
4WCI 316011912
5SCREW-LEVELING
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7WCI 316007002
8BTTM-OVEN
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 5303288580
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30WCI 316059201
30WCI 316059200
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
38WCI 316051700
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
41WCI 3131570
42WCI 5303288578
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
493205821 Frigidaire Clip
53WCI 08067992
53WCI 5303288579
55WCI 316107800
5808067973 Frigidaire 0 Insulation
58WCI 316047705
58INSULATION, OVEN TOP
58WCI 316054200
72COVER-LIGHT/SWITCH ROD
88WCI 316026400
89WCI 316028101
