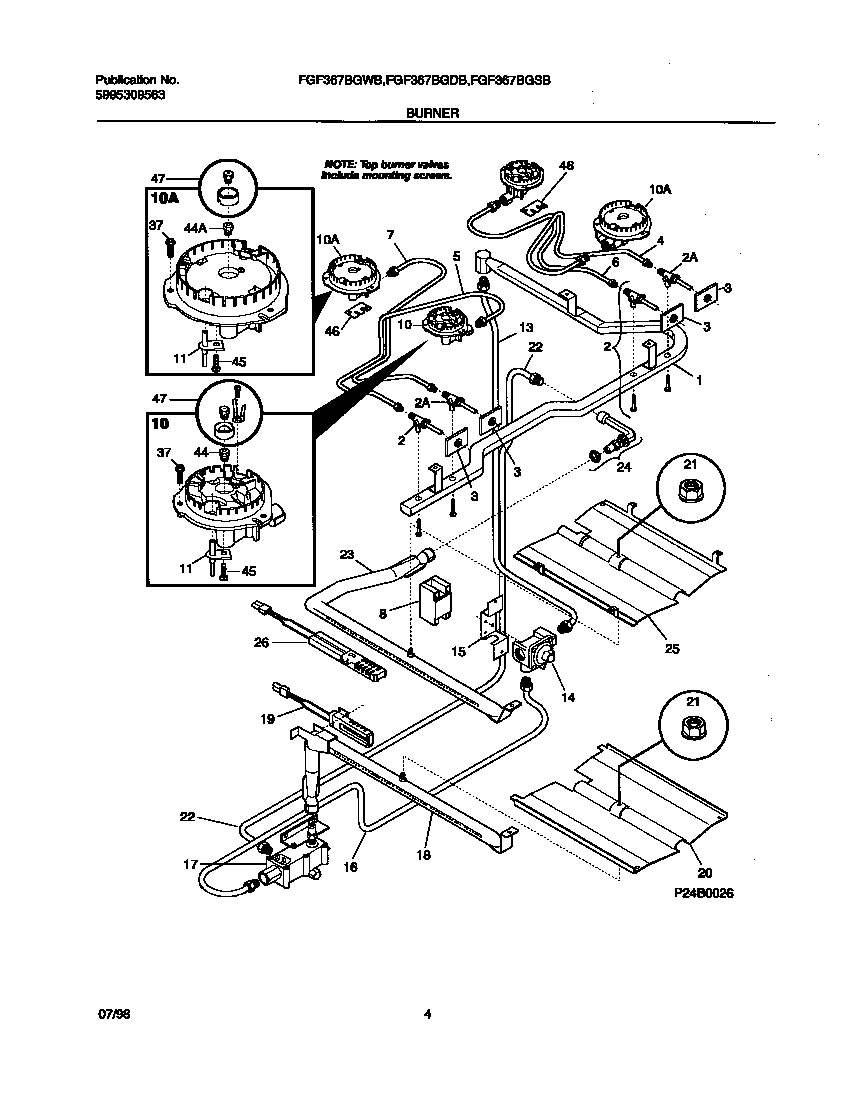

FGF367BGWB 03 – BURNER

Products

PositionProduct
*38887HARNESS-WIRING, MODULE/IGNITER (NON-ILLUSTRATED)
*38886316048200 Frigidaire Oven Screw
*388895303271648 Frigidaire Oven Screw
*38888316021104 Frigidaire Oven Screw Assembly
1WCI 316066201
2VALVE-TOP BURNER, LARGE
2WCI 5303935130
3SWITCH-IGNITOR
4WCI 316059612
5316059613 Frigidaire Oven Tube-LF
6WCI 316059614
7316059615 Frigidaire Oven Tube
85304505695 Frigidaire Oven Module
10BURNER ASSY-TOP, SEALED, (4), INCLUDES, 11, 37, 44, 45,
10Burner Assy-top,sealed ,large ,11,100 BTU,(2), includes ,11,37,44,45
11316011200 Frigidaire Oven Top Burner Igniter
13WCI 316065005
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
16WCI 316065003
175303208499 Frigidaire Safety Gas Valve
18WCI 3131290
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20BAFFLE-OVN BURNER
215303013272 Frigidaire Oven Nut
22WCI 316065002
23WCI 316087900
24WCI 316070400
25WCI 5303210379
265303935068 Frigidaire Flat Igniter
37316069301 Frigidaire Oven Burner Mounting Primary Screw
44ORIFICE-TOP BURNER, (4)
45WCI 316011100
46WCI 316074700
47WCI 5303307190
