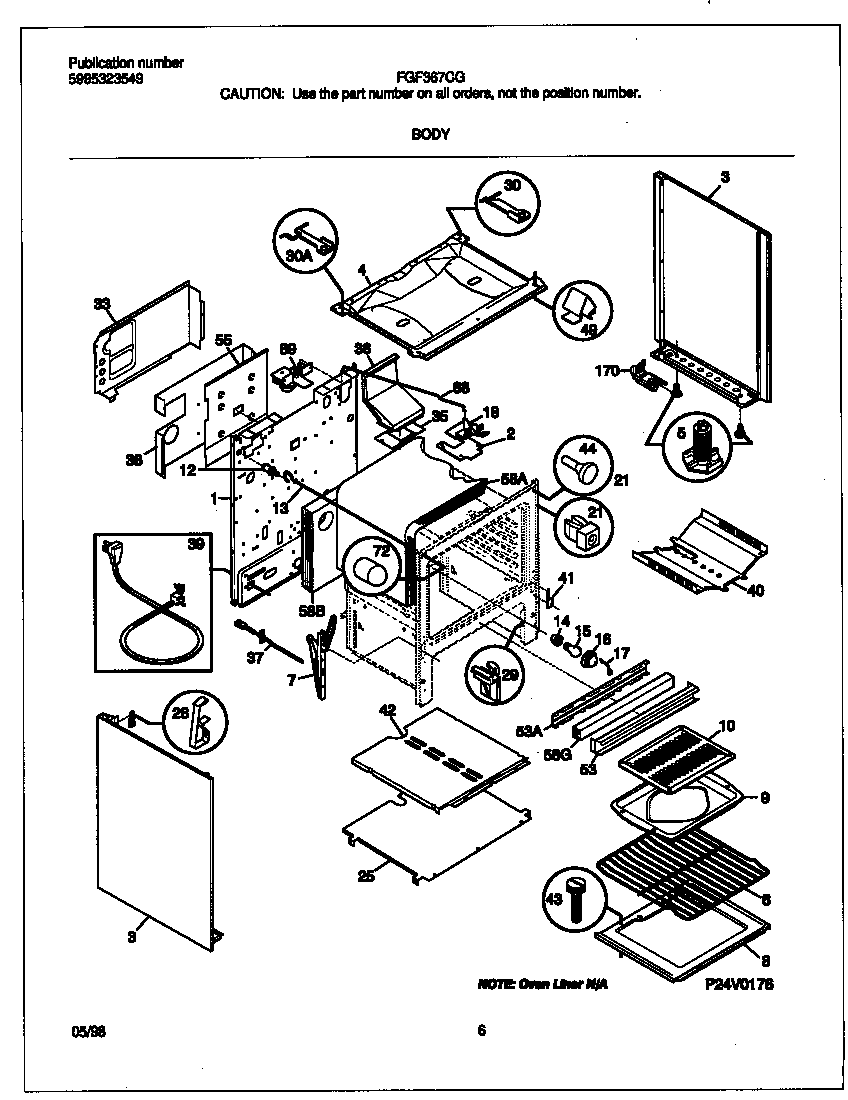

FGF367CGSD 04 – BODY

Products

Position	Product
*01575	316064600 Frigidaire Oven Support
*01576	SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*01572	WCI 08067757
*01574	Screw,cup pt ,8-18 x 0.375 ,chrome
*01573	WIRING HARNESS,CHASSIS
1	WCI 316029412
2	SHIELD-OVN TOP
3B	WCI 316081035
3A	WCI 316081034
4	WCI 316011912
5	WCI 316107300
6	316067902 Frigidaire Oven Rack
7	WCI 316007002
8	BTTM-OVEN
9	WCI 316073800
10	WCI 3205234
12	SWITCH-OVEN LIGHT, DOOR FRAME
13	WCI 316026800
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	WCI 316036300
21	SPACER-BODYSIDE, (8)
25	WCI 5303288580
28	CLIP-WIRE
29	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
30	WCI 316059201
30	WCI 316059200
33	SHIELD, REAR WALL
35	316542102 Frigidaire Flue Gasket
36	WCI 5303272844
37	5304497424 Frigidaire Oven Temperature Sensor Probe Kit
38	WCI 316051700
39	5304515659 Frigidaire Oven Power Cord
40	WCI 3200836
41	WCI 3131570
42	WCI 5303288578
43	316282700 Frigidaire Oven Screw
44	3131903 Frigidaire Door/Drawer Bumper
49	3205821 Frigidaire Clip
53	WCI 08067992
53	WCI 5303288579
55	WCI 316107800
58	08067973 Frigidaire 0 Insulation
58	WCI 316054200
58	WCI 316047705
72	COVER-LIGHT/SWITCH ROD
88	WCI 316026400
89	WCI 316028101
170A	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170B	316116000 Frigidaire Screw
