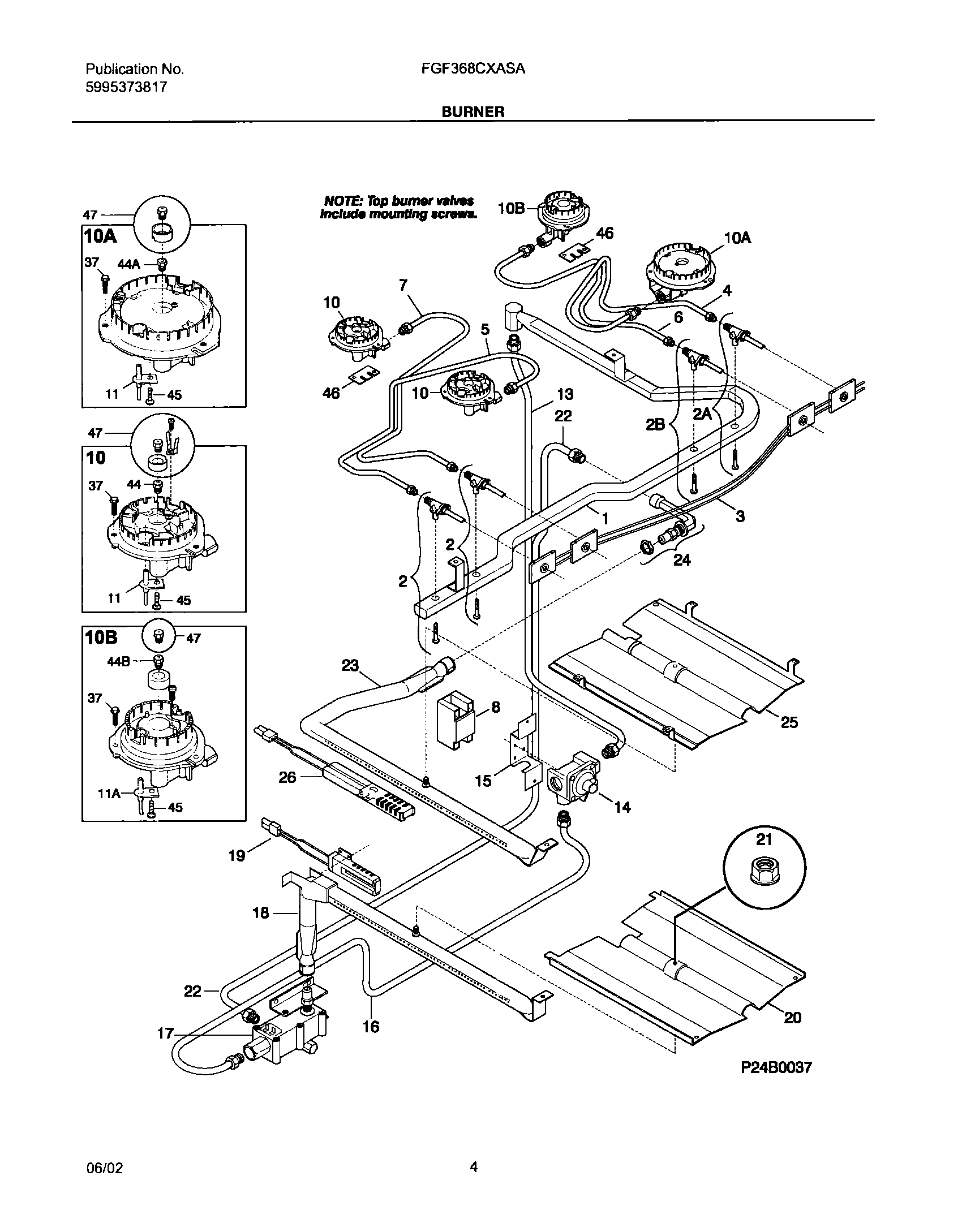

FGF368CXASA 05 – BURNER

FGF368CXASA 05 – BURNER

Written by

in

FGF368CXASA 05 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NIWCI 316113400
NIHARNESS-WIRING, MODULE/IGNITER (NON-ILLUSTRATED)
NIWCI 08068018
NI316048200 Frigidaire Oven Screw
NI5303271648 Frigidaire Oven Screw
1WCI 316113801
2AWCI 316127502
2WCI 316127500
2BVALVE-TOP BURNER LINEAR 5K 4“,2B
3WCI 316001824
4WCI 316059612
5316059613 Frigidaire Oven Tube-LF
6WCI 316059614
7316059615 Frigidaire Oven Tube
85304505695 Frigidaire Oven Module
10BURNER ASSY-TOP, SEALED, (4), INCLUDES, 11, 37, 44, 45,
10BWCI 316010605
10ABurner Assy-top,sealed ,large ,11,100 BTU,(2), includes ,11,37,44A,45
11316011200 Frigidaire Oven Top Burner Igniter
13WCI 316065005
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
16WCI 316065003
175303208499 Frigidaire Safety Gas Valve
18WCI 3131290
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20BAFFLE-OVN BURNER
215303013272 Frigidaire Oven Nut
22WCI 316065002
23WCI 08067935
24WCI 316070400
25WCI 5303210379
265303935068 Frigidaire Flat Igniter
37316069301 Frigidaire Oven Burner Mounting Primary Screw
44ORIFICE-TOP BURNER, (4)
44BOrifice-top burner,(1)
44AWCI 316010801
45WCI 316011100
46WCI 316074700
47WCI 316039616
