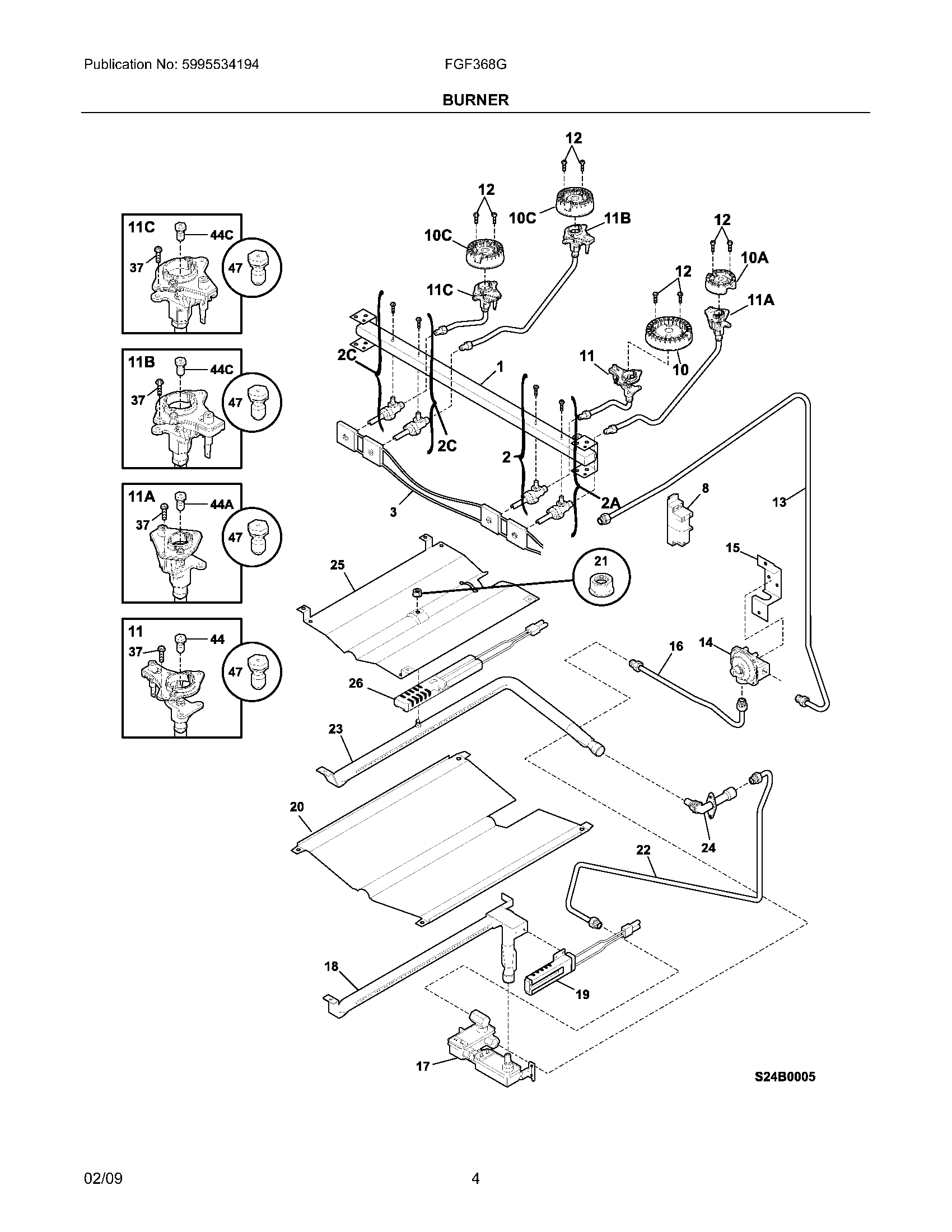

FGF368GSF 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	316215600 Frigidaire Oven Screw
NI	316401500 Frigidaire Oven Cover
NI	316417518 Frigidaire Instructions
NI	316498100 Frigidaire Shield
NI	WCI 316443200
NI	WCI 316526901
NI	316001017 Frigidaire Screw
1	316417900 Frigidaire Pipe Manifold
2A	5303935308 Frigidaire Oven Valve
2	5303935307 Frigidaire Oven Valve
2C	5303935305 Frigidaire Oven Valve
3	316219019 Frigidaire Wiring Harness
8	5304505695 Frigidaire Oven Module
10C	316558300 Frigidaire Oven 9.5L Sealed Burner
10A	316438200 Frigidaire Range Sealed Burner, 5K
10	316438600 Frigidaire Range Sealed Burner, 14K
11A	316536610 Frigidaire Igniter Assembly/Orifice
11C	316536602 Frigidaire Oven Igniter/Orifice Assembly
11	316536614 Frigidaire Igniter/Orifice Assembly
11B	316536600 Frigidaire Igniter Assembly
12	WCI 316529700
13	316489100 Frigidaire Oven Tube
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	5304507348 Frigidaire Oven Tube
17	316404901 Frigidaire Oven Valve
18	316404400 Frigidaire Oven Burner
19	5304534663 Frigidaire Igniter
20	5304519024 Frigidaire Oven Baffle
21	5303013272 Frigidaire Oven Nut
22	5304507768 Frigidaire Oven Tube
23	WCI 316404300
24	5304516894 Frigidaire Oven Elbow
25	WCI 316401301
26	316489401 Frigidaire Igniter Assembly
37	316240600 Frigidaire Igniter Mounting Screw
44A	316527504 Frigidaire Oven Orifice
44	316527511 Frigidaire Oven Orifice
44C	316527500 Frigidaire Oven Burner Orifice
47	GRLP3 Frigidaire Oven LP Conversion Kit
