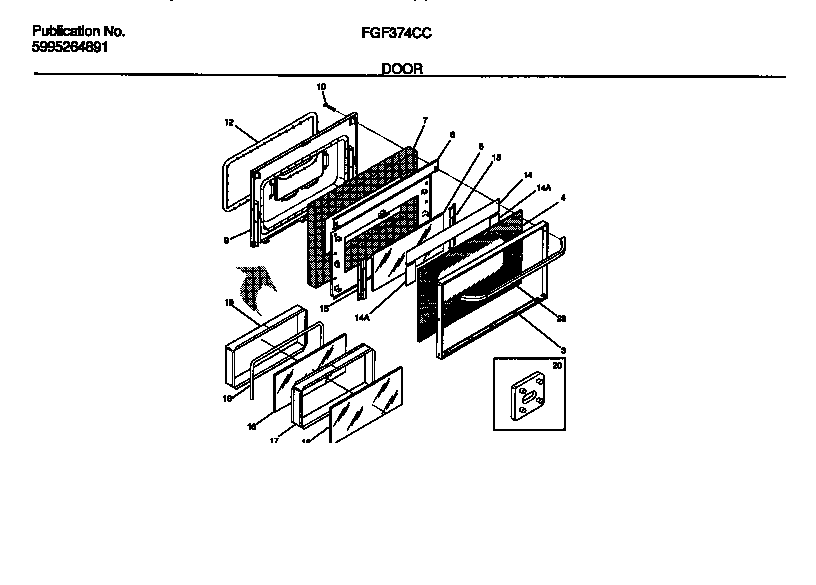

FGF374CCBA 06 – DOOR

FGF374CCBA 06 – DOOR

Written by

in

FGF374CCBA 06 – DOOR

Products

PositionProduct
*23571SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*23575WCI 5303280311
*23570WCI 316065301
*235745303271648 Frigidaire Oven Screw
*235765303285179 Frigidaire Oven Door Screw
*23573WCI 5303269859
*235725303300265 Frigidaire Oven Screw
3WCI 316067802
4GLASS-OVEN DOOR, BLACK, OUTER
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION
7INSULATION-OVEN DOOR
9WCI 316066603
10SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
125303131601 Frigidaire Oven Seal
14REFLECTOR, ALUMINUM FOIL
145303208655 Frigidaire Reflector Assembly
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 316067600
20WCI 316055101
39WCI 316060205
