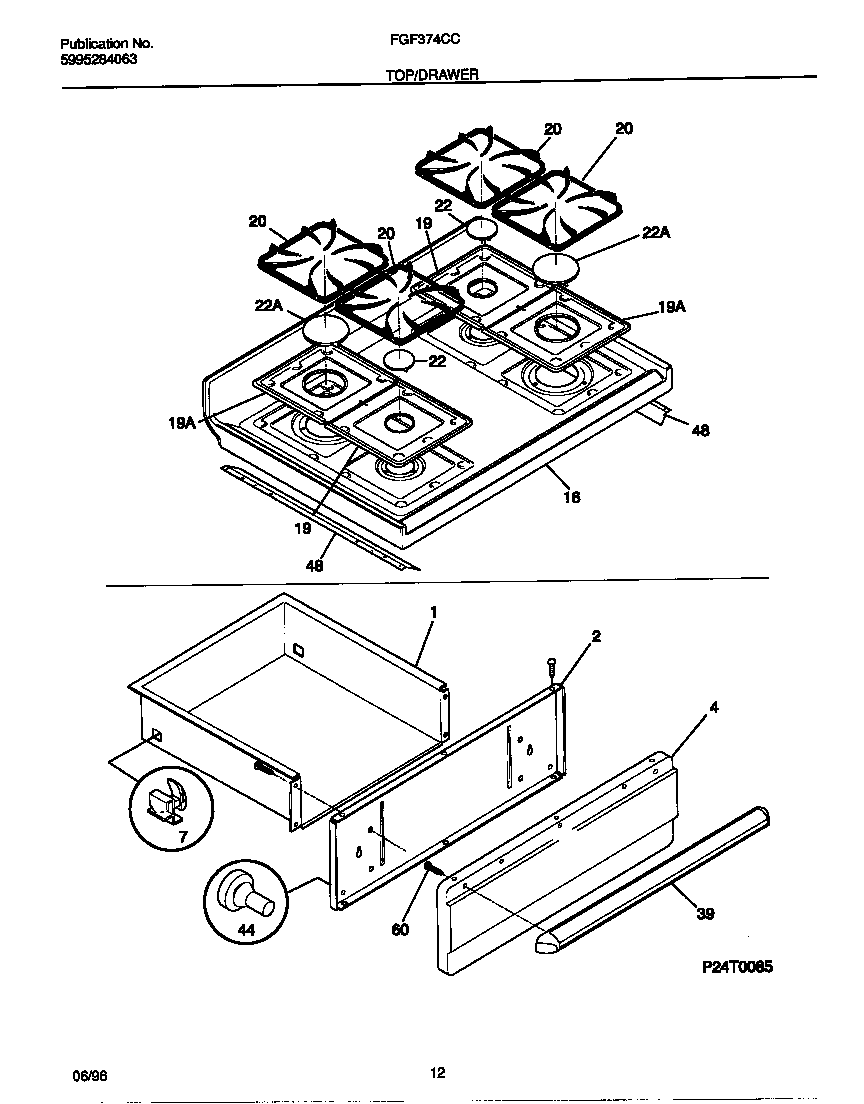

FGF374CCBC 05 – TOP/DRAWER

Products

Position	Product
*91767	RIVET-POP, WARING-PLATE
*91770	131243700 Frigidaire Screw
*91769	WCI 5303280311
*91768	Screw,cup pt ,8-18 x 0.375 ,chrome
*91771	WCI 5303288574
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316056207
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	WCI 5303307708
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
19	WCI 316011415
19	Pan-burner,large ,black
20	WCI 316085300
22	CAP-BURNER, MATTE BLACK, SMALL, (2)
22	CAP-BURNER, MATTE BLACK, LARGE, (2)
39	WCI 316026100
44	3131903 Frigidaire Door/Drawer Bumper
48	Shield,deflector ,main top panel ,(2)
60	316089500 Frigidaire Oven Screw
