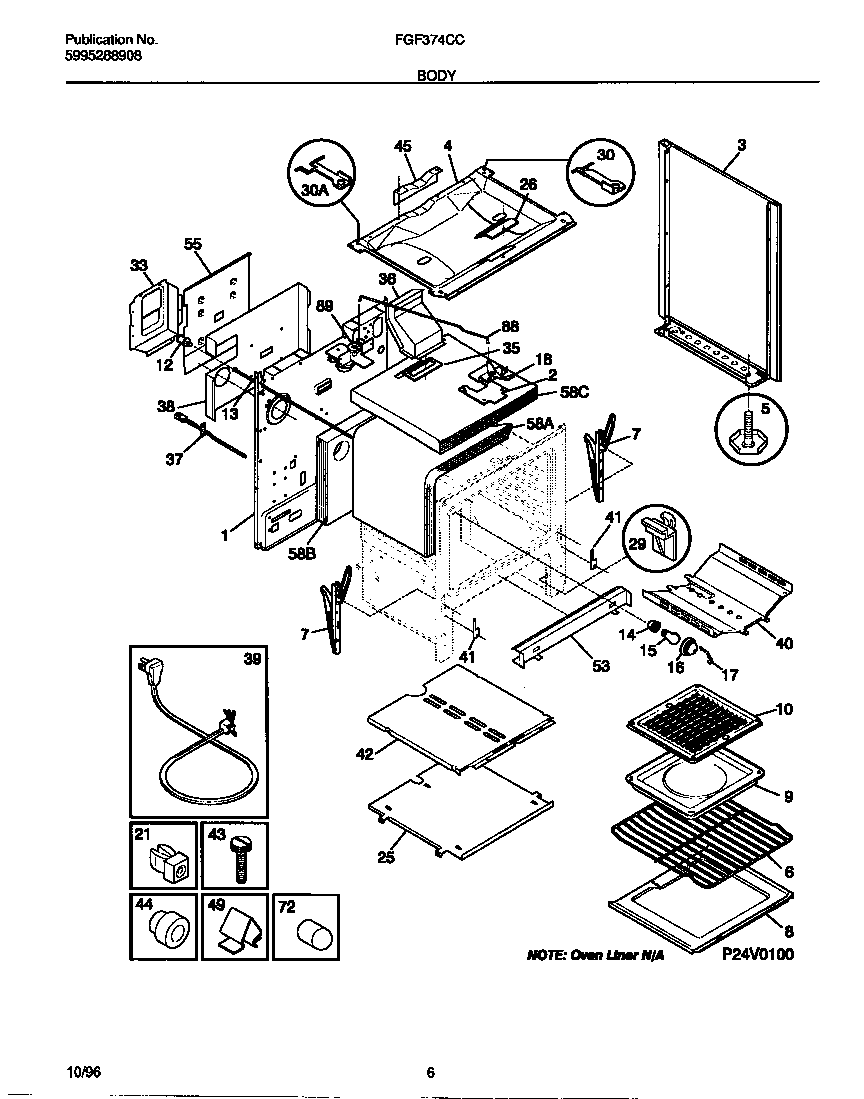

FGF374CCBE 04 – BODY

Products

Position	Product
*87845	SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*87844	Screw,cup pt ,8-18 x 0.375 ,chrome
*87846	HARNESS-WIRING, MAIN
1	WCI 316029412
2	SHIELD-OVN TOP
3	WCI 316081027
3C	BUMPER, COOKTOP (4)
3	WCI 316081026
3B	WCI 316077501
3A	WCI 08067992
4	WCI 316011914
5B	WCI 3934058
5C	316116000 Frigidaire Screw
5D	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5A	SCREW-LEVELING
6	316067902 Frigidaire Oven Rack
7B	3203010 Frigidaire Clip
7A	WCI 316007002
8A	BTTM-OVEN
8B	316064600 Frigidaire Oven Support
9	WCI 316073800
10	WCI 3205234
12	SWITCH-OVEN LIGHT, DOOR FRAME
13	WCI 316026800
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	WCI 316036300
21	SPACER-BODYSIDE, (8)
25	WCI 3131313
26	WCI 08067757
29	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
30	WCI 316059201
30	WCI 316059200
33	SHIELD, REAR WALL
35	316542102 Frigidaire Flue Gasket
36	WCI 5303272844
37	5304497424 Frigidaire Oven Temperature Sensor Probe Kit
38	WCI 316051701
39B	WCI 08067961
39A	5304515659 Frigidaire Oven Power Cord
40	WCI 3200836
41	WCI 3131570
42	SHIELD-HEAT UPPER
43	316282700 Frigidaire Oven Screw
44	3131903 Frigidaire Door/Drawer Bumper
45	WCI 08068018
49	3205821 Frigidaire Clip
53B	08067973 Frigidaire 0 Insulation
53A	SHIELD-FRONT
55	WCI 316052601
58	WCI 316054200
58	INSULATION, OVEN TOP
58	WCI 316047705
72	COVER-LIGHT/SWITCH ROD
88	WCI 316026400
89	WCI 316028101
