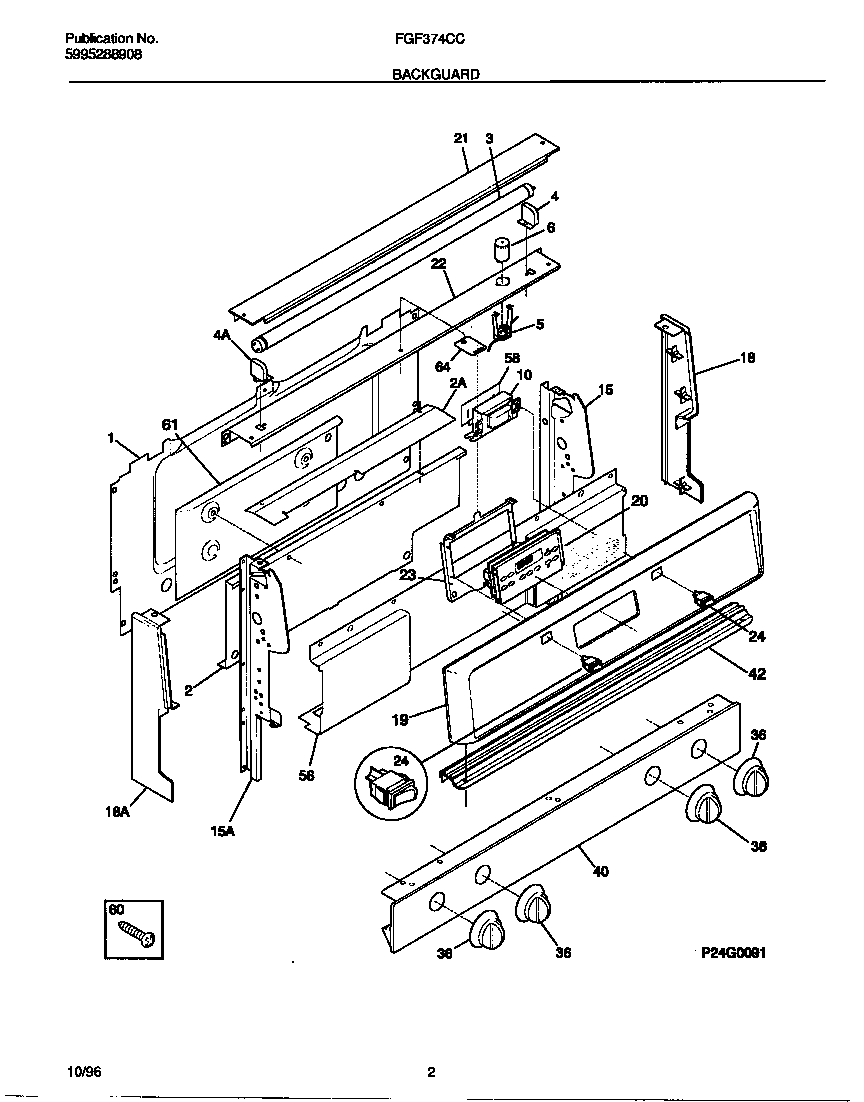

FGF374CCSE 02 – BACKGUARD

FGF374CCSE 02 – BACKGUARD

Written by

in

FGF374CCSE 02 – BACKGUARD

Products

PositionProduct
*87842WCI 5303290188
*87843WCI 316001420
*87840Screw,cup pt ,8-18 x 0.375 ,chrome
*87841WCI 5303288574
1SHIELD-BACKGUARD, REAR WALL
2WCI 316053801
2WCI 316051601
3BULB-FLUOR
4RECEPTACLE-FLU LT LH
4RECEPTACLE-FLU LT RH
5WCI 316053200
6STARTER-LAMP
10WCI 5303051115
15WCI 316049107
15WCI 316049106
18END CAP, WHITE, RH
18END CAP, WHITE, LH
19WCI 316024518
20WCI 316027412
20WCI 316076101
21WCI 316024902
22WCI 316059903
23WCI 316060003
245304527842 Frigidaire Rocker Switch
36WCI 316049305
40WCI 316086822
42WCI 316055300
56WCI 316074902
58WCI 316043400
60316021105 Frigidaire Oven Screw
61WCI 316055001
64WCI 316062400
