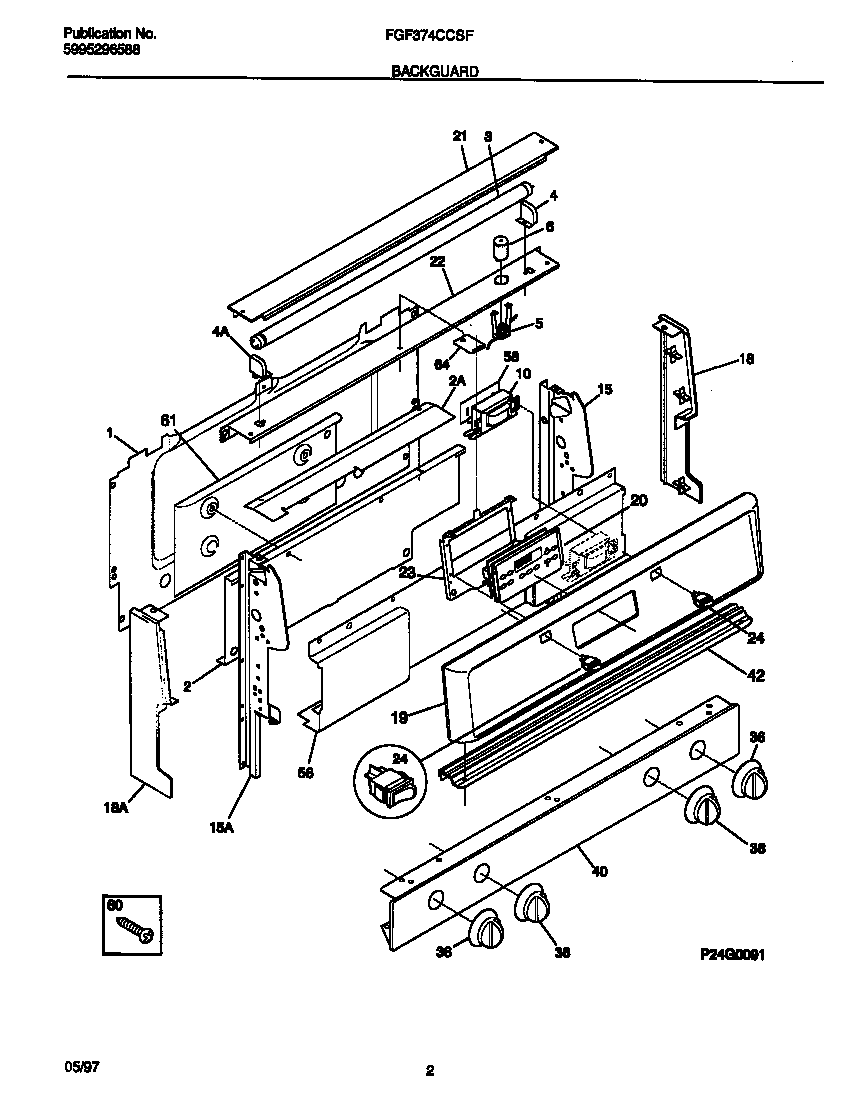

FGF374CCSF 02 – BACKGUARD

FGF374CCSF 02 – BACKGUARD

Written by

in

FGF374CCSF 02 – BACKGUARD

Products

PositionProduct
*02480Screw,cup pt ,8-18 x 0.375 ,chrome
*02481WCI 5303288574
*02483WCI 316001420
*02482WCI 5303290188
1SHIELD-BACKGUARD, REAR WALL
2WCI 316051601
2WCI 316053801
3BULB-FLUOR
4RECEPTACLE-FLU LT RH
4RECEPTACLE-FLU LT LH
5WCI 316053200
6STARTER-LAMP
10WCI 316099800
15WCI 316049104
15WCI 316049105
18END CAP, WHITE, RH
18END CAP, WHITE, LH
19WCI 316024518
20WCI 316089306
20WCI 5303935106
21WCI 316024902
22WCI 316059903
23WCI 316060002
245304527842 Frigidaire Rocker Switch
36WCI 316049305
40WCI 316086822
42WCI 316055300
56WCI 316074907
58WCI 316043400
60316021105 Frigidaire Oven Screw
64WCI 316062400
