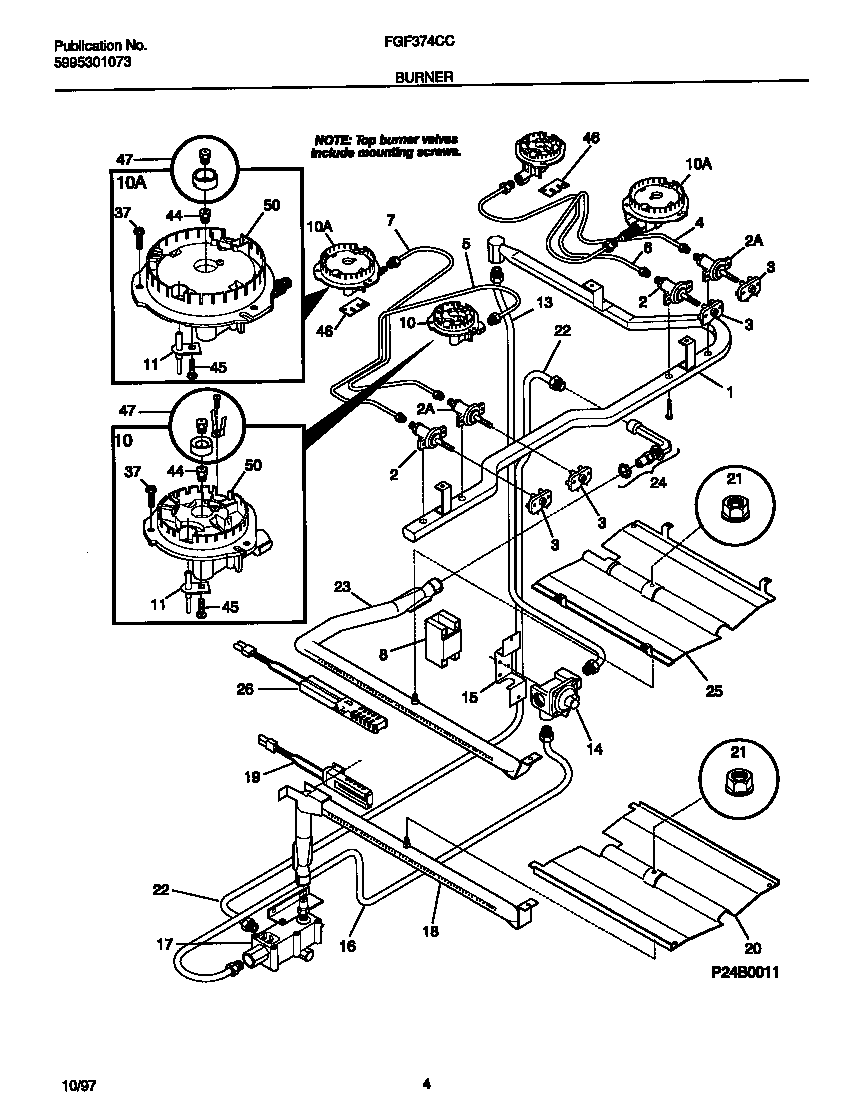

FGF374CCSJ 03 – BURNER

FGF374CCSJ 03 – BURNER

Written by

in

FGF374CCSJ 03 – BURNER

Products

PositionProduct
1WCI 316066201
2VALVE-TOP BURNER, LARGE
2AWCI 5303935130
2B316048200 Frigidaire Oven Screw
3SWITCH-IGNITOR
4WCI 316059612
5316059613 Frigidaire Oven Tube-LF
6WCI 316059614
7316059615 Frigidaire Oven Tube
8A5304505695 Frigidaire Oven Module
8BHARNESS-WIRING, MODULE/IGNITER (NON-ILLUSTRATED)
10Burner Assy-top,sealed ,large ,11,100 BTU,(2), includes ,11,37,44,45
10BURNER ASSY-TOP, SEALED, (4), INCLUDES, 11, 37, 44, 45,
11316011200 Frigidaire Oven Top Burner Igniter
13WCI 316065005
14B316021104 Frigidaire Oven Screw Assembly
14A5304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
16WCI 316065003
17A5303208499 Frigidaire Safety Gas Valve
17B316089500 Frigidaire Oven Screw
18WCI 3131290
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20BAFFLE-OVN BURNER
215303013272 Frigidaire Oven Nut
22WCI 316065002
23WCI 316087900
24WCI 316070400
25WCI 5303210379
265303935068 Frigidaire Flat Igniter
37316069301 Frigidaire Oven Burner Mounting Primary Screw
44AWCI 316010804
44BORIFICE-TOP BURNER, (4)
45WCI 316011100
46WCI 316074700
47WCI 5303307190
