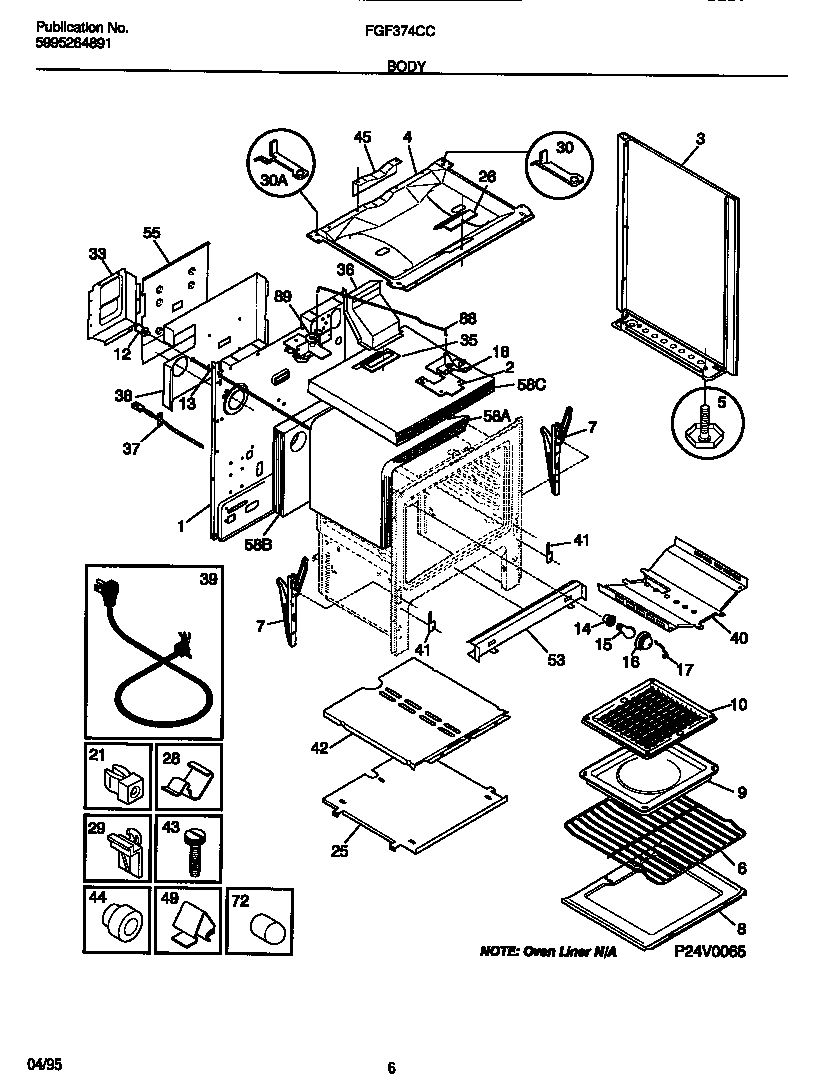

FGF374CCTA 04 – BODY

FGF374CCTA 04 – BODY

Written by

in

FGF374CCTA 04 – BODY

Products

PositionProduct
*23563WCI 5303281584
*23564HARNESS-WIRING, MAIN
*23567TOUCH, UP PAINT, ALMOND (NI)
1WCI 316029410
2SHIELD-OVN TOP
3WCI 316081007
3WCI 08067992
3WCI 316081006
4WCI 316011912
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5ASCREW-LEVELING
5C316116000 Frigidaire Screw
5BWCI 3934058
6316067902 Frigidaire Oven Rack
7AWCI 316007002
7B3203010 Frigidaire Clip
8ABTTM-OVEN
8B316064600 Frigidaire Oven Support
9WCI 316073800
10WCI 316073900
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3131313
26WCI 08067757
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30BRACKET-HINGE, MAIN TOP, LH
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
38WCI 316051701
39A5304515659 Frigidaire Oven Power Cord
39BWCI 08067961
40BSCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
40AWCI 3200836
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
493205821 Frigidaire Clip
53B08067973 Frigidaire 0 Insulation
53ASHIELD-FRONT
55WCI 316052601
58WCI 316054200
58INSULATION, OVEN TOP
58WCI 316047705
72COVER-LIGHT/SWITCH ROD
88WCI 316026400
89WCI 316028101
