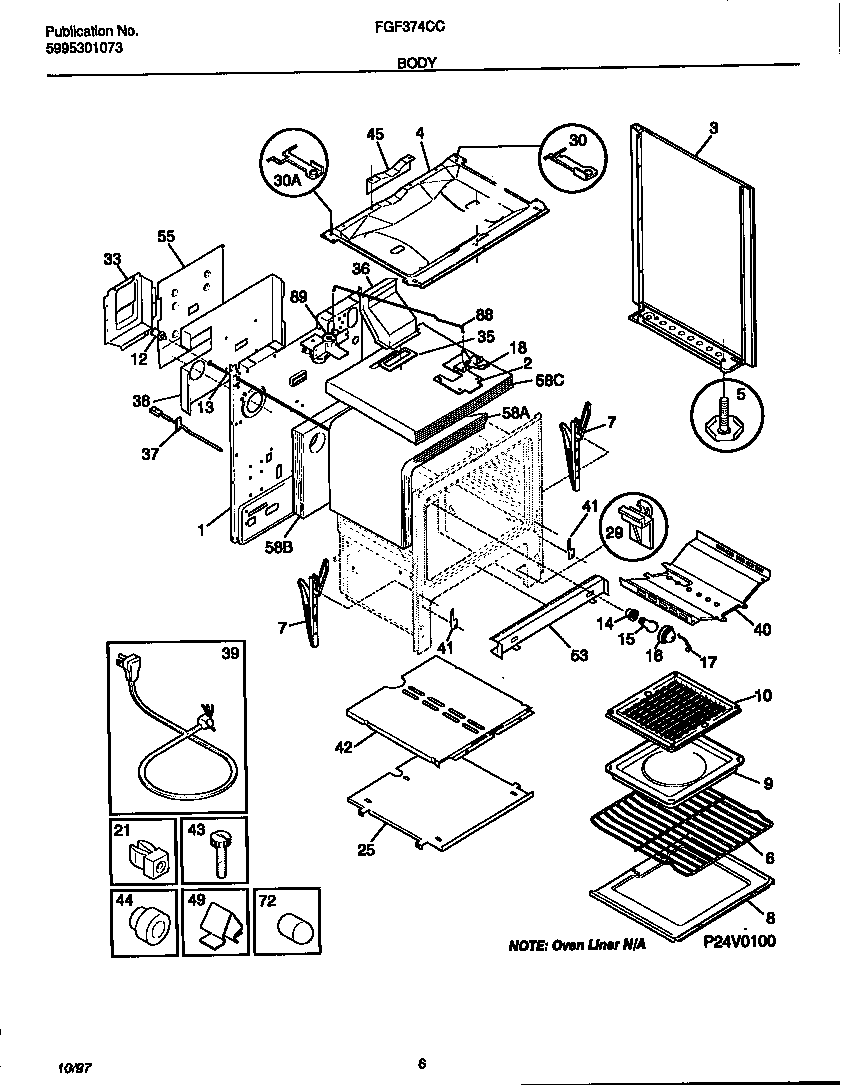

FGF374CCTH 04 – BODY

Products

Position	Product
*85806	Clip,wiring harness ,green ,main top
*85804	HARNESS-WIRING, MAIN
*85805	Screw,cup pt ,8-18 x 0.375 ,chrome
1	WCI 316029412
2	SHIELD-OVN TOP
3B	BUMPER, COOKTOP (4)
3	PANEL-BODYSIDE,ALMOND ,LH
3	WCI 08067992
3	WCI 316081030
3A	WCI 316088100
4	WCI 316011914
5D	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5C	316116000 Frigidaire Screw
5B	WCI 3934058
5A	SCREW-LEVELING
6	316067902 Frigidaire Oven Rack
7A	WCI 316007002
7B	3203010 Frigidaire Clip
8B	316064600 Frigidaire Oven Support
8A	BTTM-OVEN
9	WCI 316073800
10	WCI 3205234
12	SWITCH-OVEN LIGHT, DOOR FRAME
13	WCI 316026800
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	WCI 316036300
21	SPACER-BODYSIDE, (8)
25	WCI 5303288580
29	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
30	WCI 316059200
30	WCI 316059201
33	SHIELD, REAR WALL
35	316542102 Frigidaire Flue Gasket
36	WCI 5303272844
37	5304497424 Frigidaire Oven Temperature Sensor Probe Kit
38	WCI 316051700
39A	5304515659 Frigidaire Oven Power Cord
39B	WCI 08067961
40B	SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
40A	WCI 3200836
41	WCI 3131570
42	WCI 5303288578
43	316282700 Frigidaire Oven Screw
44	3131903 Frigidaire Door/Drawer Bumper
45	WCI 08068018
49	3205821 Frigidaire Clip
53B	08067973 Frigidaire 0 Insulation
53A	WCI 5303288579
55	WCI 316052601
58	WCI 316047705
58	WCI 316054200
58	INSULATION, OVEN TOP
72	COVER-LIGHT/SWITCH ROD
88	WCI 316026400
89	WCI 316028101
