FGF376CEBG 04 – BODY

FGF376CEBG 04 – BODY

Written by

in

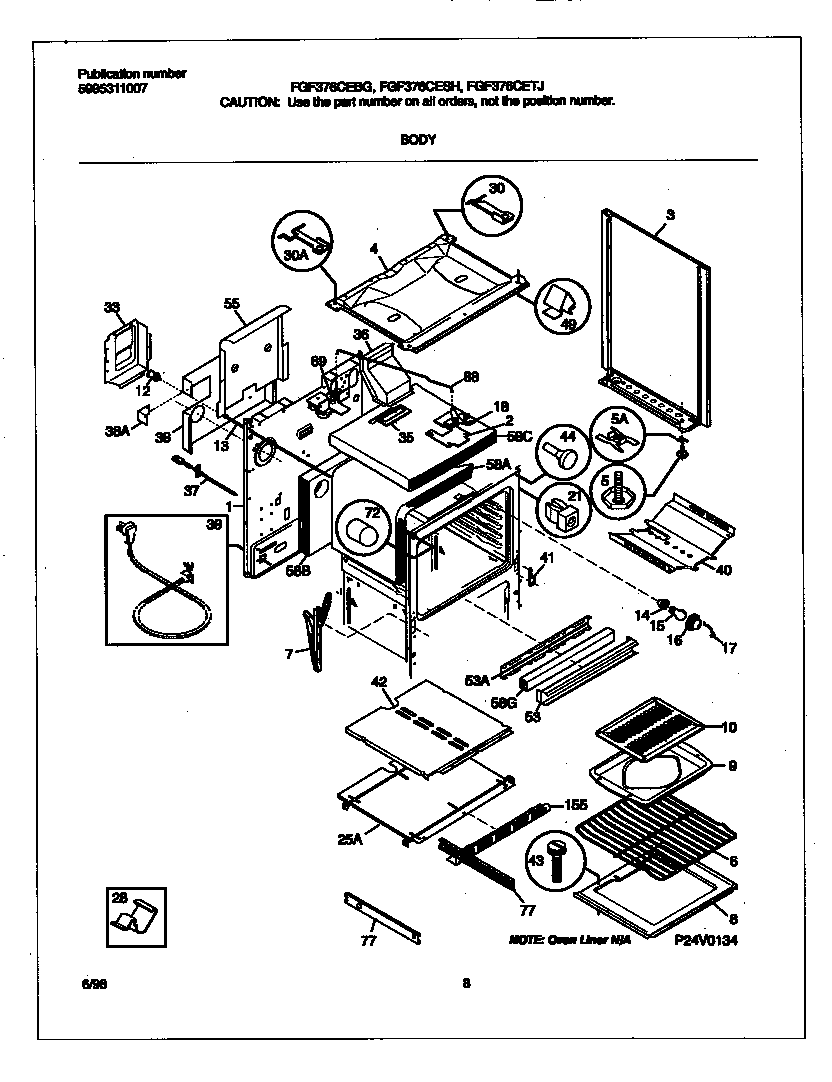

FGF376CEBG 04 – BODY

Products

PositionProduct
*39698316064600 Frigidaire Oven Support
*396973203010 Frigidaire Clip
*39695WCI 3934058
*39696316116000 Frigidaire Screw
*39691Screw,cup pt ,8-18 x 0.375 ,chrome
*39700SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*39699WCI 08067961
*39692WCI 316081027
1WCI 316029412
2SHIELD-OVN TOP
3WCI 316081026
4WCI 316011914
5SCREW-LEVELING
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7WCI 316007002
8BTTM-OVEN
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25Shield,warmer drawer ,upper
28CLIP-WIRE
30WCI 316059201
30WCI 316059200
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
38WCI 316051700
38WCI 316097100
395304534000 Frigidaire Cord
40WCI 3200836
41WCI 3131570
42WCI 5303288578
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
493205821 Frigidaire Clip
53WCI 08067992
53WCI 5303288579
55WCI 316107800
58WCI 316054200
58INSULATION, OVEN TOP
5808067973 Frigidaire 0 Insulation
58WCI 316047705
60316021105 Frigidaire Oven Screw
72COVER-LIGHT/SWITCH ROD
77316105501 Frigidaire P-1 Glide
88WCI 316026400
89WCI 316028103
155WCI 316095201
