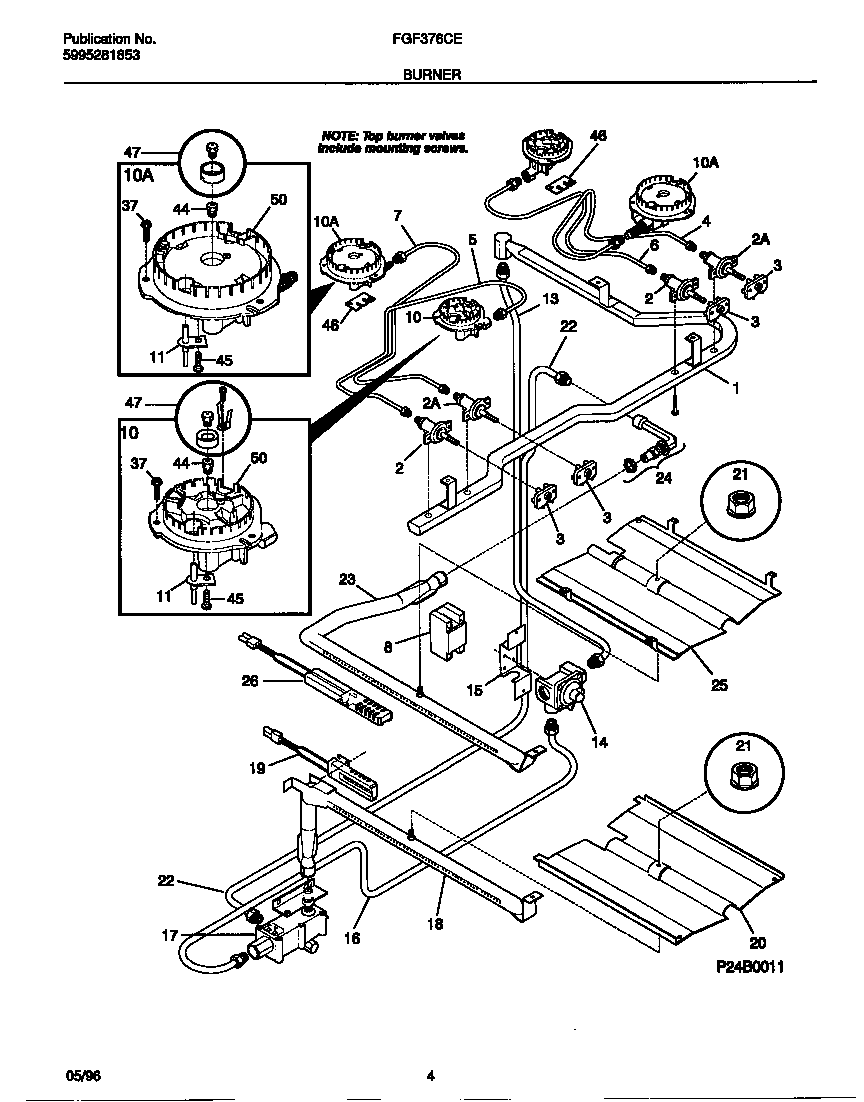

FGF376CESA 03 – BURNER

FGF376CESA 03 – BURNER

Written by

in

FGF376CESA 03 – BURNER

Products

PositionProduct
1WCI 316066201
2B316048200 Frigidaire Oven Screw
2AVALVE, TOP BURNER, (4), WITH MTG SCREWS
2WCI 316050602
3ASWITCH-IGNITER, (4)
3BSWITCH HARNESS TERMINAL KIT
4WCI 316059612
5316059613 Frigidaire Oven Tube-LF
6WCI 316059614
7316059615 Frigidaire Oven Tube
8A5304505695 Frigidaire Oven Module
8BHARNESS-WIRING, MODULE/IGNITER (NON-ILLUSTRATED)
10BURNER ASSY-TOP, SEALED, (4), INCLUDES, 11, 37, 44, 45,
10Burner Assy-top,sealed ,large ,11,100 BTU,(2), includes ,11,37,44,45
11316011200 Frigidaire Oven Top Burner Igniter
13WCI 316065005
14B316021104 Frigidaire Oven Screw Assembly
14A5303935125 Frigidaire Pressure Regulator
15316091600 Frigidaire Oven Bracket
16WCI 316065003
175303208499 Frigidaire Safety Gas Valve
18WCI 3131290
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20BWCI 5303288408
20ABAFFLE-OVN BURNER
215303013272 Frigidaire Oven Nut
22WCI 316065002
23WCI 08067935
24WCI 316070400
25WCI 5303210379
265303935068 Frigidaire Flat Igniter
37316069301 Frigidaire Oven Burner Mounting Primary Screw
44ORIFICE-TOP BURNER, (4)
45WCI 316011100
46WCI 316074700
47AWCI 5303286386
47BWCI 5303307190
50BBURNER-TOP, (4), INCLUDES 37
50AWCI 316090201
