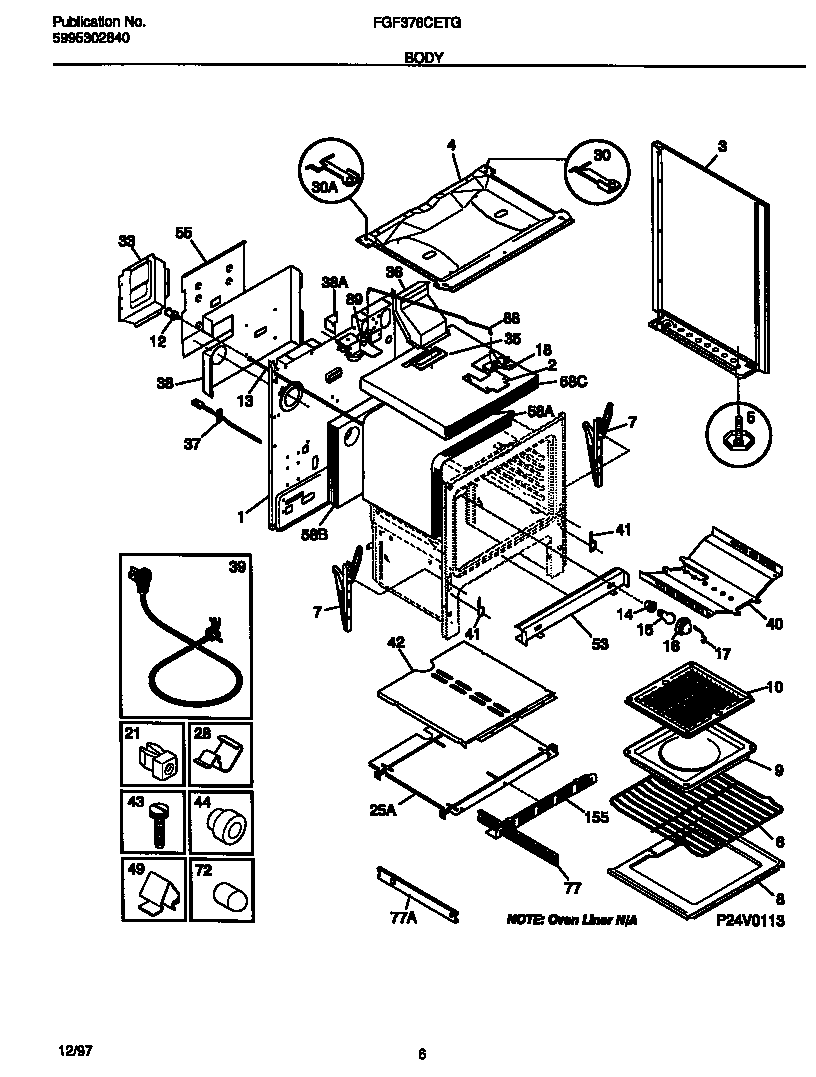

FGF376CETG 04 – BODY

Products

PositionProduct
*84340Screw,cup pt ,8-18 x 0.375 ,chrome
*84334NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
*84333316116000 Frigidaire Screw
*84332WCI 3934058
*84338SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*84337WCI 08067961
*843353203010 Frigidaire Clip
*8433908067973 Frigidaire 0 Insulation
*84329PANEL-BODYSIDE,ALMOND ,LH
*84336316064600 Frigidaire Oven Support
*84330WCI 08067992
*84331WCI 316088100
1WCI 316029412
2SHIELD-OVN TOP
3WCI 316081030
4WCI 316011914
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007002
8BTTM-OVEN
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25Shield,warmer drawer ,upper
30WCI 316059200
30WCI 316059201
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
38WCI 316097100
38WCI 316051700
395304534000 Frigidaire Cord
40WCI 3200836
41WCI 3131570
42WCI 5303288578
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
493205821 Frigidaire Clip
53WCI 5303288579
55WCI 316052601
58WCI 316054200
58WCI 316047705
58INSULATION, OVEN TOP
72COVER-LIGHT/SWITCH ROD
77RAIL-DRAWER,LH,OUTER
77Rail,drawer ,RH outer
88WCI 316026400
89WCI 316028103
155WCI 316095201
