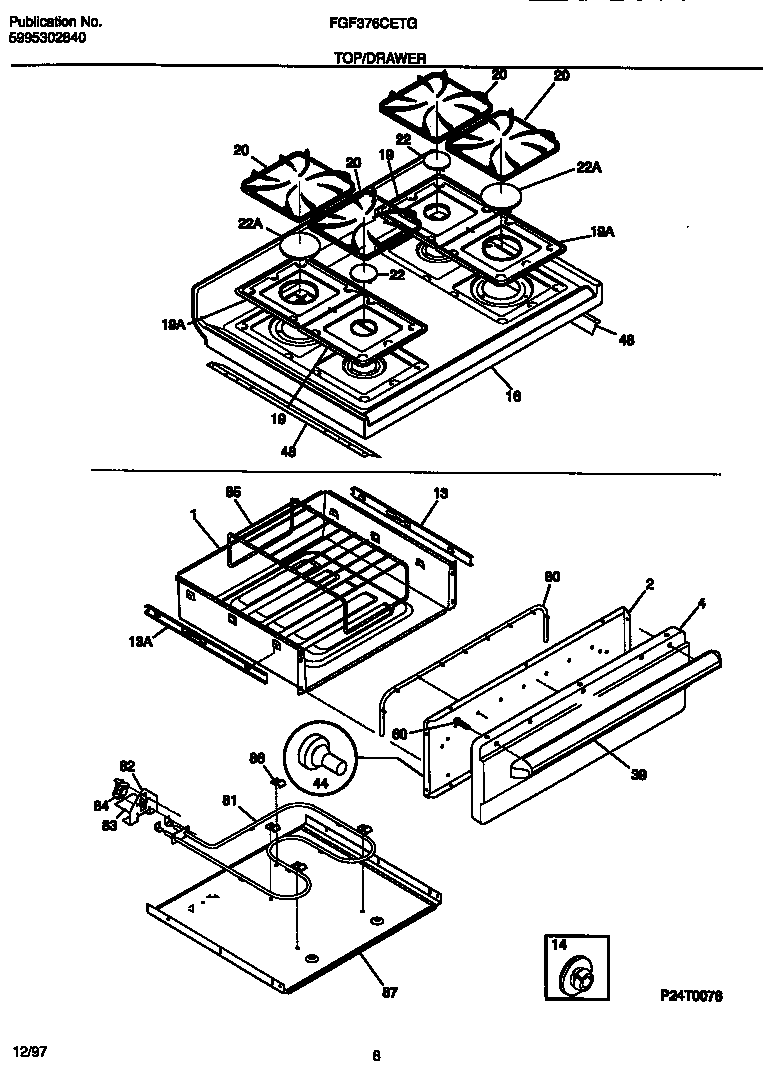

FGF376CETG 05 – TOP/DRAWER

FGF376CETG 05 – TOP/DRAWER

Written by

in

FGF376CETG 05 – TOP/DRAWER

Products

PositionProduct
*84341RIVET-POP, WARING-PLATE
*84345WCI 5303280311
*84344Clip,wiring harness ,green ,main top
*84346131243700 Frigidaire Screw
*84343Screw,cup pt ,8-18 x 0.375 ,chrome
*84342316021105 Frigidaire Oven Screw
1WCI 316094601
2WCI 316092901
4WCI 316056206
13WCI 316096500
13WCI 316096501
14WCI 3206216
16WCI 5303307710
19WCI 316011414
19Pan-burner,large ,almond
20GRATE,GRAY ,(4)
22CAP-BURNER, GRAY, LARGE, (1)
22CAP-BURNER, DARK GRAY, (4)
39WCI 316026104
443131903 Frigidaire Door/Drawer Bumper
48Shield,deflector ,main top panel ,(2)
60WCI 5303288574
80WCI 316093000
81WCI 316093100
82316093200 Frigidaire Bracket
83WCI 316093300
84WCI 316093500
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 316091900
