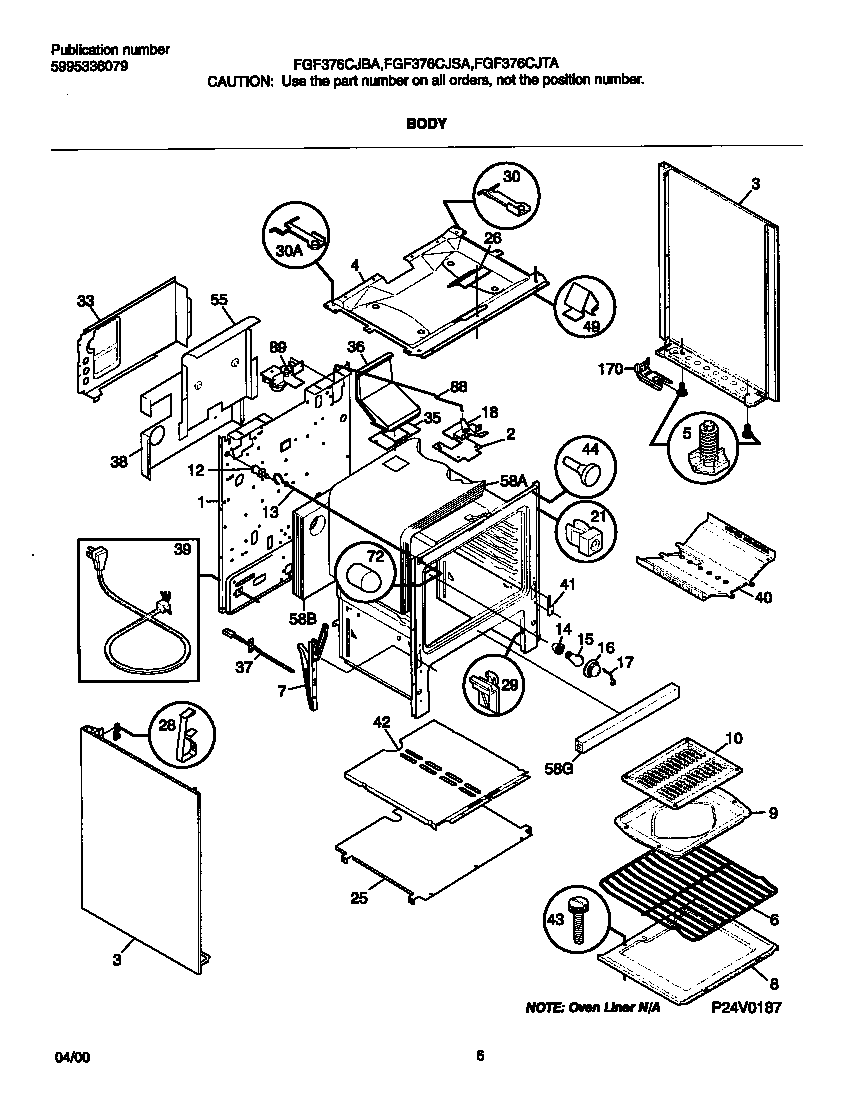

FGF376CJTA 04 – BODY

FGF376CJTA 04 – BODY

Written by

in

FGF376CJTA 04 – BODY

Products

PositionProduct
*19616Screw,cup pt ,8-18 x 0.375 ,chrome
*19619SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*19620WCI 5303288579
*19614WIRING HARNESS,CHASSIS
*19617316116000 Frigidaire Screw
*19613WCI 08067992
*19615316021105 Frigidaire Oven Screw
1WCI 316029416
2SHIELD-OVN TOP
3WCI 316081036
3WCI 316081037
4WCI 316011917
5WCI 316129200
6316067902 Frigidaire Oven Rack
7WCI 316007005
8BTTM-OVEN
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 5303288580
26WCI 08067757
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30WCI 316059200
30WCI 316059201
33WCI 5303288495
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
38WCI 316051700
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
41WCI 3131570
42WCI 5303288578
43316282700 Frigidaire Oven Screw
493205821 Frigidaire Clip
55WCI 316107800
58INSULATION, OVEN WRAPPER
58WCI 316054200
5808067973 Frigidaire 0 Insulation
72COVER-LIGHT/SWITCH ROD
88WCI 316026400
89WCI 316028101
1353131903 Frigidaire Door/Drawer Bumper
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
255316064600 Frigidaire Oven Support
