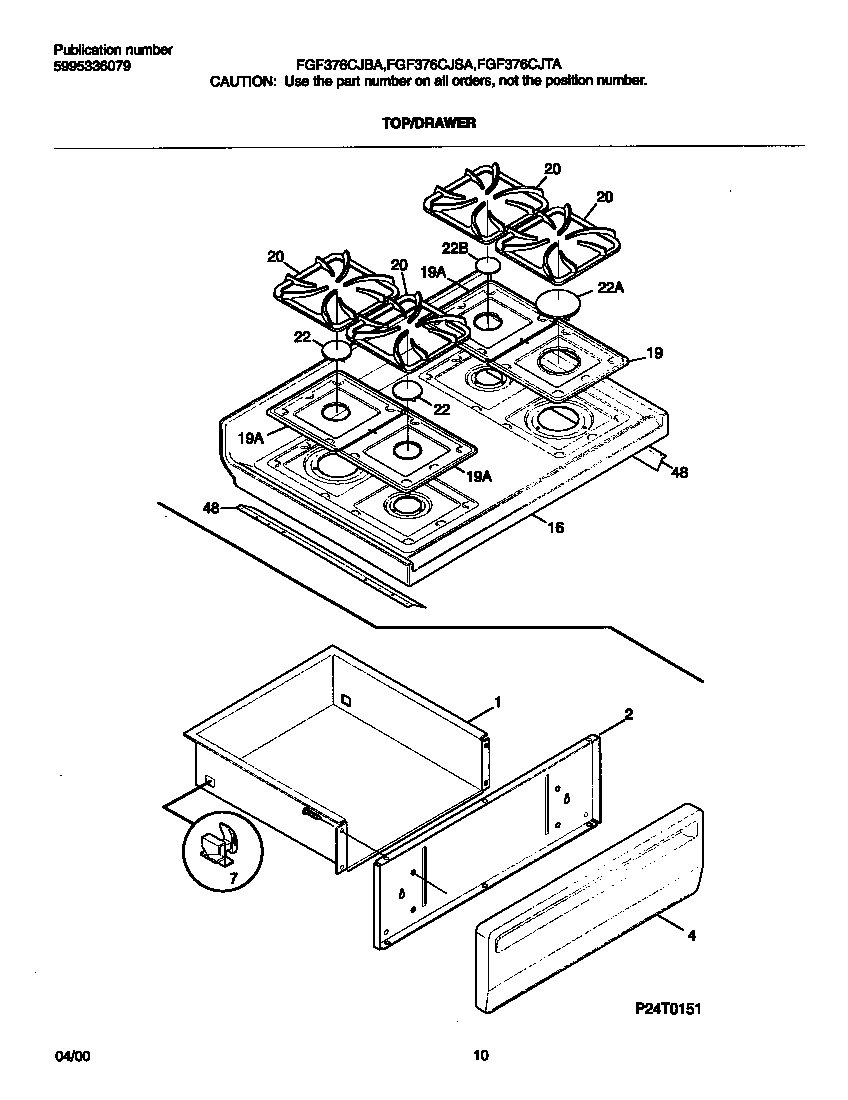

FGF376CJTA 05 – TOP/DRAWER

FGF376CJTA 05 – TOP/DRAWER

Written by

in

FGF376CJTA 05 – TOP/DRAWER

Products

PositionProduct
*19624316021105 Frigidaire Oven Screw
*19627WCI 316089600
*19629SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*19623WCI 316021216
*19628WCI 5303280311
*19625Screw,cup pt ,8-18 x 0.375 ,chrome
*19626316021109 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
9WCI 316073800
10BWCI 5303280308
10AWCI 3205234
16WCI 316114802
20GRATE,GRAY ,(4)
21CAP-BURNER,LARGE ,GLOSS GRAY
22WCI 316118801
22Cap-burner,small ,gray ,(4)
48Shield,deflector ,main top panel ,(2)
1353131903 Frigidaire Door/Drawer Bumper
