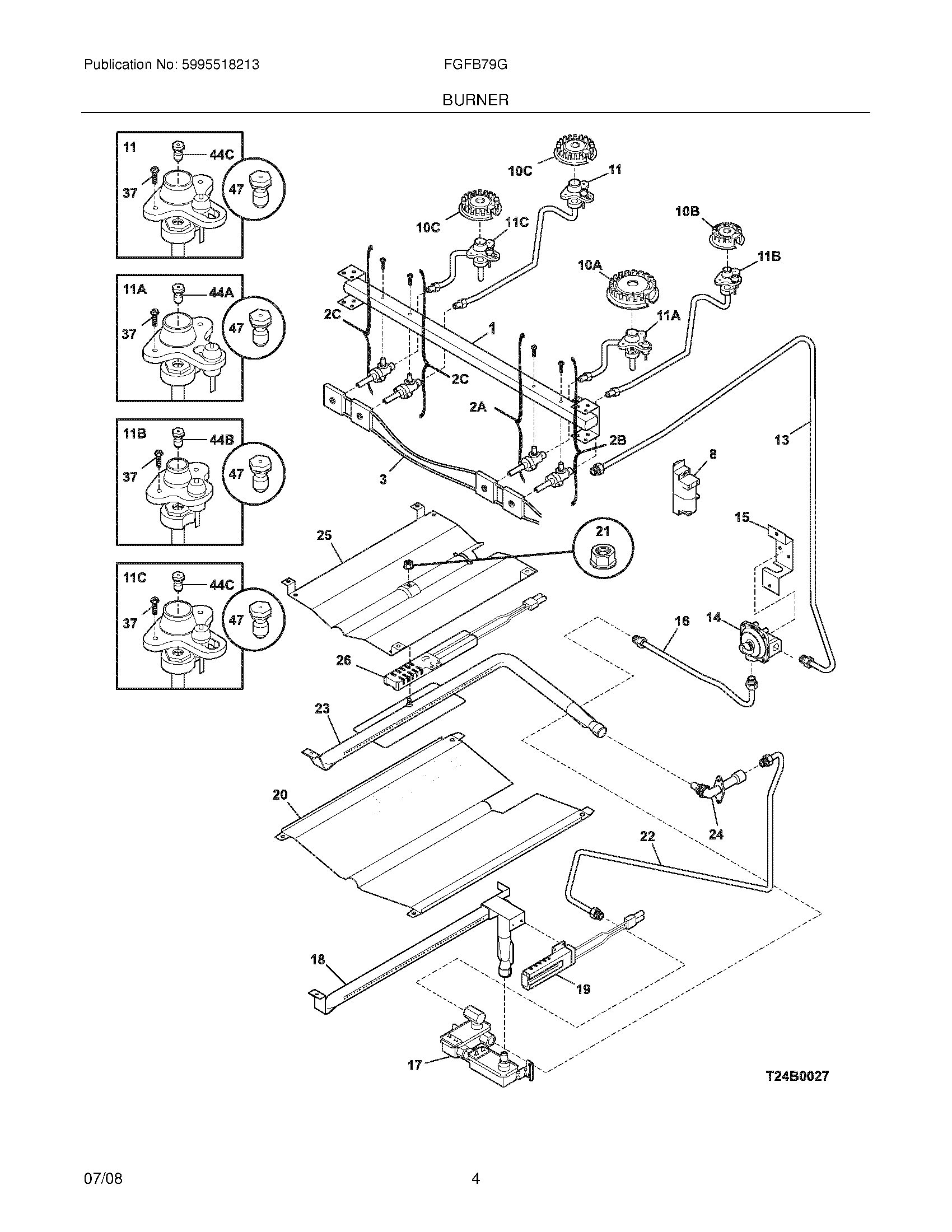

FGFB79GBC 05 – BURNER

FGFB79GBC 05 – BURNER

Written by

in

FGFB79GBC 05 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NI316215600 Frigidaire Oven Screw
NI316401500 Frigidaire Oven Cover
NI5303271648 Frigidaire Oven Screw
NI316498100 Frigidaire Shield
NI316248105 Frigidaire Instructions /Lp Conversion Kit Ns
NIWIRING HARNESS,IGNITOR MODU
1316417900 Frigidaire Pipe Manifold
2B316536003 Frigidaire Valve-Top Burner
2C316536000 Frigidaire Top Burner Valve
2A316536002 Frigidaire Valve-Top Burner
3WCI 316219016
85304505695 Frigidaire Oven Module
10C316212400 Frigidaire Oven Primary Burner
10BWCI 316206400
10AWCI 316223400
11B316237707 Frigidaire Igniter/Orifice Assembly
11316237704 Frigidaire Igniter/Orifice Assembly
11C316237805 Frigidaire Orifice Assembly Igniter
11A316272000 Frigidaire Igniter Holder and Orifice
13316489100 Frigidaire Oven Tube
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
165304507348 Frigidaire Oven Tube
17316404901 Frigidaire Oven Valve
18316404400 Frigidaire Oven Burner
195304534663 Frigidaire Igniter
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
225304507768 Frigidaire Oven Tube
23WCI 316404300
245304516894 Frigidaire Oven Elbow
25WCI 316401301
26316489401 Frigidaire Igniter Assembly
37316240600 Frigidaire Igniter Mounting Screw
44C316237902 Frigidaire Orifice Top Burner
44BWCI 316237903
44A316237900 Frigidaire Oven Orifice Assembly
47GRLP3 Frigidaire Oven LP Conversion Kit
