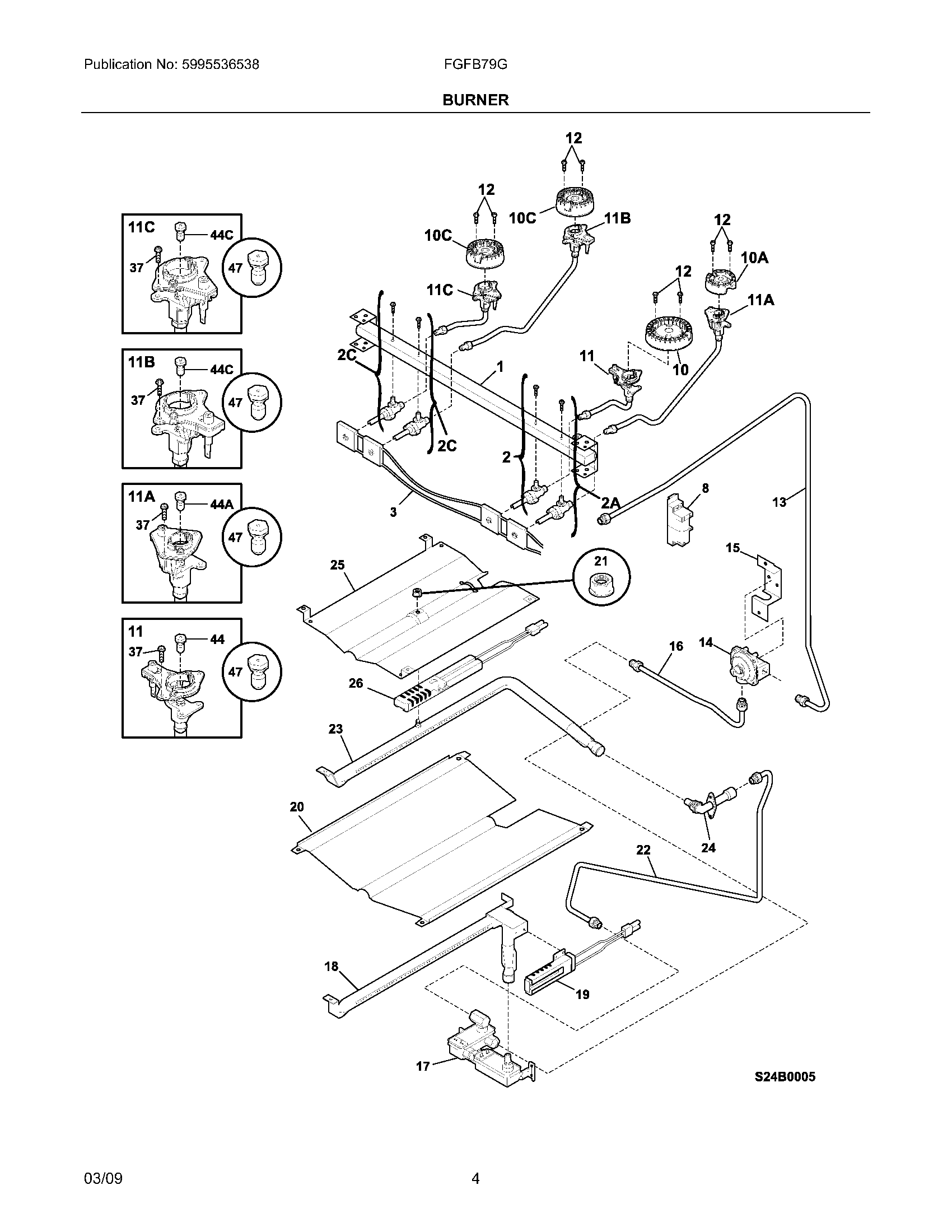

FGFB79GBE 05 – BURNER

FGFB79GBE 05 – BURNER

Written by

in

FGFB79GBE 05 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NI316215600 Frigidaire Oven Screw
NI316401500 Frigidaire Oven Cover
NI316417518 Frigidaire Instructions
NI316498100 Frigidaire Shield
NIWCI 316443200
NIWCI 316526901
NI316001017 Frigidaire Screw
1316417900 Frigidaire Pipe Manifold
2A5303935308 Frigidaire Oven Valve
25303935307 Frigidaire Oven Valve
2C5303935305 Frigidaire Oven Valve
3316219019 Frigidaire Wiring Harness
85304505695 Frigidaire Oven Module
10C316558300 Frigidaire Oven 9.5L Sealed Burner
10A316438200 Frigidaire Range Sealed Burner, 5K
10316438600 Frigidaire Range Sealed Burner, 14K
11A316536610 Frigidaire Igniter Assembly/Orifice
11C316536602 Frigidaire Oven Igniter/Orifice Assembly
11316536614 Frigidaire Igniter/Orifice Assembly
11B316536600 Frigidaire Igniter Assembly
12WCI 316529700
13316489100 Frigidaire Oven Tube
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
165304507348 Frigidaire Oven Tube
17316404901 Frigidaire Oven Valve
18316404400 Frigidaire Oven Burner
195304534663 Frigidaire Igniter
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
225304507768 Frigidaire Oven Tube
23WCI 316404300
245304516894 Frigidaire Oven Elbow
25WCI 316401301
26316489401 Frigidaire Igniter Assembly
37316240600 Frigidaire Igniter Mounting Screw
44A316527504 Frigidaire Oven Orifice
44316527511 Frigidaire Oven Orifice
44C316527500 Frigidaire Oven Burner Orifice
47GRLP3 Frigidaire Oven LP Conversion Kit
