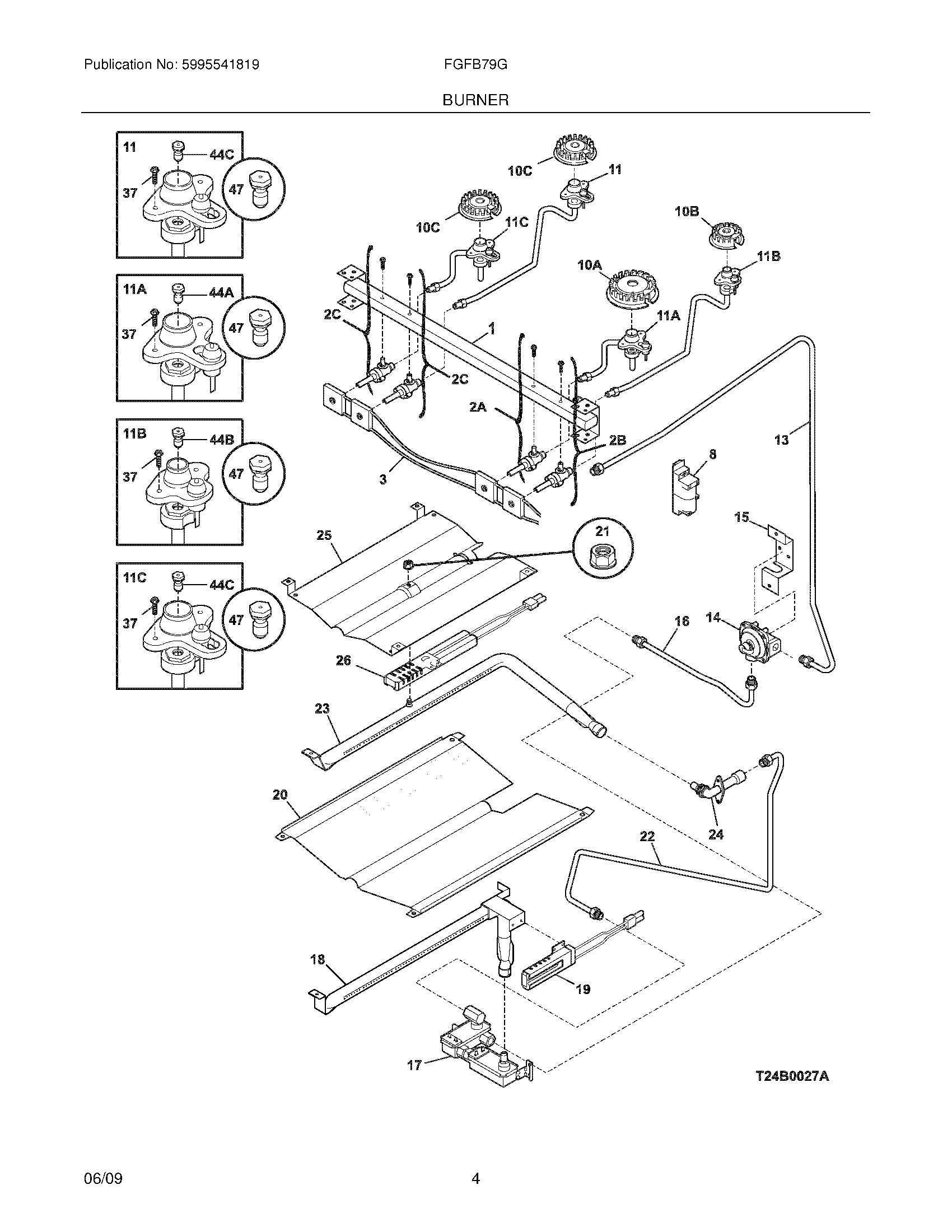

FGFB79GCE 05 – BURNER

FGFB79GCE 05 – BURNER

Written by

in

FGFB79GCE 05 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NI316001017 Frigidaire Screw
NIWCI 316443200
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316498100 Frigidaire Shield
NI316417518 Frigidaire Instructions
NI316401500 Frigidaire Oven Cover
NI316021105 Frigidaire Oven Screw
NI316215600 Frigidaire Oven Screw
NIWCI 316526901
1316417900 Frigidaire Pipe Manifold
2C5303935305 Frigidaire Oven Valve
2A5303935307 Frigidaire Oven Valve
2B5303935308 Frigidaire Oven Valve
3316219019 Frigidaire Wiring Harness
85304505695 Frigidaire Oven Module
10BWCI 316206401
10C316212400 Frigidaire Oven Primary Burner
10AWCI 316223400
11C316237805 Frigidaire Orifice Assembly Igniter
11A316272000 Frigidaire Igniter Holder and Orifice
11316237704 Frigidaire Igniter/Orifice Assembly
11B316237707 Frigidaire Igniter/Orifice Assembly
13316489100 Frigidaire Oven Tube
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
165304507348 Frigidaire Oven Tube
17316404901 Frigidaire Oven Valve
18316404400 Frigidaire Oven Burner
195304534663 Frigidaire Igniter
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
225304507768 Frigidaire Oven Tube
23WCI 316404300
245304516894 Frigidaire Oven Elbow
25WCI 316401301
26316489401 Frigidaire Igniter Assembly
37316240600 Frigidaire Igniter Mounting Screw
44A316237900 Frigidaire Oven Orifice Assembly
44BWCI 316237903
44C316237902 Frigidaire Orifice Top Burner
47GRLP3 Frigidaire Oven LP Conversion Kit
