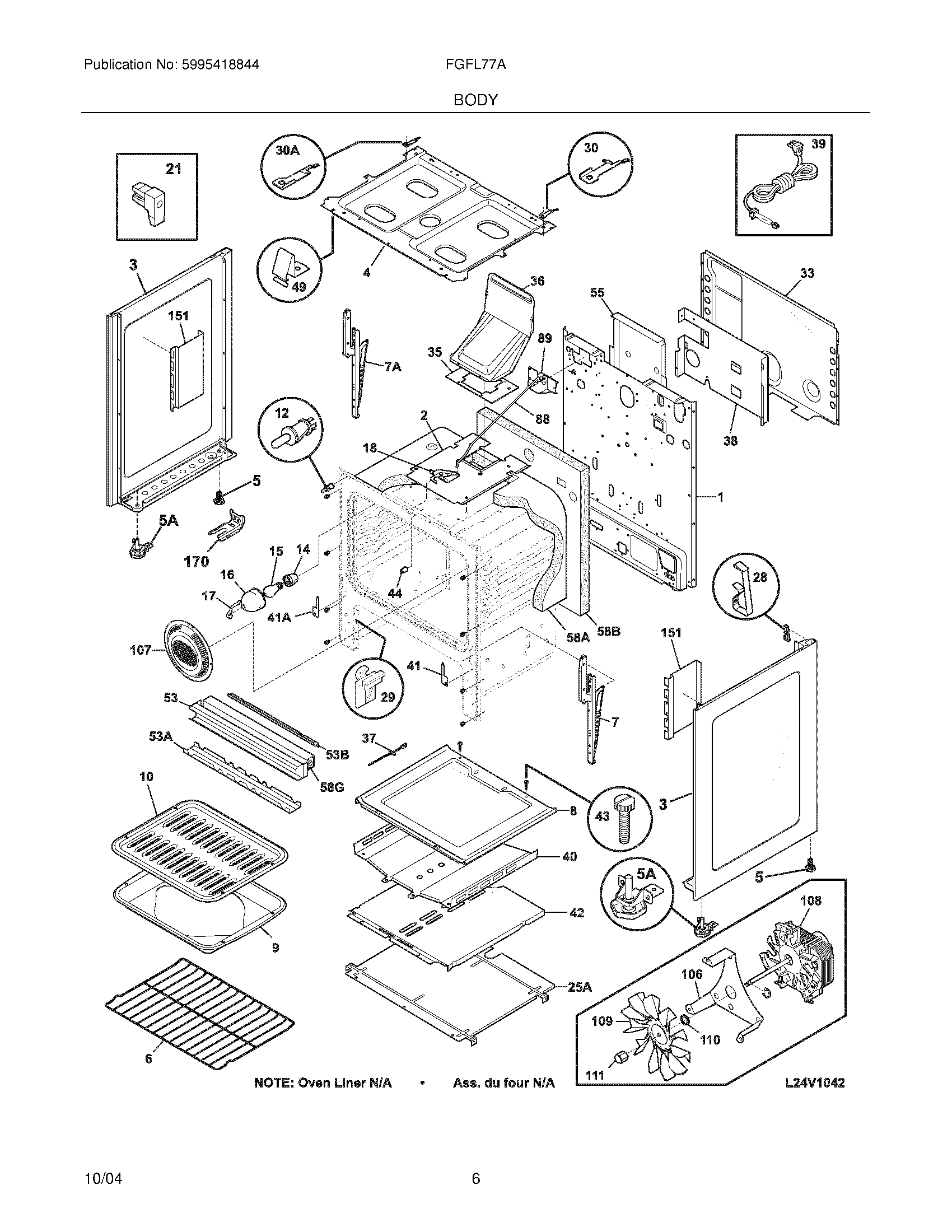

FGFL77ABJ 07 – BODY

FGFL77ABJ 07 – BODY

Written by

in

FGFL77ABJ 07 – BODY

Products

PositionProduct
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316089500 Frigidaire Oven Screw
NI316021132 Frigidaire Screw
NI316231800 Frigidaire Cover
NI316021109 Frigidaire Oven Screw
NIWCI 5303280311
NIWCI 316253411
NI316021105 Frigidaire Oven Screw
NI5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI5303285179 Frigidaire Oven Door Screw
1WCI 316029416
2SHIELD-OVN TOP
3316400145 Frigidaire Panel Assembly
3316400144 Frigidaire Panel
4WCI 316201403
5A5304509869 Frigidaire Oven Leveling Leg Assembly
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
6316067902 Frigidaire Oven Rack
7316216500 Frigidaire P-1 Hinge Oven Door Rh
7A316566205 Frigidaire Oven Hinge
8PANEL-OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12WCI 316209901
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316213900
21316408000 Frigidaire Oven Clip Assembly
25AWCI 5303288580
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30316217700 Frigidaire Oven Bracket
30AWCI 316217701
33WCI 316232800
35316542102 Frigidaire Flue Gasket
36FLUE
37316233903 Frigidaire Range Oven Temperature Sensor
38WCI 316051700
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
41AWCI 316233500
41WCI 316233400
42WCI 5303288578
43316282700 Frigidaire Oven Screw
44Spacer,oven door
49WCI 316234200
53WCI 5303288579
53BWCI 316211100
53AWCI 08067992
555304510473 Frigidaire Shield
58G08067973 Frigidaire 0 Insulation
58BWCI 316218304
58AINSULATION, OVEN WRAPPER
88316232702 Frigidaire Rod
89MOTOR
106WCI 316026600
107316026701 Frigidaire Oven Cover Assembly
108WCI 316234601
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
110316008401 Frigidaire Washer P-1
111316136600 Frigidaire Oven Range Lock Nut
151WCI 316404600
170316112500 Frigidaire Oven Template
170316116000 Frigidaire Screw
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
