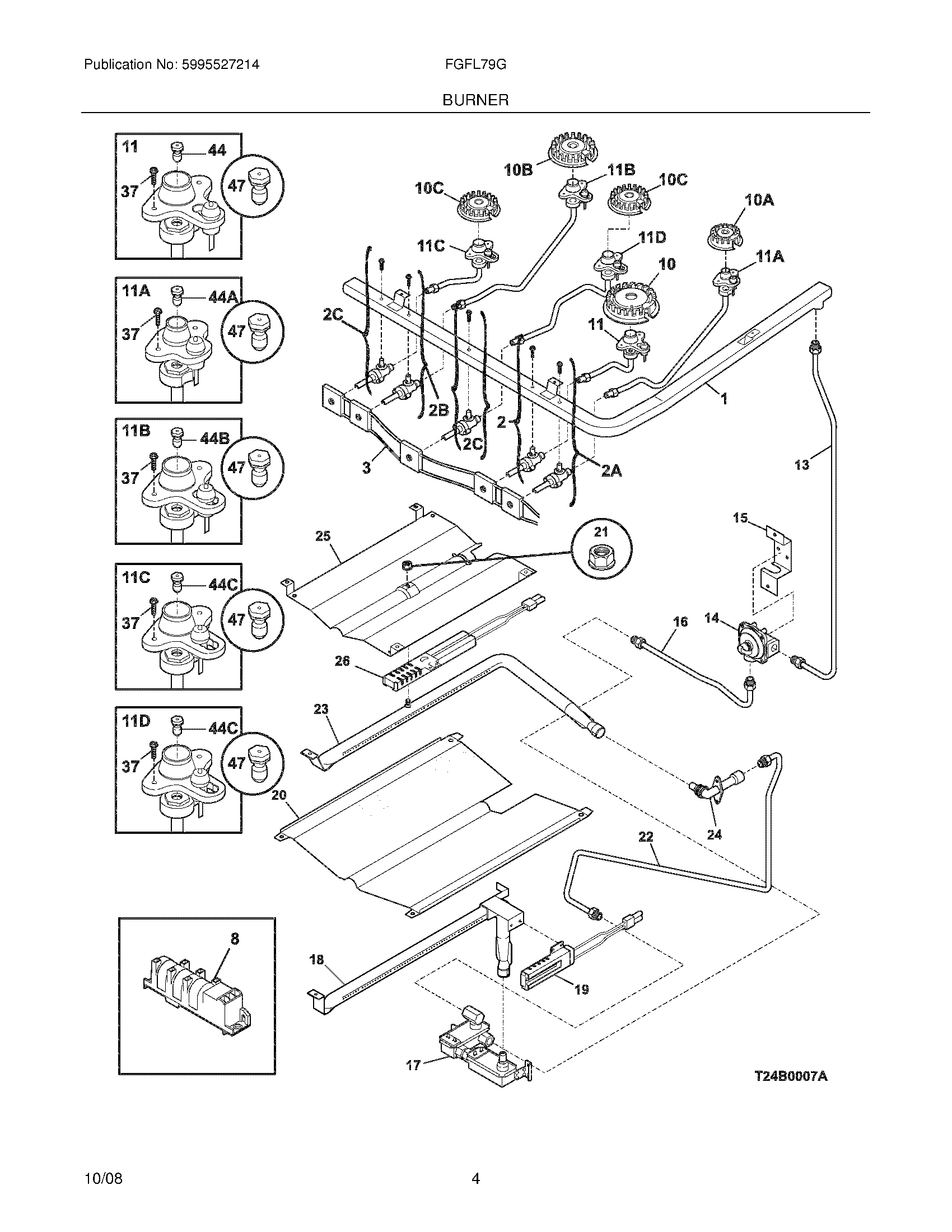

FGFL79GQC 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	316001017 Frigidaire Screw
NI	316248105 Frigidaire Instructions /Lp Conversion Kit Ns
NI	WCI 316064103
NI	WCI 316253702
NI	316215600 Frigidaire Oven Screw
NI	316401500 Frigidaire Oven Cover
NI	316498100 Frigidaire Shield
1	WCI 316219501
2A	316536003 Frigidaire Valve-Top Burner
2B	316536001 Frigidaire Oven Valve
2C	316536000 Frigidaire Top Burner Valve
2	316536002 Frigidaire Valve-Top Burner
3	WCI 316219018
8	SPARK MODULE
10	WCI 316223400
10B	WCI 316212300
10C	316212400 Frigidaire Oven Primary Burner
10A	WCI 316206400
11A	316430801 Frigidaire Igniter and Orifice Assembly
11	316272000 Frigidaire Igniter Holder and Orifice
11B	WCI 316430401
11C	316237805 Frigidaire Orifice Assembly Igniter
11D	316430700 Frigidaire Igniter/Orifice Assembly
13	WCI 316405300
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	5304507348 Frigidaire Oven Tube
17	316404901 Frigidaire Oven Valve
18	316404400 Frigidaire Oven Burner
19	5304534663 Frigidaire Igniter
20	5304519024 Frigidaire Oven Baffle
21	5303013272 Frigidaire Oven Nut
22	5304507768 Frigidaire Oven Tube
23	WCI 316404300
24	5304516894 Frigidaire Oven Elbow
25	WCI 316401301
26	316489401 Frigidaire Igniter Assembly
37	316240600 Frigidaire Igniter Mounting Screw
44B	316237901 Frigidaire Oven Orifice
44	316237900 Frigidaire Oven Orifice Assembly
44C	316237902 Frigidaire Orifice Top Burner
44A	WCI 316237903
47	GRLP3 Frigidaire Oven LP Conversion Kit
