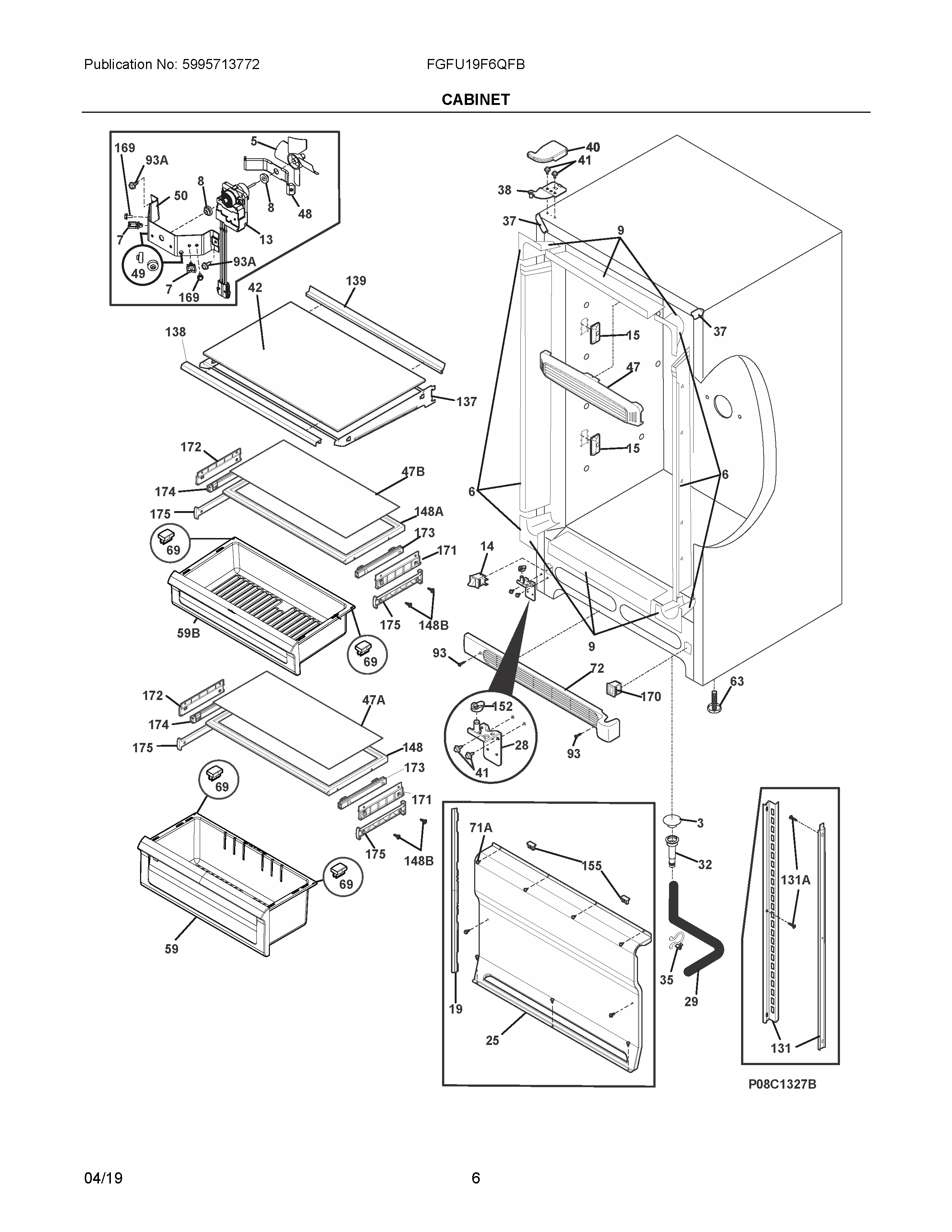

FGFU19F6QFB 03 – CABINET

Products

Position	Product
NI	297048000 Frigidaire Refrigerator Screw
NI	TRIM KIT, BUILT IN, DUAL, COMPLETE, TRIMKITSS2
NI	297436200 Frigidaire Grommet
NI	216337701 Frigidaire Refrigerator Screw
NI	218362501 Frigidaire Refrigerator Screw
NI	297001704 Frigidaire Refrigerator Insulation
NI	216036601 Frigidaire Refrigerator Screw
NIA	Bracket,LH leg levelor
NIB	Bracket,RH leg levelor
NI	WCI 297305500
NI	216858001 Frigidaire Refrigerator Screw
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	297200900 Frigidaire Refrigerator Breaker Kit W/Corne
8	5304495760 Frigidaire Refrigerator Bushing
9	297200100 Frigidaire Refrigerator W/Corner Breaker Kit
13	5304504914 Frigidaire Refrigerator Motor
14	216822900 Frigidaire Refrigerator Switch
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20	5304497788 Frigidaire Refrigerator Controller
25	COVER-EVAPORATOR
28	297302513 Frigidaire Refrigerator Hinge-Lower
29	5304512272 Frigidaire Hose Drain
31	297165800 Frigidaire Refrigerator Drain Pan
32	5304511843 Frigidaire Refrigerator Sleeve
34A	WCI 297053102
34B	297053200 Frigidaire Refrigerator Lens
35	216273000 Frigidaire Refrigerator Strap
37	297273906 Frigidaire Refrigerator Corner Trim Cabinet
38	HINGE-UPPER, LH
40	COVER-HINGE, GRAY, LH
41	240578902 Frigidaire Screw Mounting Hinge
42	297265900 Frigidaire Refrigerator Glass Shelf
47A	297102705 Frigidaire Glass Cover Crisper
47B	297102704 Frigidaire Glass Crisper Cover
47	297192903 Frigidaire Refrigerator Baffle
48	297436400 Frigidaire Refrigerator Bracket-Fan Motor
50	216394050 Frigidaire Refrigerator Bracket
59B	WCI 297269700
59	WCI 297270000
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
69	WCI 297297300
71A	Screw,8-18AB x.470 QX
72	297036907 Frigidaire Refrigerator Grille Kickplate
93A	241853202 Frigidaire Refrigerator Screw
107	297165400 Frigidaire Refrigerator Access Cover
131	297130200 Frigidaire CHANNEL-SHELF MTG
131A	SCREW, TH, 8-18X.470 AB QX, WHITE, (6)
137	297050600 Frigidaire Refrigerator Frame-Shelf
138	WCI 297261400
139	WCI 297261500
148	WCI 297271703
148B	297142600 Frigidaire Refrigerator/Freezer Screw
148A	WCI 297271704
152	BEARING-HINGE
155	WCI 5303313703
169	216912401 Frigidaire Refrigerator Screw
170	297280403 Frigidaire Refrigerator Valve
171	297092700 Frigidaire Refrigerator Bracket
172	297092701 Frigidaire Refrigerator Bracket
173	5304517648 Frigidaire Refrigerator Basket-Slide
174	5304517649 Frigidaire Refrigerator Basket-Slide
175	297099500 Frigidaire Refrigerator Support
