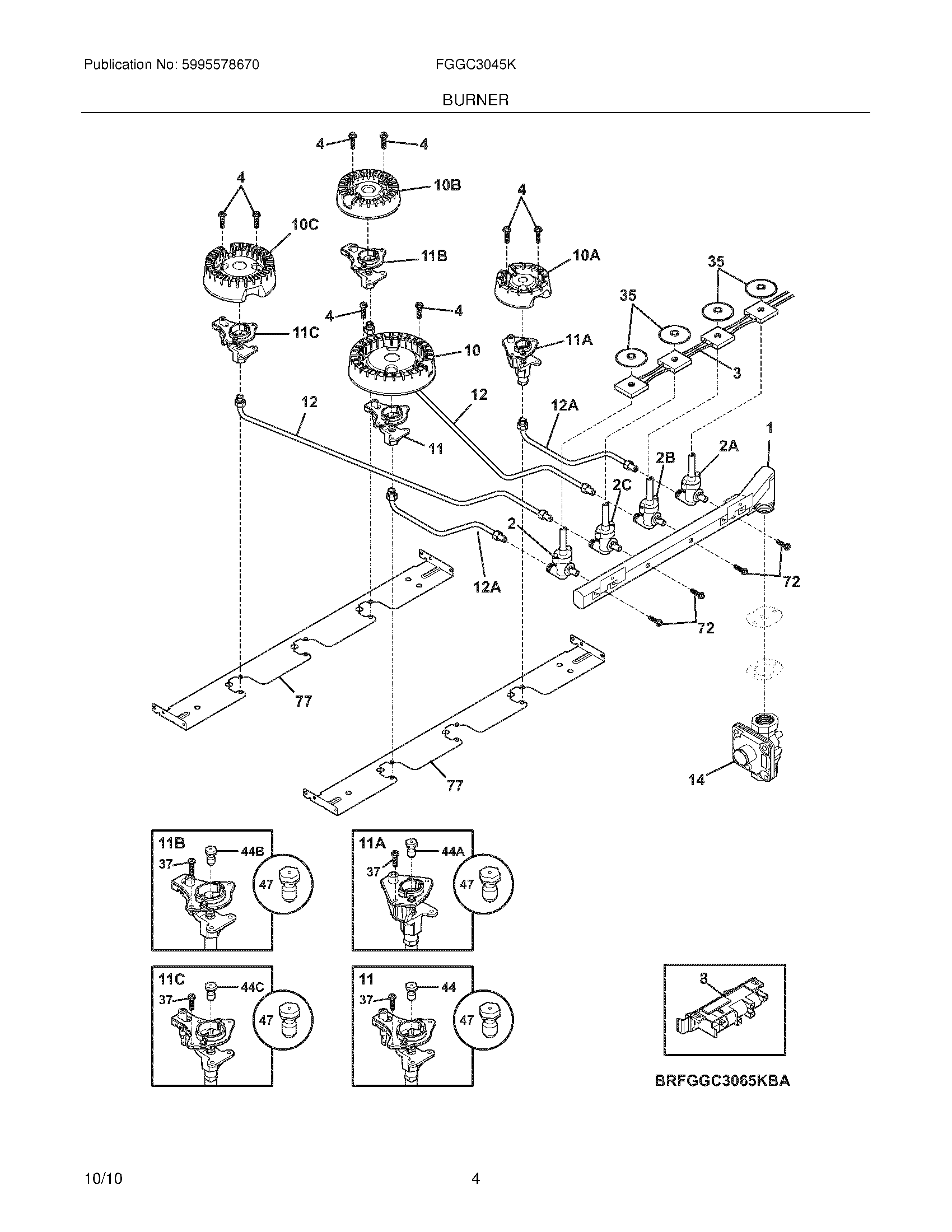

FGGC3045KWB 05 – BURNER

FGGC3045KWB 05 – BURNER

Written by

in

FGGC3045KWB 05 – BURNER

Products

PositionProduct
NI5300803416 Frigidaire Dishwasher Screw
NI5303323140 Frigidaire Oven Screw
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 318024210
NIWCI 318199779
NIWCI 318024201
NI5304480396 Frigidaire Screw
1WCI 318177012
2BWCI 318233910
2A318233900 Frigidaire Oven Valve
2WCI 318233940
2CWCI 318233920
3318232645 Frigidaire Wiring Harness
4316240600 Frigidaire Igniter Mounting Screw
85304505695 Frigidaire Oven Module
10C316438000 Frigidaire Sealed Burner 12K Assembly
10316438400 Frigidaire Range Sealed Burner, 16/17K
10A316438200 Frigidaire Range Sealed Burner, 5K
10B316558300 Frigidaire Oven 9.5L Sealed Burner
11C316540702 Frigidaire Igniter/Orifice Assembly
11316543203 Frigidaire Igniter Orifice Assembly
11A316540800 Frigidaire Igniter/Orifice Assembly
11B316540700 Frigidaire Igniter/Orifice Assembly
12TUBE, BURNER, LF & LR, (2)
12AWCI 318560702
14WCI 318122712
35WCI 318146301
375303323130 Frigidaire Oven Screw
44B316527500 Frigidaire Oven Burner Orifice
44A316527504 Frigidaire Oven Orifice
44316527509 Frigidaire Oven 18.2K Burner Orifice
44C316527502 Frigidaire Oven Orifice
47CONVERSION KIT, LP
72316215600 Frigidaire Oven Screw
77WCI 318564100
