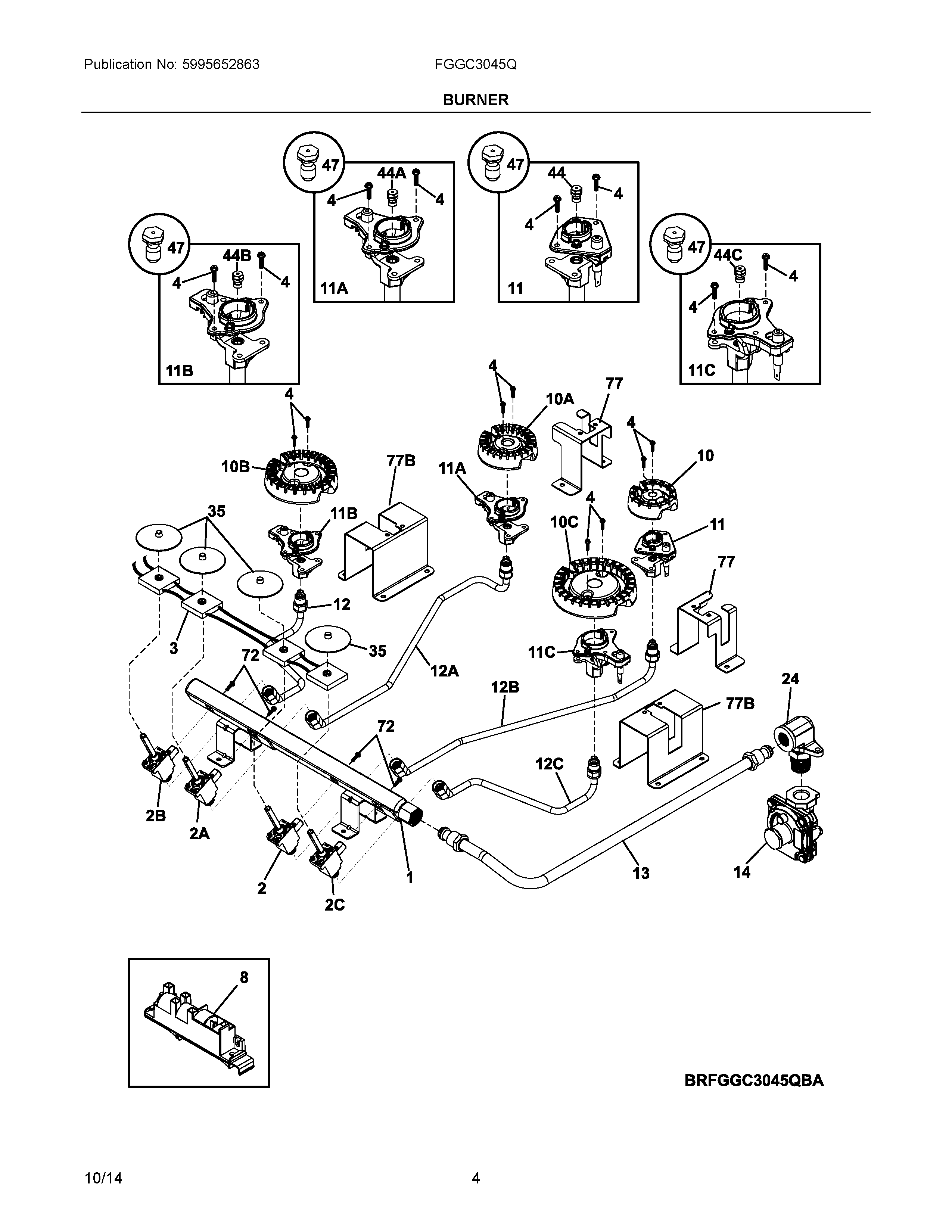

FGGC3045QBA 03 – BURNER

FGGC3045QBA 03 – BURNER

Written by

in

FGGC3045QBA 03 – BURNER

Products

PositionProduct
NI305309701 Frigidaire Oven Screw
NIAWCI 318199779
NI305338602 Frigidaire Screw
1WCI 5304498785
2C316560902 Frigidaire Oven Valve
2A316536000 Frigidaire Top Burner Valve
2B316536001 Frigidaire Oven Valve
2WCI 316536009
35304527982 Frigidaire Switch Assembly
4316240600 Frigidaire Igniter Mounting Screw
85304505695 Frigidaire Oven Module
10C316438400 Frigidaire Range Sealed Burner, 16/17K
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
11CWCI 5304499339
12B5304499343 Frigidaire Tube
12C5304499342 Frigidaire Oven Tube
125304499340 Frigidaire Tube Assembly
12ATUBE, BURNER, LH REAR
13WCI 5304498793
145304519943 Frigidaire Regulator
24318054010 Frigidaire Oven Elbow
35807164301 Frigidaire Oven Bushing
44B5304498788 Frigidaire Igniter/Orifice Assembly
44A5304498787 Frigidaire Igniter Assembly/Orifice
445304498786 Frigidaire Igniter/Orifice Assembly
47GRLP4 Frigidaire Oven LP Conversion Kit
72316215600 Frigidaire Oven Screw
77B5304498888 Frigidaire Bracket
77BRACKET, IGNITOR/ORIFICE, MOUNTING
