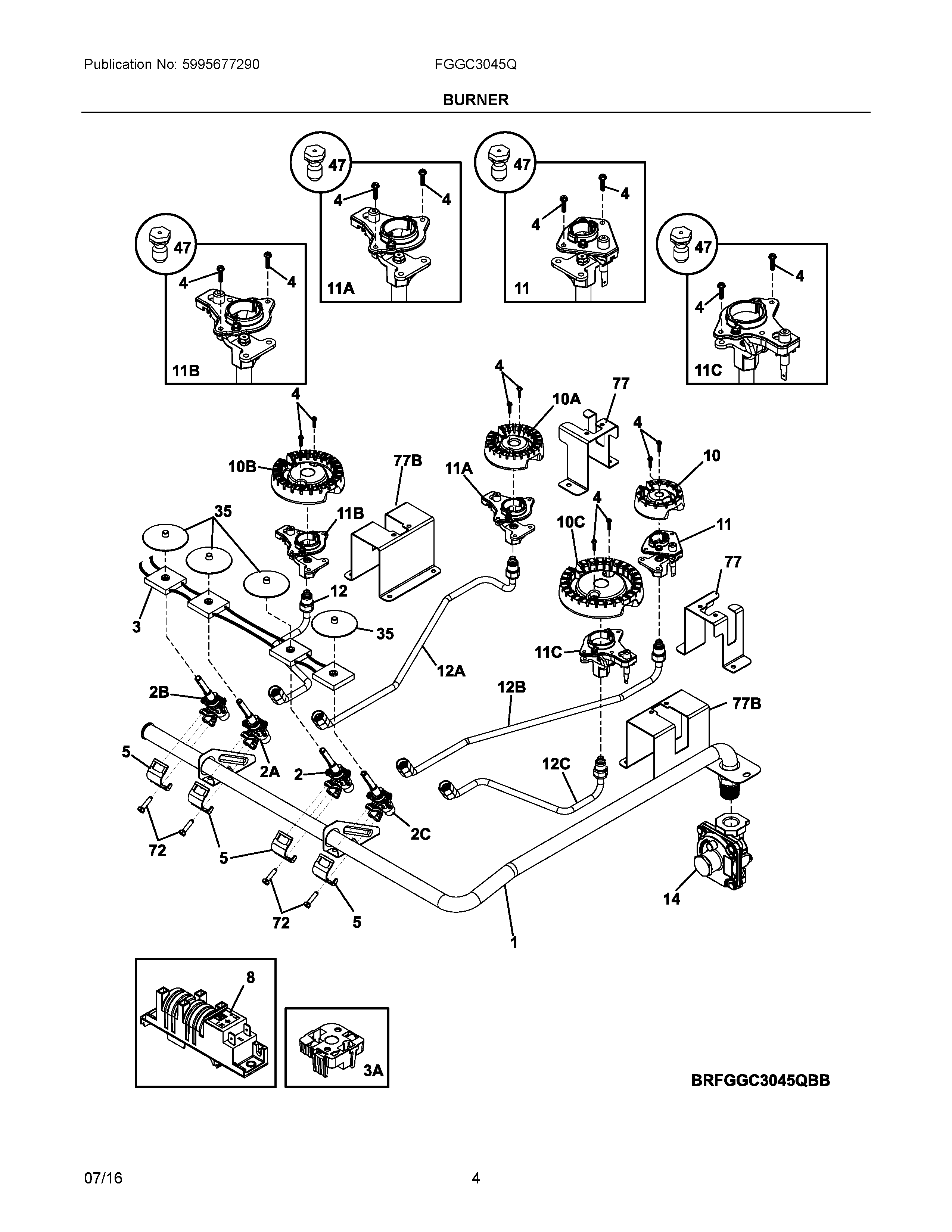

FGGC3045QBB 03 – BURNER

FGGC3045QBB 03 – BURNER

Written by

in

FGGC3045QBB 03 – BURNER

Products

PositionProduct
NIAWCI 318199779
NI316566901 Frigidaire Oven Sleeve
NI305338602 Frigidaire Screw
NI305309701 Frigidaire Oven Screw
1WCI 5304505688
2C5304505692 Frigidaire Oven Valve
2B5304505691 Frigidaire Oven Valve
2A5304505690 Frigidaire Oven Valve
25304505693 Frigidaire Oven Surface Burner Valve
35304527982 Frigidaire Switch Assembly
3A5304505694 Frigidaire Oven Adapter
4316240600 Frigidaire Igniter Mounting Screw
5357733402 Frigidaire Oven Bracket
85304505695 Frigidaire Oven Module
10C316438400 Frigidaire Range Sealed Burner, 16/17K
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
11CWCI 5304499339
11B5304498788 Frigidaire Igniter/Orifice Assembly
11A5304498787 Frigidaire Igniter Assembly/Orifice
115304498786 Frigidaire Igniter/Orifice Assembly
12ATUBE, BURNER, LH REAR
12C5304499342 Frigidaire Oven Tube
12B5304499343 Frigidaire Tube
125304499340 Frigidaire Tube Assembly
145304519943 Frigidaire Regulator
35807164301 Frigidaire Oven Bushing
47GRLP4 Frigidaire Oven LP Conversion Kit
72305517500 Frigidaire Screw
77B5304498888 Frigidaire Bracket
77BRACKET, IGNITOR/ORIFICE, MOUNTING
