FGGC3045QSE 02 – COOK TOP

FGGC3045QSE 02 – COOK TOP

Written by

in

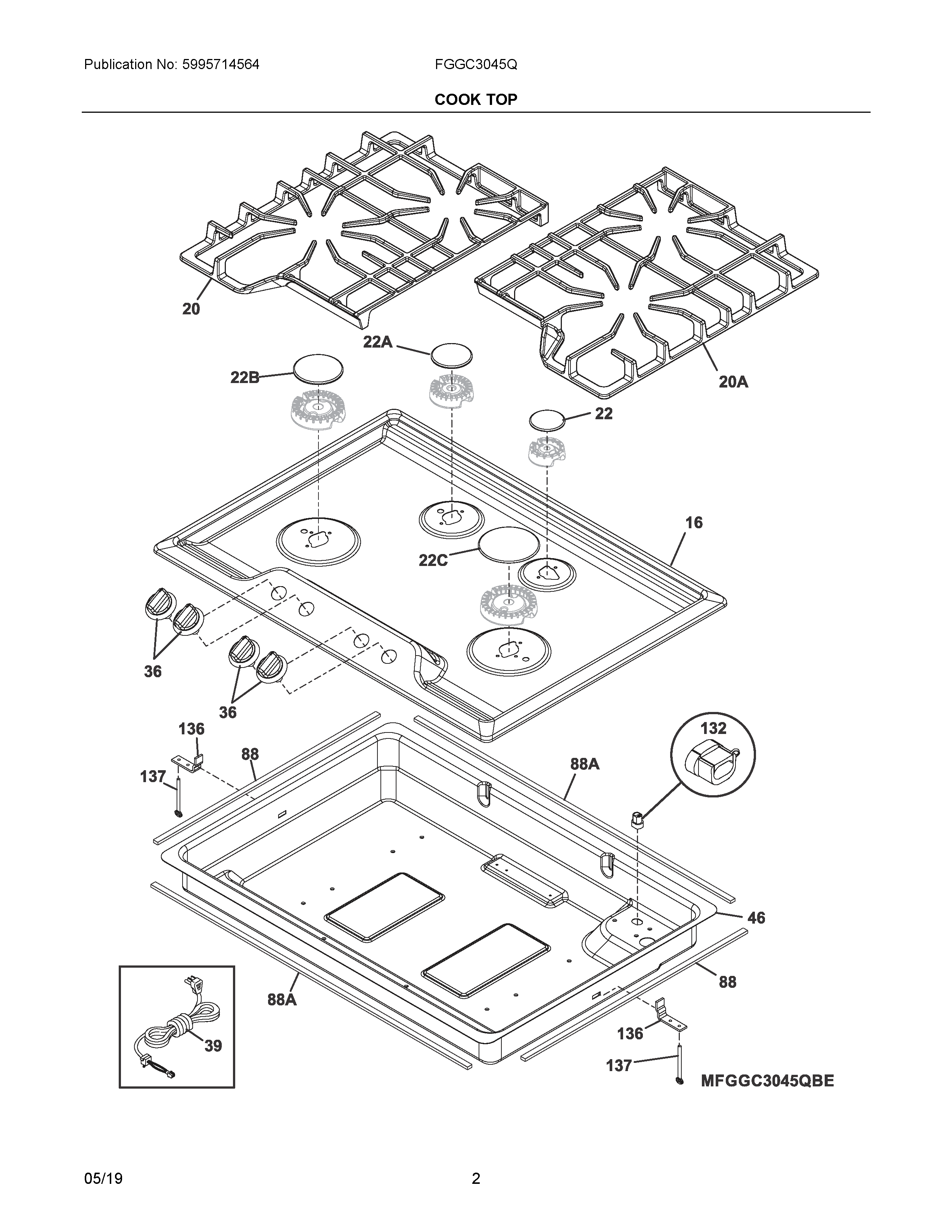

FGGC3045QSE 02 – COOK TOP

Products

PositionProduct
NI305338601 Frigidaire Screw
NIA305452800 Frigidaire Screw
NIA316574603 Frigidaire Oven FOIL
NIWCI 318163602
16809218102 Frigidaire Oven Main Top
20A5304499334 Frigidaire Oven Grate
205304499333 Frigidaire Oven Grate
22A5304508442 Frigidaire Oven Surface Burner Cap
22B5304508443 Frigidaire Oven Surface Burner Cap
22CAP
22C5304508468 Frigidaire Oven Cap
365304499336 Frigidaire Oven Knob
39305574902 Frigidaire Power Cord
46BURNER BOX
88GASKET, MAINTOP, FOAM TAPE, SIDE
88AGASKET, MAINTOP, FOAM TAPE, FRONT/REAR
1325304513507 Frigidaire Bushing Assembly
136318264301 Frigidaire Oven Support
137305452400 Frigidaire Oven Screw
