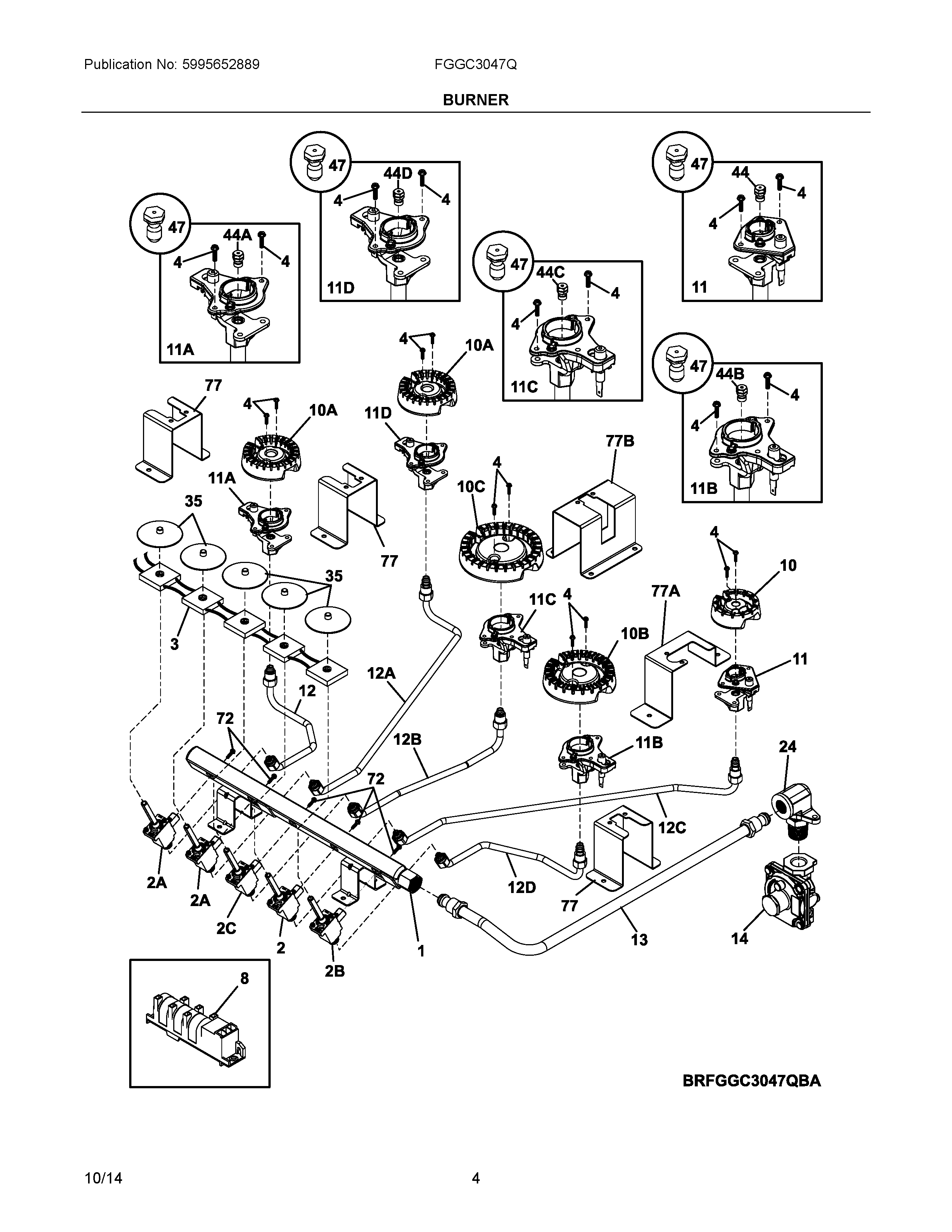

FGGC3047QSA 03 – BURNER

Products

PositionProduct
NI305309701 Frigidaire Oven Screw
NIAWCI 318199780
NI305338602 Frigidaire Screw
1WCI 5304498880
2A316536000 Frigidaire Top Burner Valve
2B316536001 Frigidaire Oven Valve
2WCI 316536009
2C316560902 Frigidaire Oven Valve
3305595107 Frigidaire Assembly Switch
4316240600 Frigidaire Igniter Mounting Screw
8SPARK MODULE
10C316438400 Frigidaire Range Sealed Burner, 16/17K
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
11DWCI 5304499396
11CWCI 5304499339
125304532159 Frigidaire Tube
12B5304529984 Frigidaire Tube
12D5304521187 Frigidaire Oven Tube
12C5304531763 Frigidaire Tube
12A5304532033 Frigidaire Tube
13WCI 5304498793
145304519943 Frigidaire Regulator
24318054010 Frigidaire Oven Elbow
35807164301 Frigidaire Oven Bushing
44B5304498788 Frigidaire Igniter/Orifice Assembly
44C5304498815 Frigidaire Assembly Igniter/Orifice
44A5304498787 Frigidaire Igniter Assembly/Orifice
445304498786 Frigidaire Igniter/Orifice Assembly
44DWCI 5304499401
475304505703 Frigidaire Lp Conversion Kit
72316215600 Frigidaire Oven Screw
77B5304498888 Frigidaire Bracket
77A5304523447 Frigidaire Bracket
775304498799 Frigidaire Bracket
