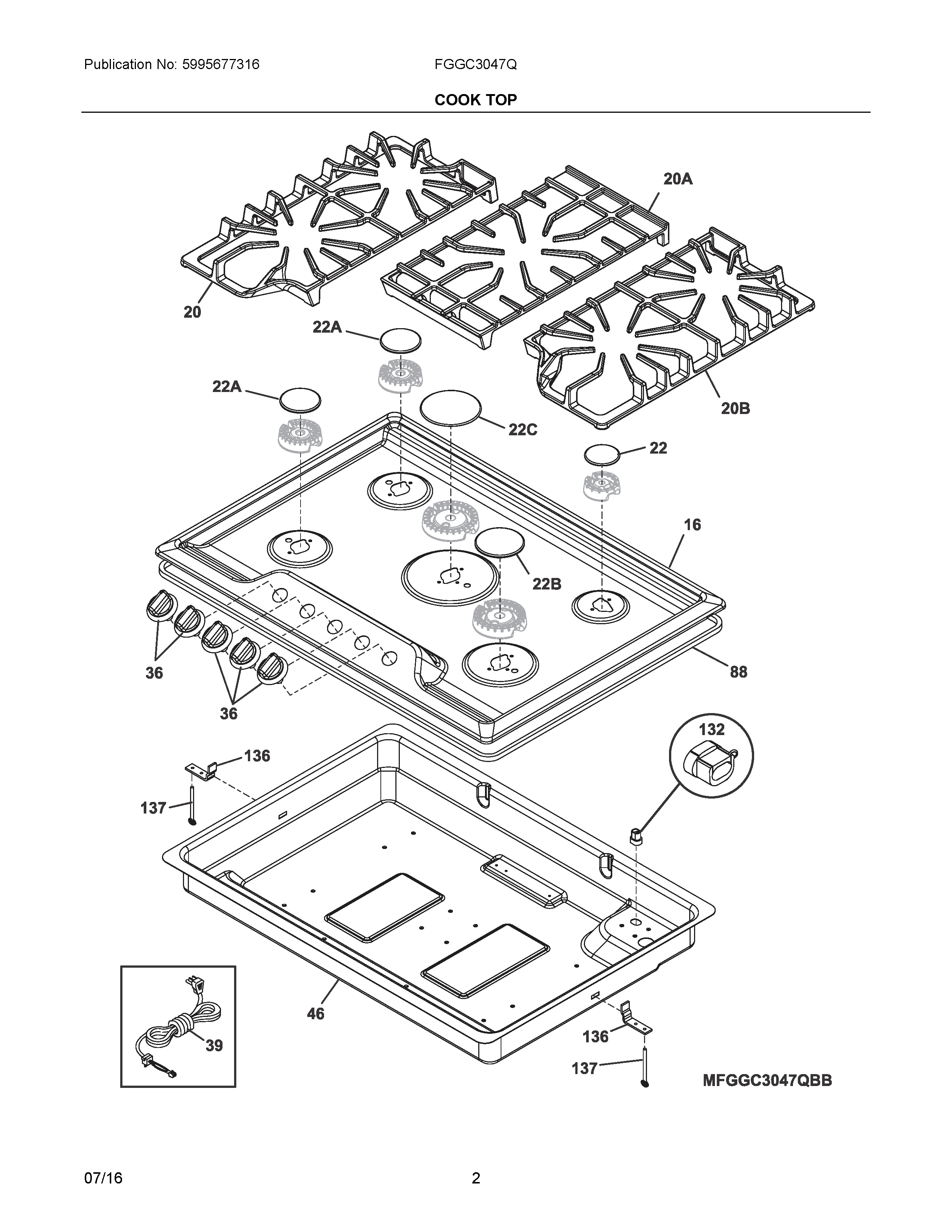

FGGC3047QWB 02 – COOK TOP

FGGC3047QWB 02 – COOK TOP

Written by

in

FGGC3047QWB 02 – COOK TOP

Products

PositionProduct
NIINSULATION, COOK TOP
NIA305452800 Frigidaire Screw
NI305338601 Frigidaire Screw
16809218210 Frigidaire Oven Main Top
205304499392 Frigidaire Oven Grate
20A5304499393 Frigidaire Oven Grate
20B5304499394 Frigidaire Oven Grate
22C5304508468 Frigidaire Oven Cap
22B5304508443 Frigidaire Oven Surface Burner Cap
22CAP
22A5304508442 Frigidaire Oven Surface Burner Cap
365304499337 Frigidaire Oven Knob
39305574902 Frigidaire Power Cord
465304499395 Frigidaire Burner Box
885304498810 Frigidaire Oven Gasket
1325304513507 Frigidaire Bushing Assembly
136318264301 Frigidaire Oven Support
137305452400 Frigidaire Oven Screw
